6625-00-929-6680 An instrument which is arranged to measure two or more different electrical quantities (such as volts, amps, and ohms) by means of associated circuits and switches. The value is usually expressed on a single calibrated dial or digital readout display. For items which are connected into a circuit and used chiefly to visually monitor an operation, see METER, MULTIPLE SCALE. See also COUNTER, ELECTRONIC, DIGITAL READOUT. Excludes BRIDGE (as modified).

Part Alternates: 112781, 11278-1, 11278-1 09017, 11278109017, 231S, 231-S, 6625-00-929-6680, 00-929-6680, 6625009296680, 009296680

Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments

Supply Group (FSG) NSN Assign. NIIN
66 07 SEP 1966 00-929-6680

Drawings & Photos | NSN 6625-00-929-6680


Cross Reference | NSN 6625-00-929-6680

Part Number Cage Code Manufacturer
11278-1 09017 EDO
11278-1 94117 BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
11278-1 09017 09017 EDO
231-S 60741 TRIPLETT BLUFFTON CORPORATION DBA LFE INSTRUMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6625-00-929-6680

Technical Data | NSN 6625-00-929-6680

Characteristic Specifications
INSTALLATION DESIGN PANEL
ACCURACY IN PERCENT -2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR ALL RANGES
DIAL SCALE MARKING COLOR BLACK SINGLE INDICATOR ALL RANGES
BACKGROUND COLOR WHITE SINGLE INDICATOR ALL RANGES
MOVEMENT TYPE MOVING IRON VANE
MOVEMENT SUSPENSION METHOD JEWEL PIVOT BASE
CIRCUIT ATTACHMENT METHOD AND QUANTITY 2 THREADED STUD
SCALE SELECTION METHOD SWITCH
STYLE DESIGNATOR C1 ROUND FLUSH MTG
METER BODY DIAMETER BEHIND MOUNTING FLANGE 2.210 INCHES NOMINAL
METER DEPTH BEHIND MOUNTING FLANGE 1.312 INCHES NOMINAL
OVERALL DIAMETER 2.690 INCHES NOMINAL
OVERALL LENGTH 2.740 INCHES NOMINAL
MOUNTING FACILITY TYPE AND QUANTITY 3 UNTHREADED HOLE
MOUNTING HOLE DIAMETER 0.125 INCHES NOMINAL

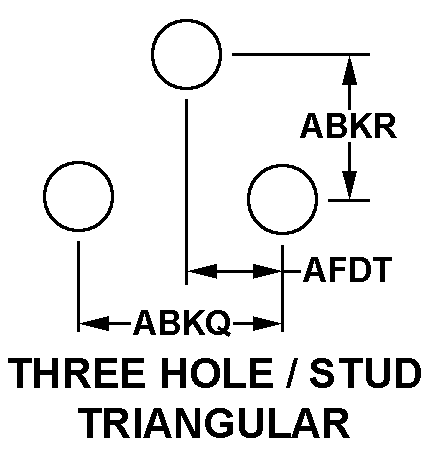

MOUNTING ARRANGEMENT STYLE E2 THREE HOLE/STUD TRIANGULAR
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH 2.440 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH 2.440 INCHES NOMINAL
SHORTEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS 1.220 INCHES NOMINAL
MATERIAL PLASTIC PHENOLIC
FURNISHED ITEMS AND QUANTITY MOUNTING HARDWARE 3

Restrictions/Controls & Freight Information | NSN 6625-00-929-6680

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 136740 METERS ELEC/PARTS SUB1
Less than car load rating
Less than truck load rating J 100.2
Water commodity Code 657 unknown
Originating Activity Code SE San Antonio Air Logistics Center
Kelly AFB, TX 78241-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling Q Extremely fragile items including delicate instruments.
Special Handling Code Q unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6625-00-929-6680

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
