NSN 6625-00-882-5045 1128SCSEA7551, 1128SCSEA755-1, 265697
Product Details | VOLTMETER
6625-00-882-5045 An instrument which measures electrical potential and is calibrated in volts or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display.
Part Alternates: 1128SCSEA7551, 1128SCSEA755-1, 265697, 265-697, 624E67, 6625-00-882-5045, 00-882-5045, 6625008825045, 008825045
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 26 APR 1972 | 00-882-5045 | 16449 ( VOLTMETER ) |
Drawings & Photos | NSN 6625-00-882-5045
Demand History | NSN 6625-00-882-5045
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-00-882-5045 | 2012-04-106 | 1 | DIBBS |
| 6625-00-882-5045 | 2012-04-100 | 1 | United States |
| 6625-00-882-5045 | 2011-08-222 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-00-882-5045
Related Products | NSN 6625-00-882-5045
Technical Data | NSN 6625-00-882-5045
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | MAGNETIC OR NONMAGNETIC |
| (NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE | NONELECTRONIC |

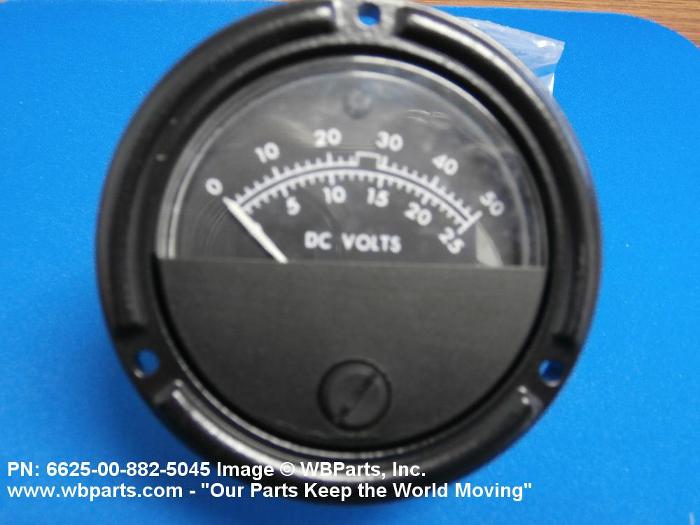

| INDICATOR TYPE | DIAL W/POINTER |
| MEASUREMENT RANGE | 0.0 TO 25.0 VOLTS, DC SINGLE INDICATOR 1ST RANGE 0.0 TO 50.0 VOLTS, DC SINGLE INDICATOR 2ND RANGE |
| ACCURACY IN PERCENT | -2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR ALL RANGES |
| SCALE GRADUATION TYPE | NONLINEAR SINGLE INDICATOR ALL RANGES |
| POINTER COLOR | BLACK SINGLE INDICATOR ALL RANGES |
| DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR ALL RANGES |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR ALL RANGES |
| MOVEMENT TYPE | MOVING COIL, PERMANENT MAGNET |
| MOVEMENT SUSPENSION METHOD | JEWEL PIVOT BASE |

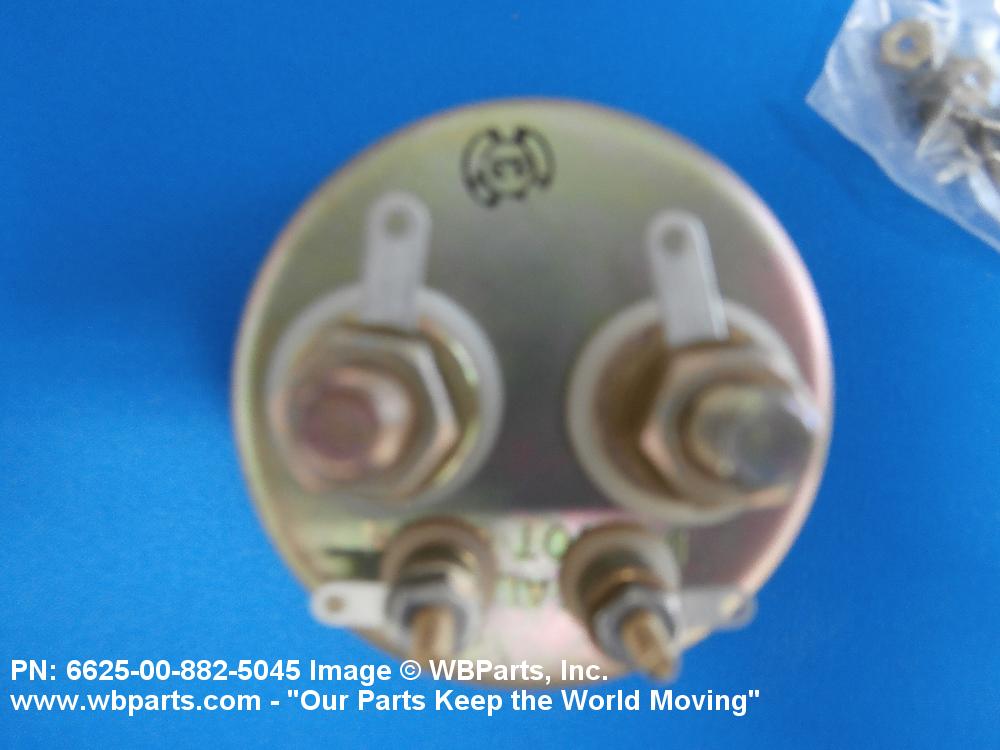

| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 4 SOLDER STUD |
| SCALE SELECTION METHOD | TERMINAL |
| POWER SOURCE | EXTERNAL |
| CIRCUIT CURRENT FOR WHICH DESIGNED | DC |
| STYLE DESIGNATOR | C1 ROUND FLUSH MTG |
| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 2.150 INCHES MAXIMUM |
| METER DEPTH BEHIND MOUNTING FLANGE | 1.170 INCHES MAXIMUM |
| OVERALL DIAMETER | 2.695 INCHES MAXIMUM |
| OVERALL LENGTH | 2.030 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 SCREW AND 3 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.120 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |
| MOUNTING ARRANGEMENT STYLE | E5 THREE HOLE/STUD BOLT CIRCLE |
| MOUNTING BOLT CIRCLE DIAMETER | 2.440 INCHES MAXIMUM |
| MATERIAL | STEEL |
| SURFACE TREATMENT | CHROMATE AND ENAMEL SEMIGLOSS |
| NUCLEAR HARDNESS CRITICAL FEATURE | NONHARDENED |
| ENVIRONMENTAL PROTECTION | SHOCK RESISTANT AND VIBRATION RESISTANT |
| FEATURES PROVIDED | MAGNETIC SHIELD AND ZERO ADJUSTER |
| SPECIAL FEATURES | RUGGEDIZED |
