NSN 6625-00-726-8739 1511, 34321003P1ISSUE1, 3432-1003P1ISSUE1
Product Details | AMMETER
6625-00-726-8739 An instrument which measures electric current and is calibrated and marked in amperes or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display. For current detecting type of devices, see GALVANOMETER.
Part Alternates: 1511, 34321003P1ISSUE1, 3432-1003P1ISSUE1, 4917047, 49-17047, 6625-00-726-8739, 00-726-8739, 6625007268739, 007268739
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-726-8739 | 16450 ( AMMETER ) |
Drawings & Photos | NSN 6625-00-726-8739
Cross Reference | NSN 6625-00-726-8739
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6625-00-726-8739
Technical Data | NSN 6625-00-726-8739
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| MEASUREMENT RANGE | 0.0 TO 100.0 MICROAMPERES, DC SINGLE INDICATOR SINGLE RANGE |
| ACCURACY IN PERCENT | -3.0 TO 3.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE |
| SCALE DIVISION QUANTITY | 10 SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| MOVEMENT TYPE | MOVING COIL, PERMANENT MAGNET |
| MOVEMENT SUSPENSION METHOD | JEWEL PIVOT BASE |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 SOLDER LUG |
| SENSITIVITY RATING | 1.0 MILLIVOLTS |
| CIRCUIT CURRENT FOR WHICH DESIGNED | DC |

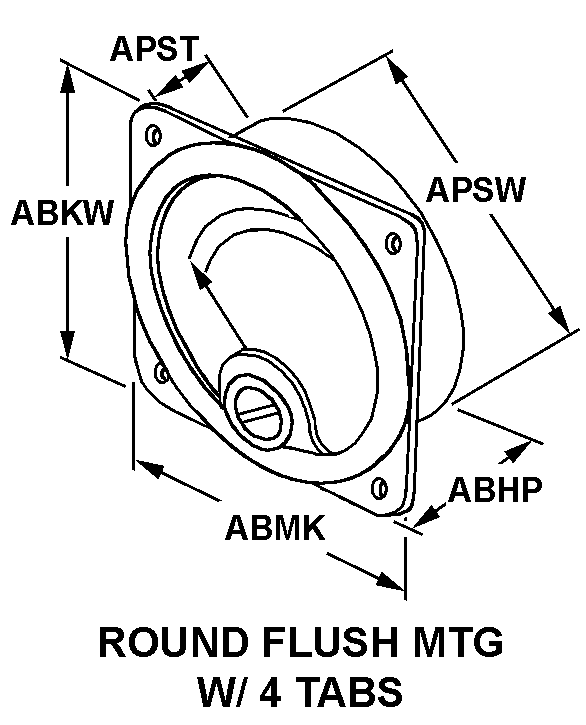

| STYLE DESIGNATOR | C4 ROUND FLUSH MTG W/4 TABS |
| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 1.500 INCHES NOMINAL |
| METER DEPTH BEHIND MOUNTING FLANGE | 1.000 INCHES NOMINAL |
| OVERALL HEIGHT | 1.750 INCHES NOMINAL |
| OVERALL WIDTH | 1.750 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.112 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | E3 FOUR HOLE/STUD RECTANGULAR/SQUARE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.312 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.312 INCHES NOMINAL |
| FEATURES PROVIDED | MAGNETIC SHIELD |
| MANUFACTURERS CODE | 32242 |
| DESIGN CONTROL REFERENCE | 49-17047 |
