NSN 6625-00-684-5438 TS-585D/U, TS585DU, 00-684-5438
Product Details | WATTMETER
6625-00-684-5438 An instrument which measures one or more different electrical power quantities (such as decibels and watts), and is calibrated using watts. The power measurement and/or calibration may be displayed in multiples and/or submultiples thereof on a dial and/or digital readout display. For items designed to measure radio frequency power see TEST SET, ELECTRICAL POWER and METER, MULTIPLE SCALE. Excludes: AMMETER; FREQUENCY METER; MULTIMETER; VOLTMETER.
Part Alternates: TS-585D/U, TS585DU, 6625-00-684-5438, 00-684-5438, 6625006845438, 006845438
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-684-5438 | 28455 ( WATTMETER ) |

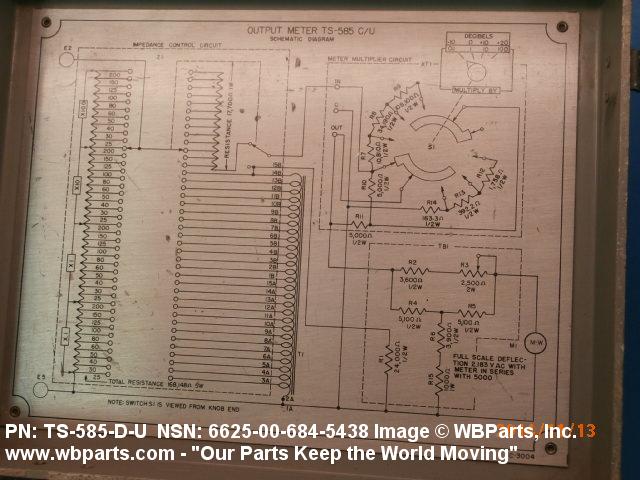

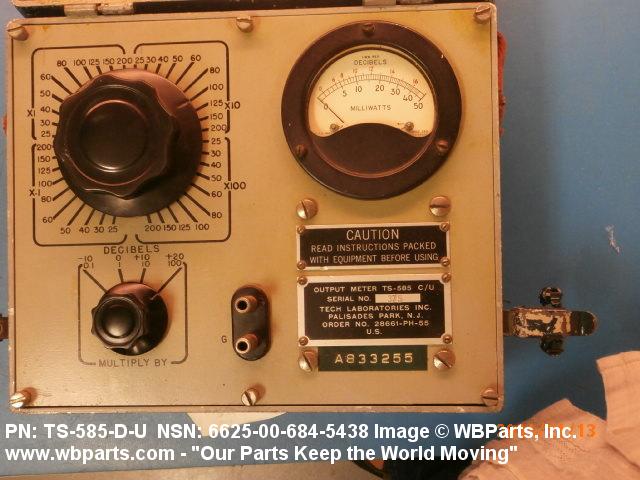

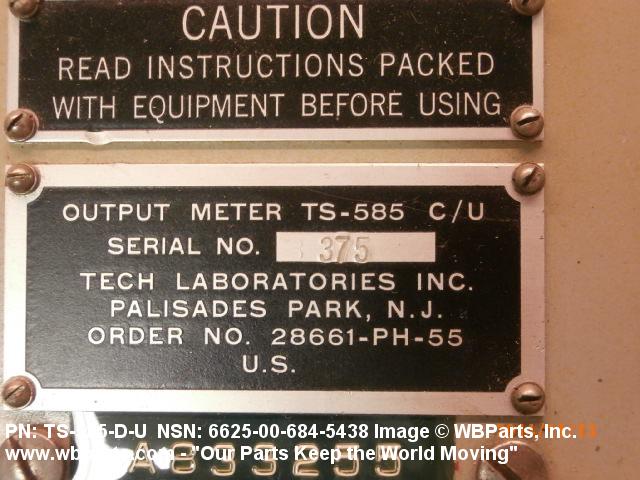

Drawings & Photos | NSN 6625-00-684-5438
Demand History | NSN 6625-00-684-5438
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-00-684-5438 | 2014-10-303 | 1 | United States |
Cross Reference | NSN 6625-00-684-5438
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TS-585D/U | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-00-684-5438
Related Products | NSN 6625-00-684-5438
Technical Data | NSN 6625-00-684-5438
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | BENCH |
| (NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE | ELECTRONIC, SOLID STATE |

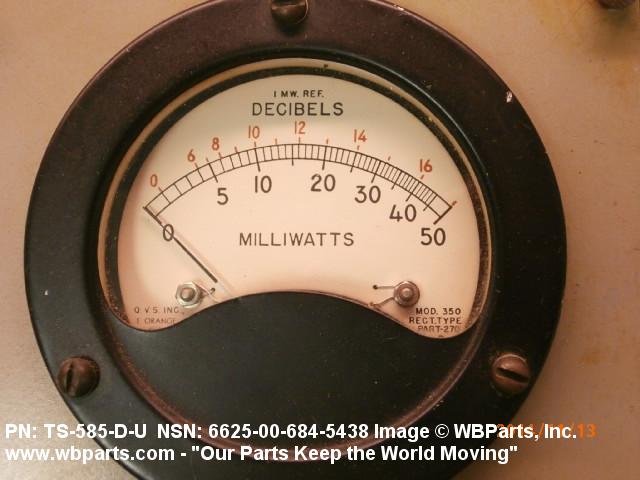

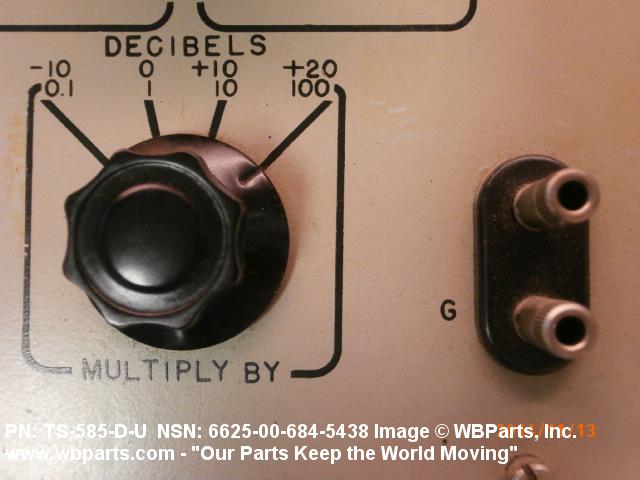

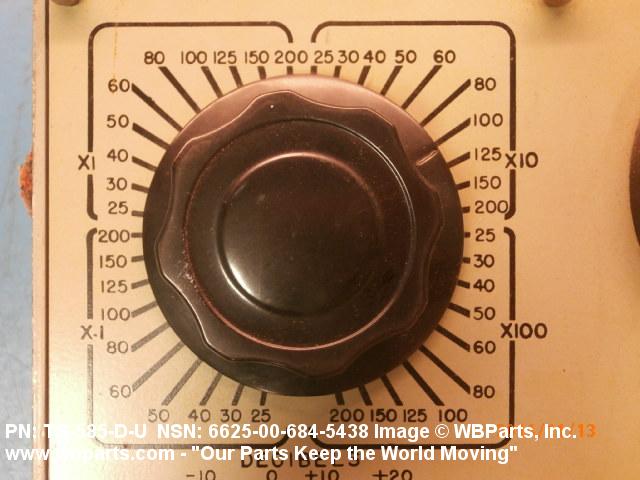

| INDICATOR TYPE | DIAL W/POINTER |
| MEASUREMENT RANGE | 0.0 TO 17.0 DECIBELS SINGLE INDICATOR 1ST RANGE 0.0 TO 50.0 MILLIWATTS SINGLE INDICATOR 2ND RANGE |
| ACCURACY IN PERCENT | -5.0 TO 5.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | BLACK AND RED SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 BINDING POST |
| SCALE SELECTION METHOD | SWITCH |
| CIRCUIT CURRENT FOR WHICH DESIGNED | AC |
| STYLE DESIGNATOR | D1 RECTANGULAR OR SQUARE |
| OVERALL HEIGHT | 11.000 INCHES NOMINAL |
| OVERALL LENGTH | 5.500 INCHES NOMINAL |
| OVERALL WIDTH | 8.500 INCHES NOMINAL |
| FEATURES PROVIDED | PORTABLE AND ZERO ADJUSTER |
| III REFERENCE DATA AND LITERATURE | 33A1-7-23-1 |
