Product Details | ARBITRARY SCALE METER
6625-00-684-1190 An electrically operated instrument which has a marked scale or digital readout display, but the unit of measurement is not given. May indicate electrical or nonelectrical effects but is primarily not a current detecting device; therefore, excludes GALVANOMETER. For instruments whose unit of measurement is not covered by a more specific item, see METER, SPECIAL SCALE.
Part Alternates: 5578161, 557816-1, 6625-00-684-1190, 00-684-1190, 6625006841190, 006841190
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-684-1190 | 16476 ( METER, ARBITRARY SCALE ) |
Drawings & Photos | NSN 6625-00-684-1190
Cross Reference | NSN 6625-00-684-1190
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 557816-1 | 37695 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-00-684-1190
Related Products | NSN 6625-00-684-1190
Technical Data | NSN 6625-00-684-1190
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | NONMAGNETIC |
| DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| MOVEMENT TYPE | MOVING COIL, PERMANENT MAGNET |
| MOVEMENT SUSPENSION METHOD | JEWEL PIVOT BASE |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 SOLDERLESS LUG |
| CIRCUIT CURRENT FOR WHICH DESIGNED | DC |
| STYLE DESIGNATOR | C2 RECTANGULAR FLUSH MTG |
| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 0.960 INCHES NOMINAL |
| METER DEPTH BEHIND MOUNTING FLANGE | 0.850 INCHES NOMINAL |
| OVERALL HEIGHT | 1.125 INCHES NOMINAL |
| OVERALL WIDTH | 1.125 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 SLOTTED HOLE |
| MOUNTING SLOT LENGTH | 0.096 INCHES NOMINAL |

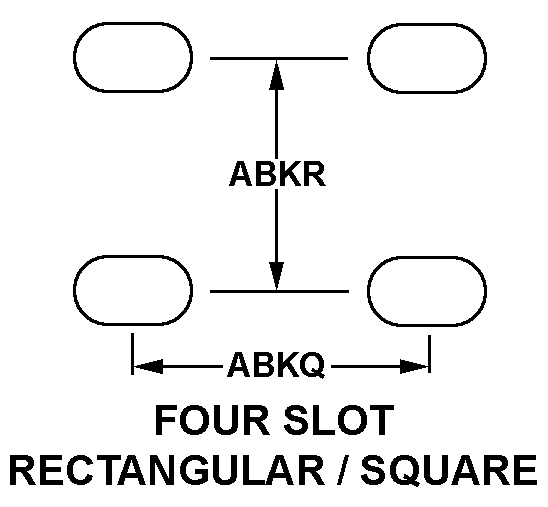

| MOUNTING ARRANGEMENT STYLE | E9 FOUR SLOT RECTANGULAR/SQUARE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.875 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.875 INCHES NOMINAL |
| NUCLEAR HARDNESS CRITICAL FEATURE | NONHARDENED |
| SPECIAL MARKINGS | WITH RECTANGULAR BLOCK |
| III SUPPLEMENTARY FEATURES | ITEM POSSESS AN OPERATING TEMPERATURE OF MINUS 40 DEGREE CELCIUS TO PLUS 71 DEGREE CELCIUS |
