NSN 6625-00-649-4086 MR26W005DCAAR, MILM10304, MIL-M-10304/5
Product Details | AMMETER
6625-00-649-4086 An instrument which measures electric current and is calibrated and marked in amperes or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display. For current detecting type of devices, see GALVANOMETER.
Part Alternates: MR26W005DCAAR, MILM10304, MIL-M-10304/5, MILM103045, MIL-PRF-10304/5, MILPRF103045, 15212102005, 1521-2102005, 2R5A, 7949028, 877344, 6625-00-649-4086, 00-649-4086, 6625006494086, 006494086
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-649-4086 | 16450 ( AMMETER ) |

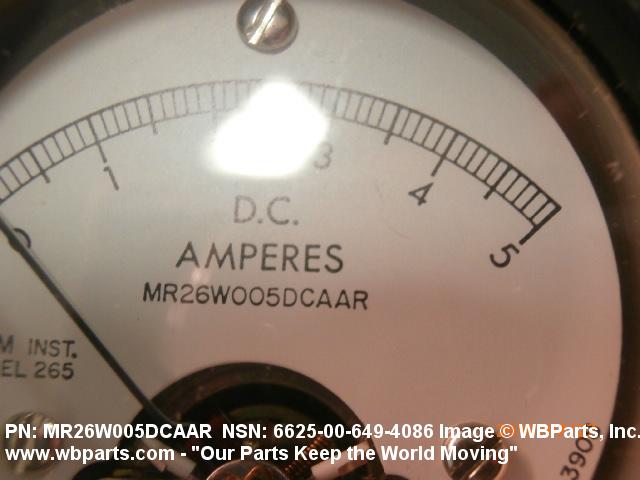

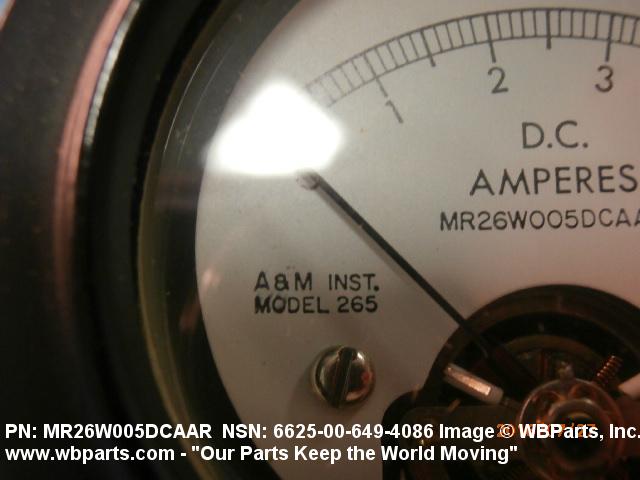

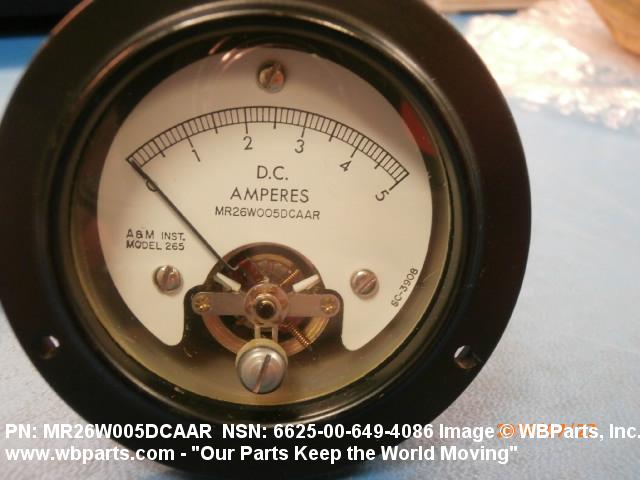

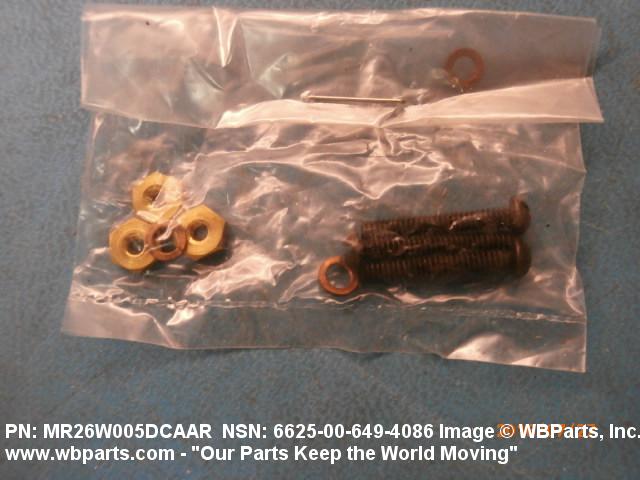

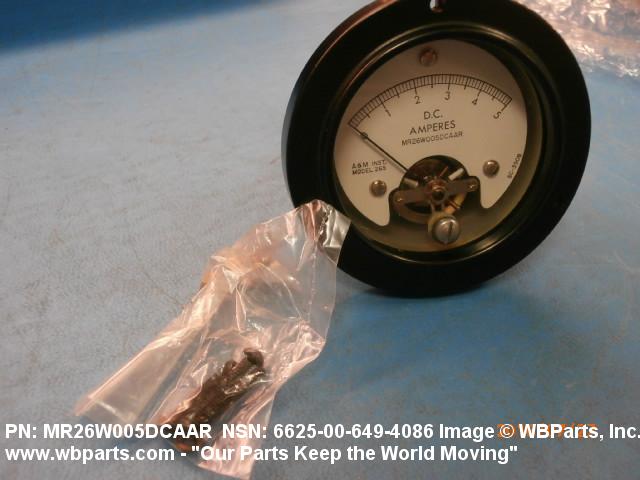

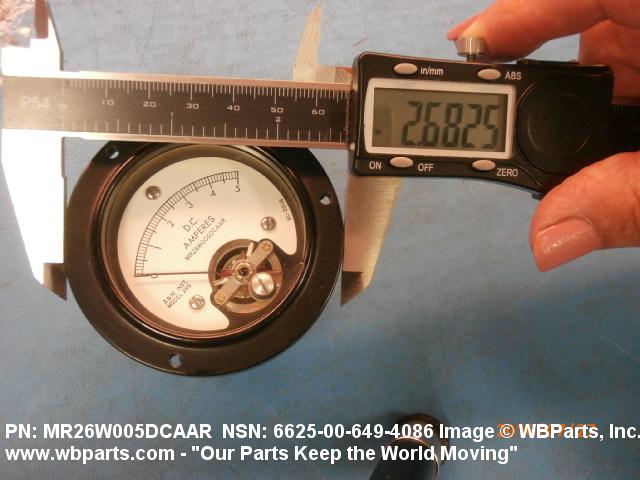

Drawings & Photos | NSN 6625-00-649-4086
Demand History | NSN 6625-00-649-4086
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-00-649-4086 | 2016-07-203 | 1 | United States |
| MILPRF103045 | 2008-08-217 | 4 | US |
Cross Reference | NSN 6625-00-649-4086
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1521-2102005 | 65092 | SOLARTRON ELECTRONICS INC WESTON INSTRUMENTS DIV |
| 2R5A | 63300 | AMERICAN INSTRUMENT CORP |
| 2R5A | 82386 | JAIDINGER MFG. CO., INC. DBA JAICO PRODUCTS |
| 7949028 | 24617 | GENERAL MOTORS CORP |
| 7949028 | 99974 | DELCO ELECTRONICS CORP DELCO SYSTEMS OPNS |
| 877344 | 19203 | PICATINNY ARSENAL |
| MIL-M-10304/5 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-10304/5 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILM10304 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MR26W005DCAAR | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6625-00-649-4086
Technical Data | NSN 6625-00-649-4086
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| ACCURACY IN PERCENT | -2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| MOVEMENT TYPE | MOVING COIL, PERMANENT MAGNET |
| MOVEMENT SUSPENSION METHOD | JEWEL PIVOT BASE |

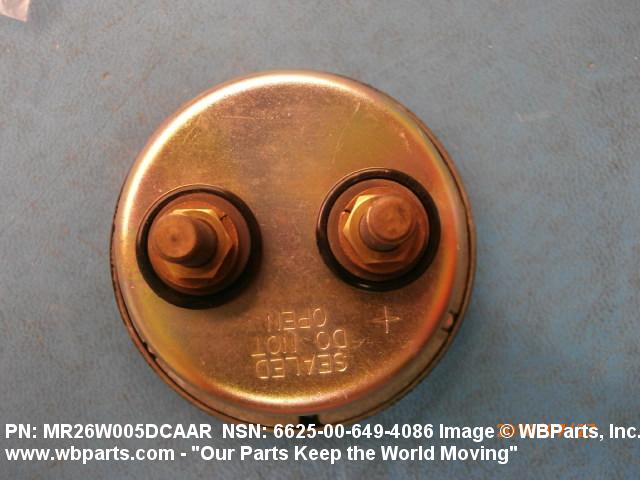

| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 SOLDER LUG |
| SENSITIVITY RATING | 75.0 MILLIVOLTS |
| CIRCUIT CURRENT FOR WHICH DESIGNED | DC |
| STYLE DESIGNATOR | C1 ROUND FLUSH MTG |

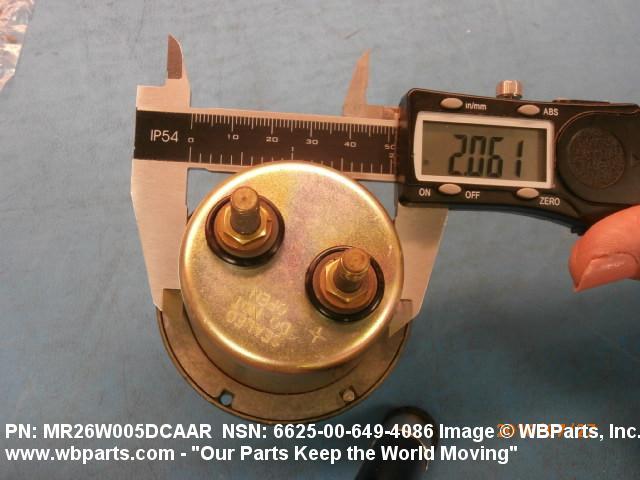

| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 2.021 INCHES NOMINAL |
| OVERALL DIAMETER | 2.695 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 UNTHREADED HOLE |

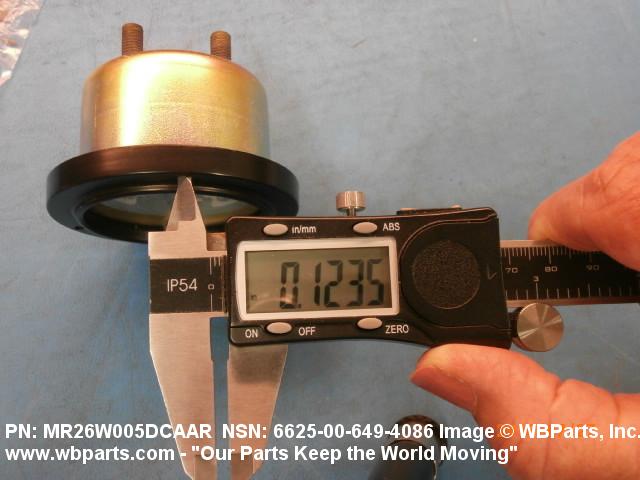

| MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | E5 THREE HOLE/STUD BOLT CIRCLE |
| MOUNTING BOLT CIRCLE DIAMETER | 2.440 INCHES NOMINAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-10304/5 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MR26W005DCAAR |
Restrictions/Controls & Freight Information | NSN 6625-00-649-4086
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
