NSN 6625-00-580-3443 AN3201A600, MILA6752, MIL-A-6752
Product Details | AMMETER
6625-00-580-3443 An instrument which measures electric current and is calibrated and marked in amperes or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display. For current detecting type of devices, see GALVANOMETER.
Part Alternates: AN3201A600, MILA6752, MIL-A-6752, MILA6752AAN3201A600, MILA6752A-AN3201A600, 6625-00-580-3443, 00-580-3443, 6625005803443, 005803443
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-580-3443 | 16450 ( AMMETER ) |
Drawings & Photos | NSN 6625-00-580-3443
Demand History | NSN 6625-00-580-3443
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN3201A600 | 2009-03-82 | 1 | United States |
Cross Reference | NSN 6625-00-580-3443
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN3201A600 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| AN3201A600 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MIL-A-6752 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILA6752A-AN3201A600 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-00-580-3443
Related Products | NSN 6625-00-580-3443
Technical Data | NSN 6625-00-580-3443
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | MAGNETIC |
| (NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE | NONELECTRONIC |
| INDICATOR TYPE | DIAL W/POINTER |
| MEASUREMENT RANGE | 0.0 TO 600.0 AMPERES, DC SINGLE INDICATOR SINGLE RANGE |
| ACCURACY IN PERCENT | -2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE |
| SCALE GRADUATION TYPE | LINEAR SINGLE INDICATOR SINGLE RANGE |
| SCALE DIVISION QUANTITY | 30 SINGLE INDICATOR SINGLE RANGE |
| POINTER COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| MOVEMENT TYPE | MOVING COIL, PERMANENT MAGNET |
| MOVEMENT SUSPENSION METHOD | JEWEL PIVOT BASE |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 BINDING POST |
| SENSITIVITY RATING | 50.0 MILLIVOLTS |
| SCALE SELECTION METHOD | TERMINAL |
| POWER SOURCE | EXTERNAL |
| CIRCUIT CURRENT FOR WHICH DESIGNED | DC |
| STYLE DESIGNATOR | C2 RECTANGULAR FLUSH MTG |
| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 2.255 INCHES NOMINAL |
| METER DEPTH BEHIND MOUNTING FLANGE | 1.155 INCHES NOMINAL |
| OVERALL HEIGHT | 2.375 INCHES NOMINAL |
| OVERALL LENGTH | 1.625 INCHES NOMINAL |
| OVERALL WIDTH | 2.375 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.138 INCHES NOMINAL |

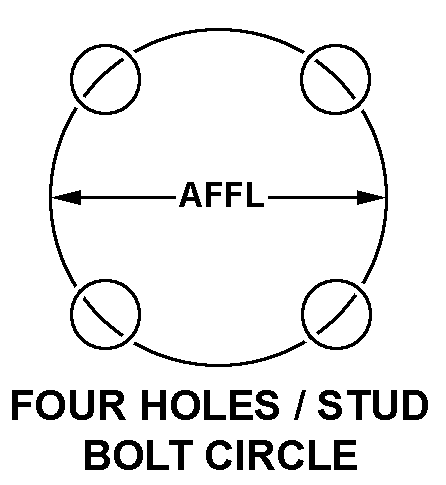

| MOUNTING ARRANGEMENT STYLE | E6 FOUR HOLE/STUD BOLT CIRCLE |
