NSN 6625-00-569-2565 9892506G2, 00-569-2565, 005692565
Product Details | ELECTRICAL METER HOUSING
6625-00-569-2565 The outer component of an electrical meter designed to inclose, support and/or protect the meter mechanism. May include a window and/or provisions for adjusting the meter pointer. For items which inclose the complete functioning meter, see CASE, METER.
Part Alternates: 9892506G2, 6625-00-569-2565, 00-569-2565, 6625005692565, 005692565
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-569-2565 | 13601 ( HOUSING, ELECTRICAL METER ) |
Drawings & Photos | NSN 6625-00-569-2565
Cross Reference | NSN 6625-00-569-2565
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9892506G2 | 97424 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6625-00-569-2565
Technical Data | NSN 6625-00-569-2565
| Characteristic | Specifications |
|---|---|
| WINDOW MATERIAL | PLASTIC |
| ADJUSTABLE POINTER | NOT PROVIDED |
| MATERIAL | PLASTIC |

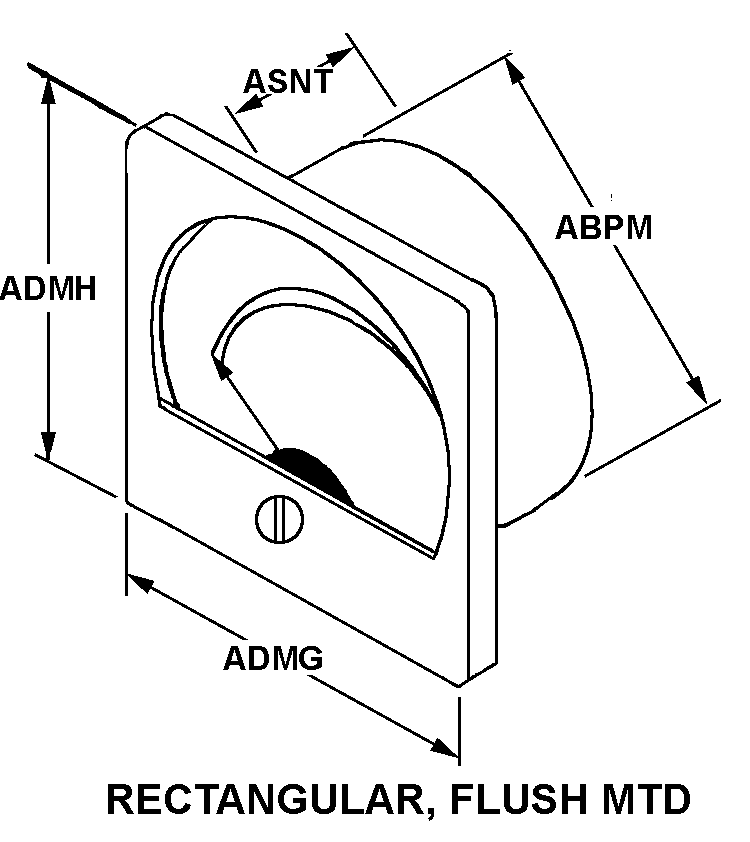

| STYLE DESIGNATOR | B15 RECTANGULAR, FLUSH MTD |
| BODY DIAMETER | 2.156 INCHES NOMINAL |
| FLANGE MOUNTING LENGTH | 2.375 INCHES NOMINAL |
| MOUNTING FLANGE WIDTH | 2.375 INCHES NOMINAL |
| DEPTH TO MOUNTING FLANGE | 1.062 INCHES NOMINAL |
| MOUNTING CONFIGURATION | FOUR MTG HOLES ON 1.688 IN. BY 1.688 IN. MTG CTR |
| INSULATING RING | NOT PROVIDED |
| RETAINING RING | NOT PROVIDED |
| AUXILIARY ILLUMINATION WINDOW | NOT PROVIDED |
| SPECIAL FEATURES | COVERS FREQ METER |
| III UNPACKAGED UNIT WEIGHT | 0.114 POUNDS |
| III FSC APPLICATION DATA | TEST SET,ELECT. EQUIP. |
Restrictions/Controls & Freight Information | NSN 6625-00-569-2565
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136740 | METERS ELEC/PARTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6625-00-569-2565
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
