NSN 6625-00-544-5899 MS250251, MS25025-1, MILA6752
Product Details | SPECIAL SCALE METER
6625-00-544-5899 An electrically operated instrument which has a custom scale or digital readout display, but the unit of measurement given is not covered by a more specific item name. For items without a specified unit of measurement, see METER, ARBITRARY SCALE.
Part Alternates: MS250251, MS25025-1, MILA6752, MIL-A-6752, 136008, 136-008, 3202612MOD165, 3202-612MOD165, J1, J-1, 6625-00-544-5899, 00-544-5899, 6625005445899, 005445899
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-544-5899 | 61955 ( METER, SPECIAL SCALE ) |

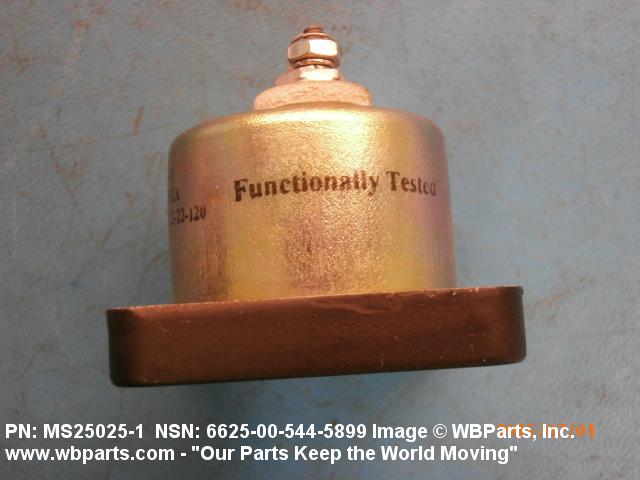

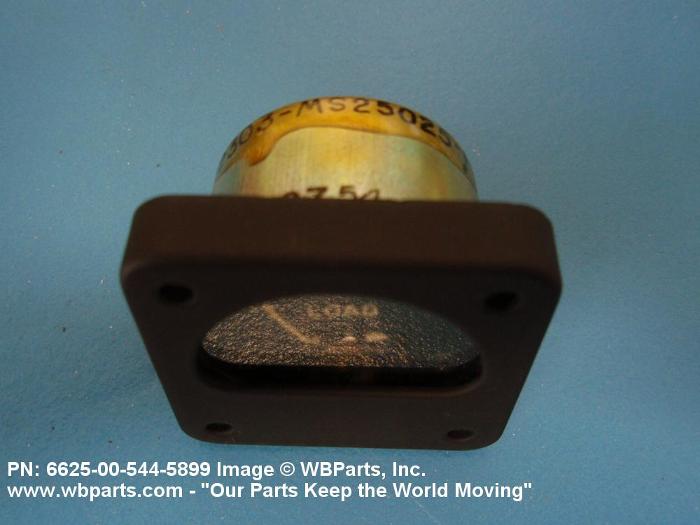

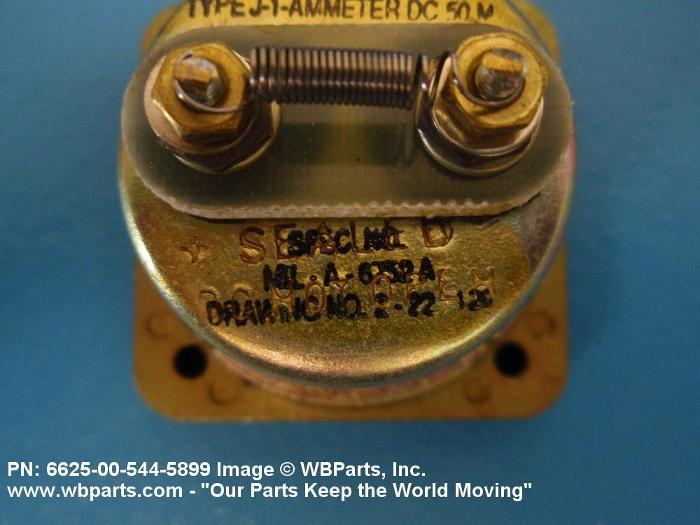

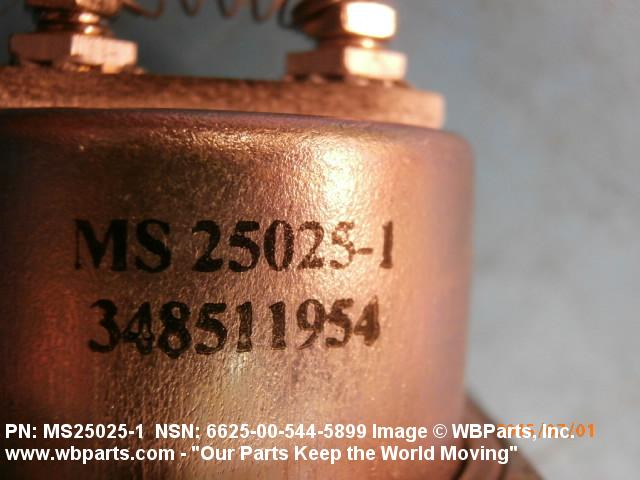

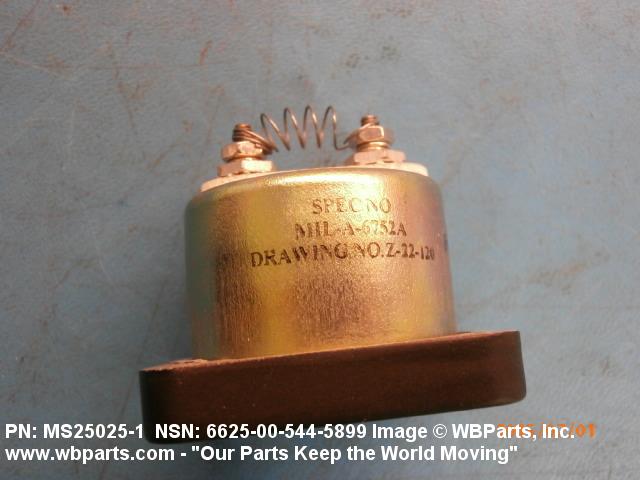

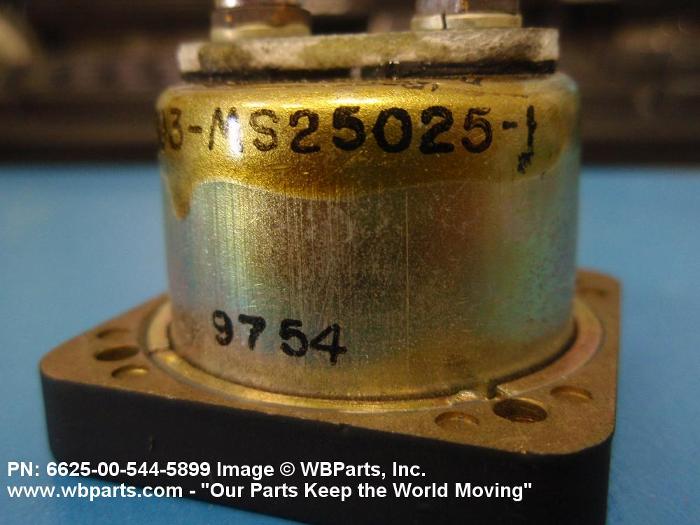

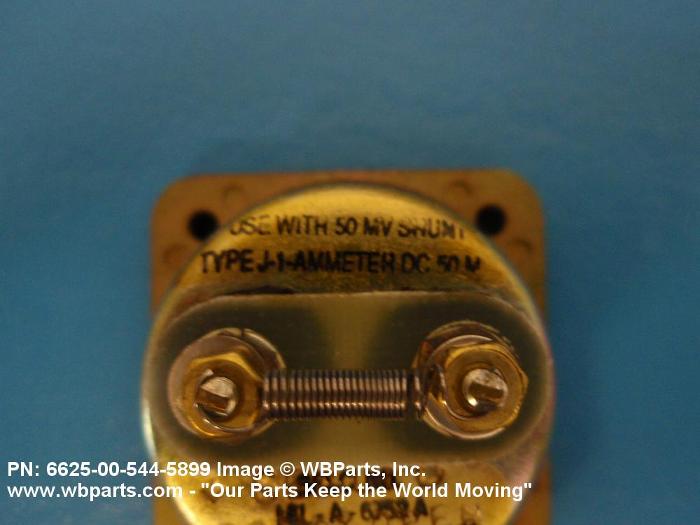

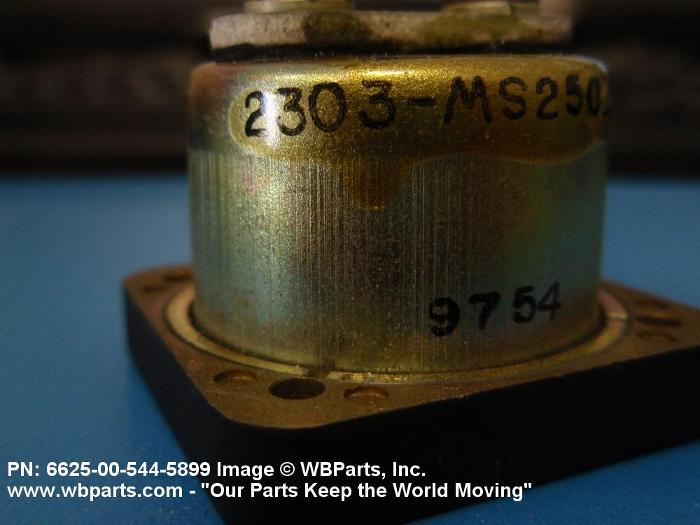

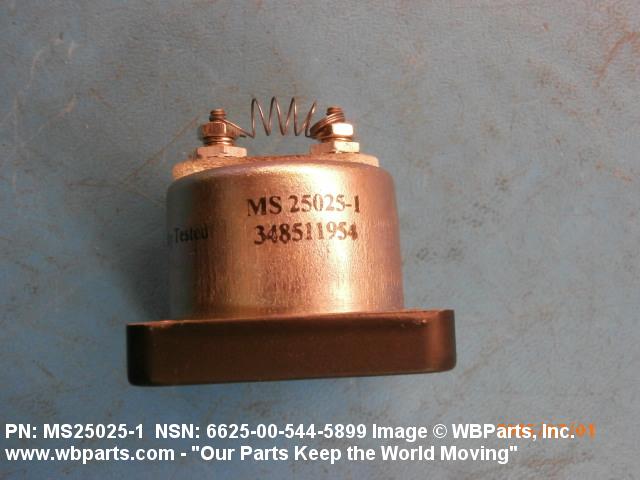

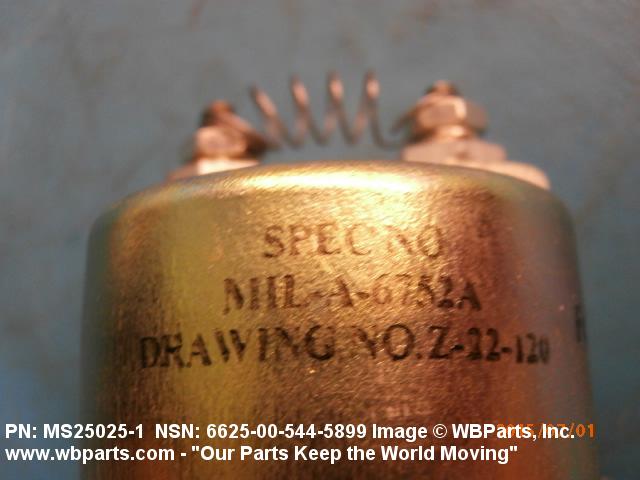

Drawings & Photos | NSN 6625-00-544-5899
Demand History | NSN 6625-00-544-5899
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-00-544-5899 | 2023-11-311 | 1 | United States |
| MS25025-1 | 2023-02-36 | 20 | Argentina |
| 6625-00-544-5899 | 2022-03-90 | 50 | DIBBS |
| 6625-00-544-5899 | 2022-03-62 | 15 | DIBBS |
| 6625-00-544-5899 | 2021-08-231 | 1 | US |
| 6625-00-544-5899 | 2020-03-87 | 19 | DIBBS |
| 6625-00-544-5899 | 2020-03-76 | 19 | DIBBS |
| 6625-00-544-5899 | 2019-03-85 | 2 | US |
| 6625-00-544-5899 | 2017-03-85 | 69 | DIBBS |
| MS250251 | 2016-08-242 | 1 | US |
| MS250251 | 2016-08-242 | 12 | US |
| MS250251 | 2016-04-105 | 8 | United States |
| 6625-00-544-5899 | 2015-10-296 | 5 | United States |
| MS250251 | 2015-10-293 | 2 | United States |
| 6625-00-544-5899 | 2015-08-216 | 64 | DIBBS |
| MS250251 | 2015-06-162 | 12 | United States |
| 6625-00-544-5899 | 2015-02-34 | 87 | DIBBS |
| 6625-00-544-5899 | 2013-05-151 | 78 | DIBBS |
| 6625-00-544-5899 | 2013-05-136 | 78 | DIBBS |
| 6625-00-544-5899 | 2012-10-286 | 67 | DIBBS |
| MS250251 | 2011-12-353 | 2 | US |
| MS25025-1 | 2011-06-180 | 2 | US |
| MS250251 | 2011-02-39 | 1 | United States |
| 6625-00-544-5899 | 2011-01-21 | 80 | DIBBS |
| 6625-00-544-5899 | 2010-02-53 | 305 | DIBBS |
| 6625-00-544-5899 | 2009-10-303 | 103 | DIBBS |
| MS250251 | 2008-07-184 | 5 | United States |
| MS250251 | 2006-04-103 | 2 | us |
Cross Reference | NSN 6625-00-544-5899
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 136-008 | 15309 | JEWELL INSTRUMENTS, LLC DBA MODUTEC USE CAGE CODE 33005 FOR |
| 3202-612MOD165 | 81030 | PRIME TECHNOLOGY INC INTERNATIONAL INSTRUMENTS DIV |
| 3202-612MOD165 | C7407 | IV-ELECTRONIC KLAUS VESPERMANN KG |
| J-1 | 11707 | IDEAL PRECISION METER CO |
| MIL-A-6752 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS25025-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-00-544-5899
Related Products | NSN 6625-00-544-5899
Technical Data | NSN 6625-00-544-5899
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | MAGNETIC |

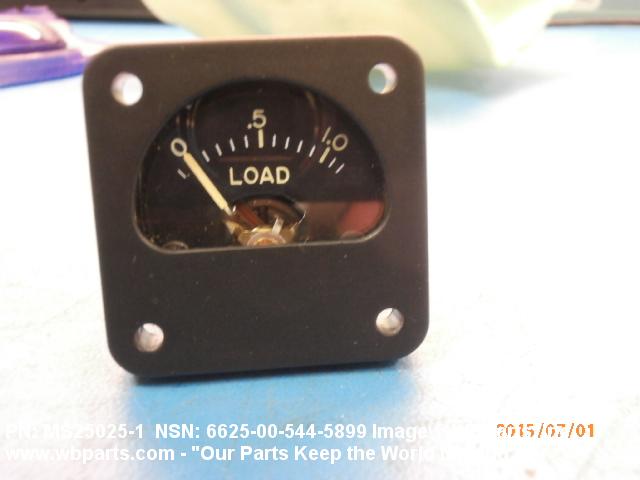

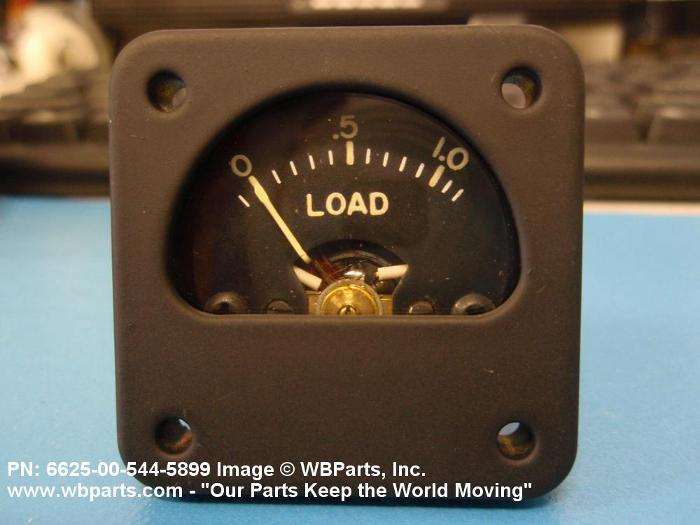

| INDICATOR TYPE | DIAL W/POINTER |
| SCALE MARKING | 0; .5; 1.0; LOAD |
| ACCURACY IN PERCENT | -2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE |
| SCALE GRADUATION TYPE | LINEAR SINGLE INDICATOR SINGLE RANGE |
| SCALE DIVISION QUANTITY | 13 SINGLE INDICATOR SINGLE RANGE |
| POINTER COLOR | WHITE AND YELLOW SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | WHITE AND YELLOW SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| MOVEMENT TYPE | MOVING COIL, PERMANENT MAGNET |
| MOVEMENT SUSPENSION METHOD | JEWEL PIVOT BASE |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 THREADED STUD |
| SENSITIVITY RATING | 50.0 MILLIVOLTS |
| DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 1500.0 |
| CIRCUIT CURRENT FOR WHICH DESIGNED | DC |
| STYLE DESIGNATOR | C2 RECTANGULAR FLUSH MTG |
| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 1.484 INCHES NOMINAL |
| METER DEPTH BEHIND MOUNTING FLANGE | 0.937 INCHES NOMINAL |

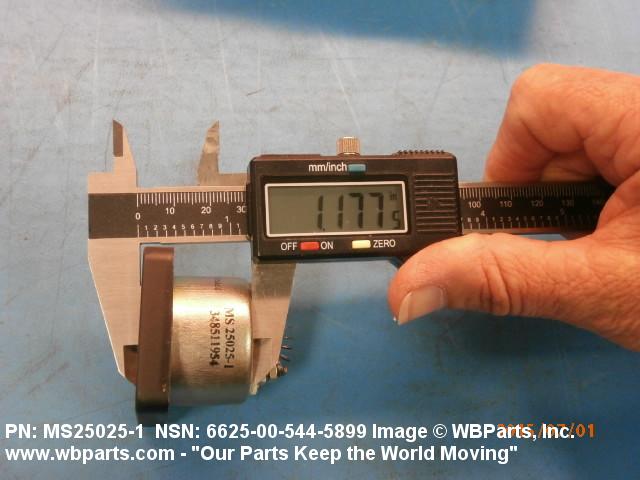

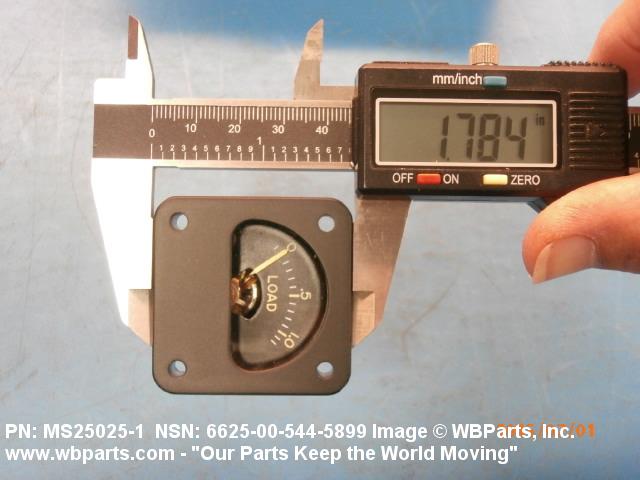

| OVERALL HEIGHT | 1.765 INCHES NOMINAL |
| OVERALL LENGTH | 1.781 INCHES NOMINAL |
| OVERALL WIDTH | 1.765 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 SCREW AND 4 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | E3 FOUR HOLE/STUD RECTANGULAR/SQUARE |

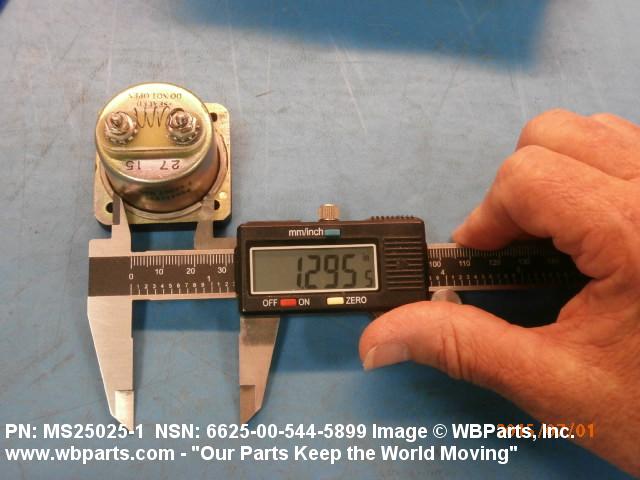

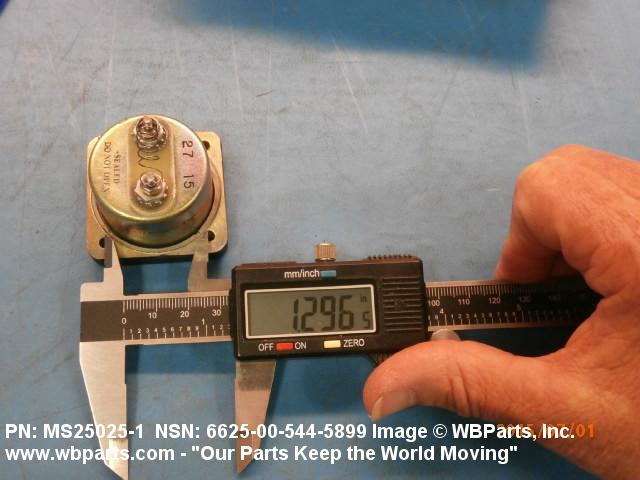

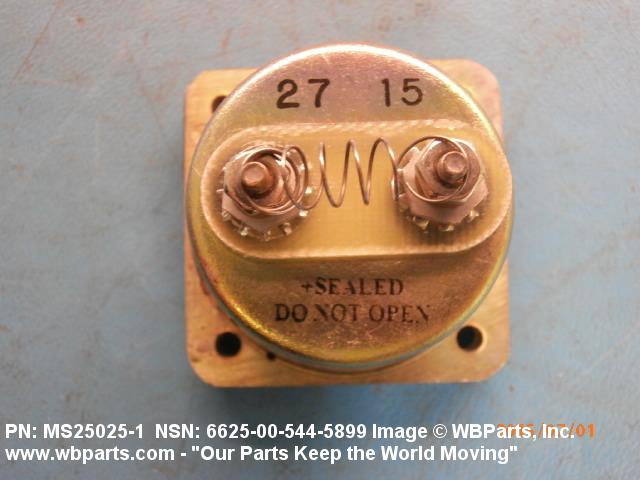

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.296 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.296 INCHES NOMINAL |
| MATERIAL | STEEL |
| SURFACE TREATMENT | PAINT |
| NUCLEAR HARDNESS CRITICAL FEATURE | NONHARDENED |
| ENVIRONMENTAL PROTECTION | AIRTIGHT AND DUST RESISTANT AND FUNGUS RESISTANT AND HEAT RESISTANT AND HUMIDITY RESISTANT AND SHOCK RESISTANT AND VIBRATION RESISTANT AND WATER RESISTANT |
| FURNISHED ITEMS AND QUANTITY | NUT 8; LOCKWASHER 8; SHUNT WIRE 1; SEAL 1 |
| SPECIAL MARKINGS | ON BACK,SEALED DO NOT OPEN |
| FEATURES PROVIDED | EXTERNAL SHUNTING AND MAGNETIC SHIELD AND ZERO ADJUSTER |
