NSN 6625-00-542-1558 MR26W150ACVVR, MIL-M-10304/6, MILM103046

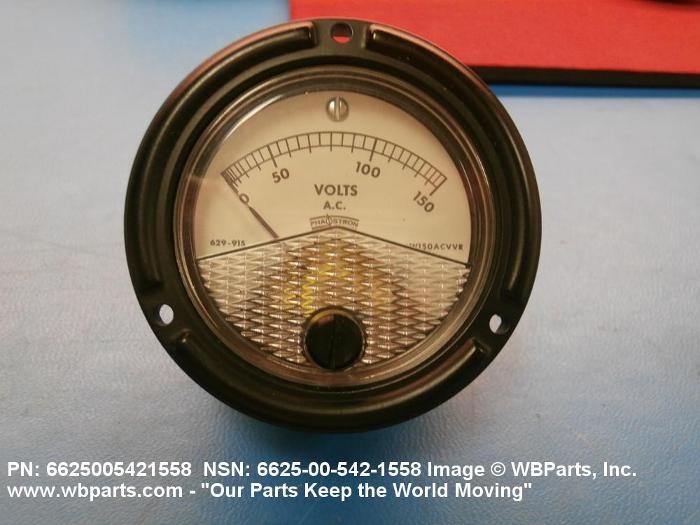

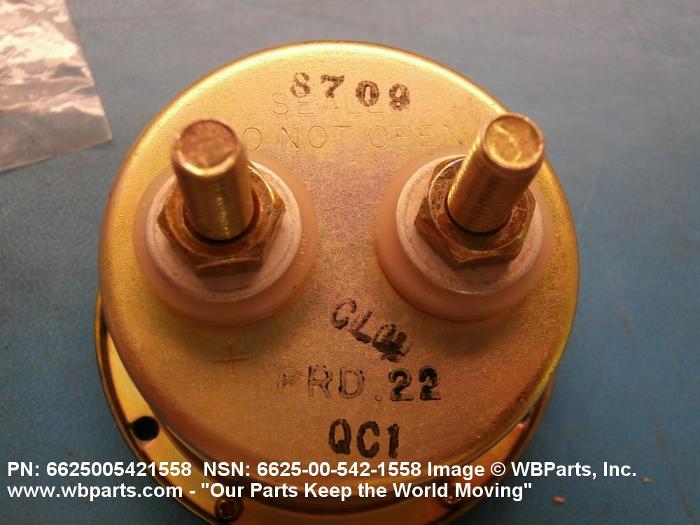

Product Details | VOLTMETER
6625-00-542-1558 An instrument which measures electrical potential and is calibrated in volts or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display.
Part Alternates: MR26W150ACVVR, MIL-M-10304/6, MILM103046, MILM10304C16CMR26W1, MILM10304C1-6CMR26W1, MIL-PRF-10304/6, MILPRF103046, 1524CLASS52, 155, 20604551, 2060455-1, 6625-00-542-1558, 00-542-1558, 6625005421558, 005421558
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1960 | 00-542-1558 | 16449 ( VOLTMETER ) |
Drawings & Photos | NSN 6625-00-542-1558
Demand History | NSN 6625-00-542-1558
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-00-542-1558 | 2024-08-235 | 5 | US |
| 6625-00-542-1558 | 2024-08-227 | 5 | US |
| 6625-00-542-1558 | 2022-12-363 | 9 | US |
| 6625-00-542-1558 | 2019-11-317 | 48 | DIBBS |
| 6625-00-542-1558 | 2019-08-231 | 7 | US |
| 6625-00-542-1558 | 2018-10-290 | 20 | US |
| 6625-00-542-1558 | 2018-08-234 | 8 | US |
| 6625-00-542-1558 | 2018-03-67 | 32 | DIBBS |
| 6625-00-542-1558 | 2017-12-346 | 5 | United States |
| 6625-00-542-1558 | 2017-10-296 | 5 | United States |
| MR26W150ACVVR | 2016-01-04 | 28 | United States |
| 6625-00-542-1558 | 2015-12-349 | 3 | United States |
| 6625-00-542-1558 | 2015-07-193 | 41 | DIBBS |
| 6625-00-542-1558 | 2015-04-103 | 1 | United States |
| 6625-00-542-1558 | 2013-02-52 | 1 | us |
| 6625-00-542-1558 | 2013-02-52 | 1 | us |
| 6625-00-542-1558 | 2013-02-36 | 6 | us |
| 6625-00-542-1558 | 2012-11-318 | 1 | us |
| 6625-00-542-1558 | 2012-10-290 | 21 | DIBBS |
| 6625-00-542-1558 | 2012-03-75 | 21 | DIBBS |
| 6625-00-542-1558 | 2011-10-304 | 10 | US |
| MR26W150ACVVR | 2011-10-300 | 4 | Taiwan |
| MR26W150ACVVR | 2011-10-278 | 4 | Taiwan |
| 6625-00-542-1558 | 2011-06-152 | 10 | Taiwan |
| 6625-00-542-1558 | 2010-05-141 | 32 | DIBBS |
| 6625-00-542-1558 | 2009-10-276 | 36 | DIBBS |
| 6625-00-542-1558 | 2009-09-271 | 26 | DIBBS |
| 6625-00-542-1558 | 2009-07-209 | 27 | DIBBS |
| 6625-00-542-1558 | 2009-05-125 | 15 | DIBBS |
| 6625-00-542-1558 | 2009-04-120 | 15 | DIBBS |
| MR26W150ACVVR | 2007-09-262 | 3 | JP |
| 6625-00-542-1558 | 2007-03-68 | 33 | DIBBS |
Cross Reference | NSN 6625-00-542-1558
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1524CLASS52 | 65092 | SOLARTRON ELECTRONICS INC WESTON INSTRUMENTS DIV |
| 155 | 55026 | SIMPSON ELECTRIC COMPANY DBA (SUB OF LAC DU FLAMBEAU BAND OF |
| 2060455-1 | 28527 | EXELIS INC. DBA ELECTRONIC SYSTEMS, INTEGRATED |
| MIL-M-10304/6 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-10304/6 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILM10304C1-6CMR26W1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MR26W150ACVVR | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-00-542-1558
Related Products | NSN 6625-00-542-1558
Technical Data | NSN 6625-00-542-1558
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | MAGNETIC OR NONMAGNETIC |
| (NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE | NONELECTRONIC |
| INDICATOR TYPE | DIAL W/POINTER |
| MEASUREMENT RANGE | 0.0 TO 150.0 VOLTS, AC SINGLE INDICATOR SINGLE RANGE |
| ACCURACY IN PERCENT | -2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR ALL RANGES |
| SCALE GRADUATION TYPE | LINEAR SINGLE INDICATOR SINGLE RANGE |
| SCALE DIVISION QUANTITY | 30 SINGLE INDICATOR SINGLE RANGE |
| POINTER COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| MOVEMENT TYPE | MOVING IRON VANE |
| MOVEMENT SUSPENSION METHOD | METAL PIVOT BASE |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 BINDING POST |
| DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 3000.0 |
| CIRCUIT CURRENT FOR WHICH DESIGNED | AC |
| STYLE DESIGNATOR | C1 ROUND FLUSH MTG |
| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 2.210 INCHES NOMINAL |
| METER DEPTH BEHIND MOUNTING FLANGE | 1.750 INCHES NOMINAL |
| OVERALL DIAMETER | 2.695 INCHES NOMINAL |
| OVERALL LENGTH | 2.150 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 FLANGE AND 3 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | E5 THREE HOLE/STUD BOLT CIRCLE |
| MOUNTING BOLT CIRCLE DIAMETER | 2.440 INCHES NOMINAL |

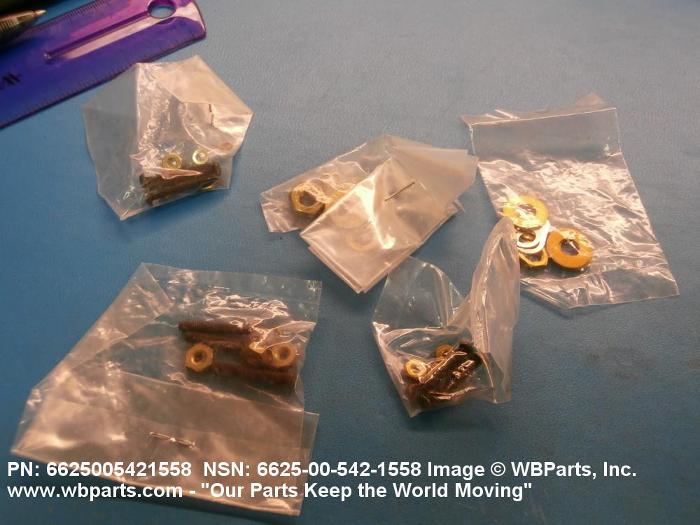

| FURNISHED ITEMS AND QUANTITY | SCREW 4.40 THD 0.500 IN. LONG,RD HEAD,BLACK 3; WASHER LOCK 3; NUT HEX 3 |
