NSN 6625-00-500-8890 MSB401, L01592, 00-500-8890
Product Details | INSTRUMENT SHUNT
6625-00-500-8890 A fixed precision resistor consisting of a bar or bars of metal specifically designed for use in parallel with a basic direct current instrument to permit determination of current values exceeding the actual range of the instrument itself.
Part Alternates: MSB401, L01592, 6625-00-500-8890, 00-500-8890, 6625005008890, 005008890
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 06 JUL 1974 | 00-500-8890 | 00122 ( SHUNT, INSTRUMENT ) |

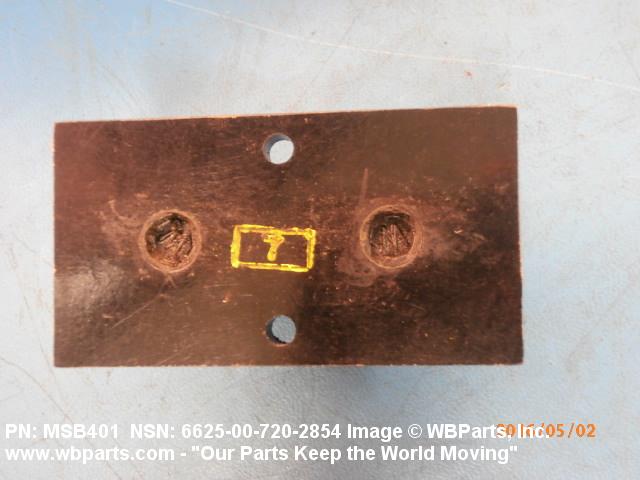

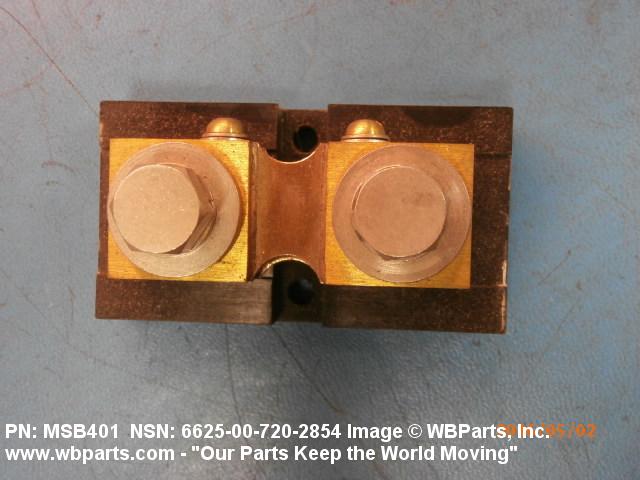

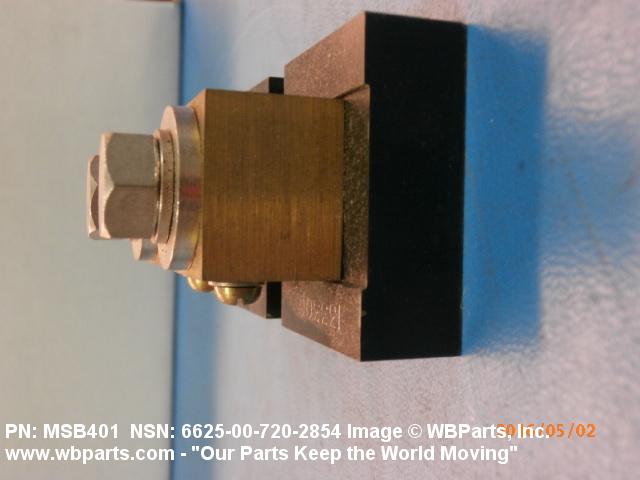

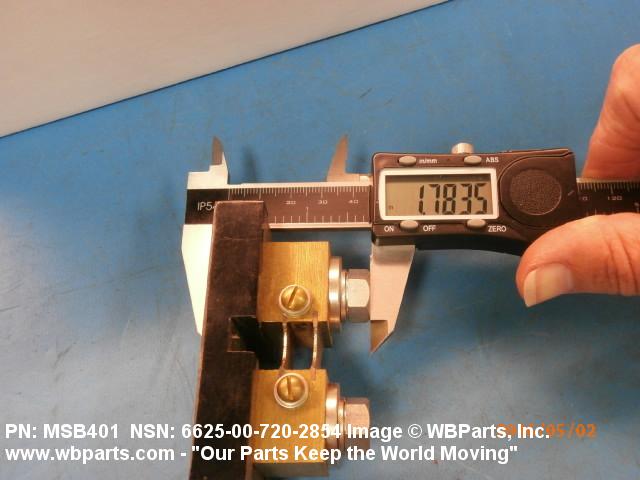

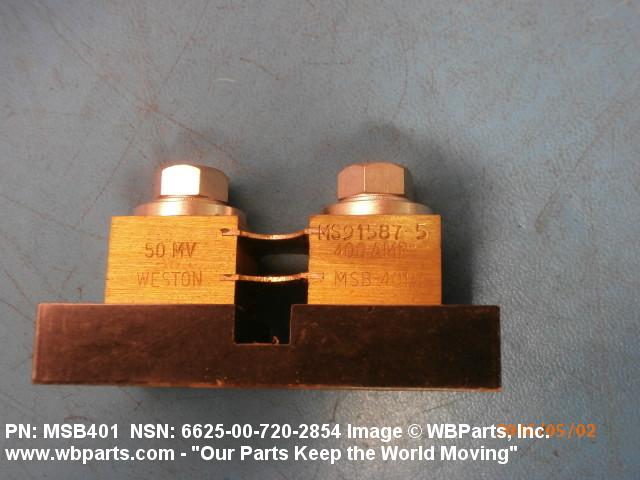

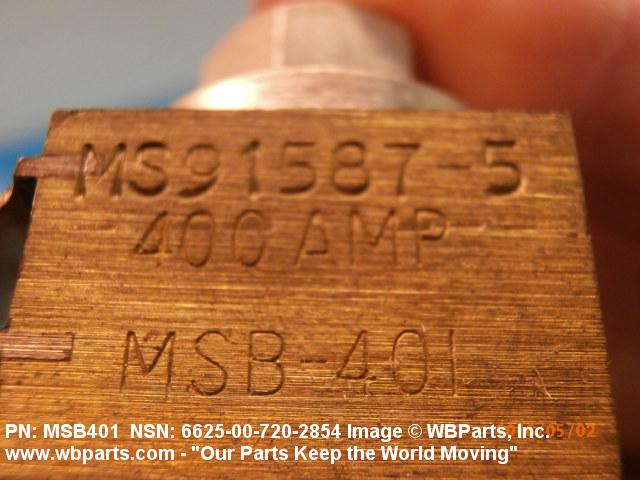

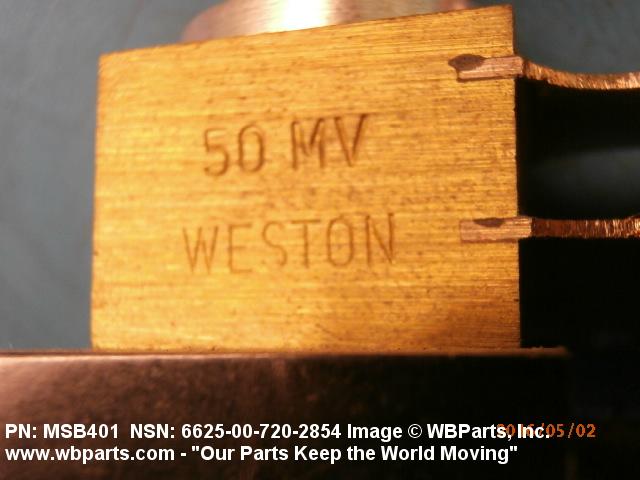

Drawings & Photos | NSN 6625-00-500-8890
Demand History | NSN 6625-00-500-8890
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MSB401 | 2006-07-187 | 3 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6625-00-500-8890
Technical Data | NSN 6625-00-500-8890
| Characteristic | Specifications |
|---|---|

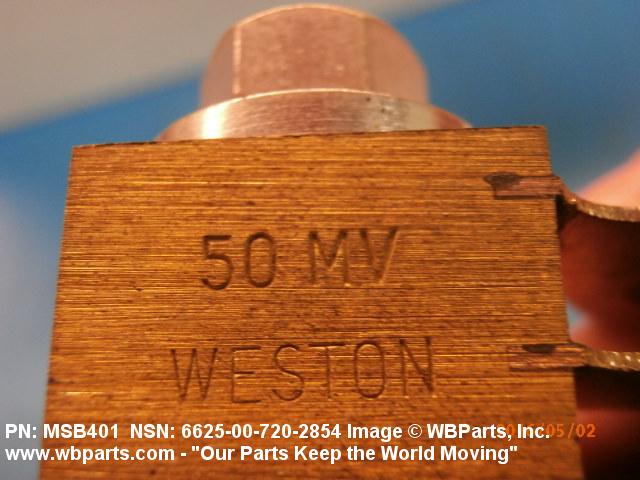

| VOLTAGE DROP IN MILLIVOLTS | 50.0 NOMINAL |

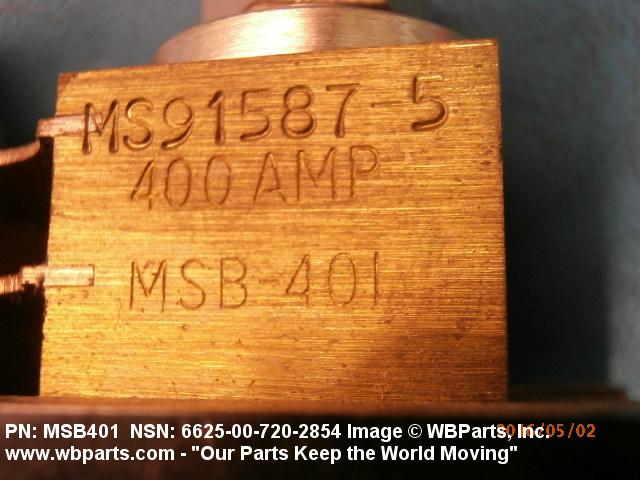

| CURRENT RATING AND TYPE | 400.0 AMPERES NOMINAL AC |
| USAGE DESIGN | EXTERNAL |
| ELEMENT MATERIAL | BRASS |
| TERMINAL TYPE AND QUANTITY | 2 SCREW |
| TERMINAL LOCATION | END |
| OVERALL LENGTH | 3.250 INCHES NOMINAL |

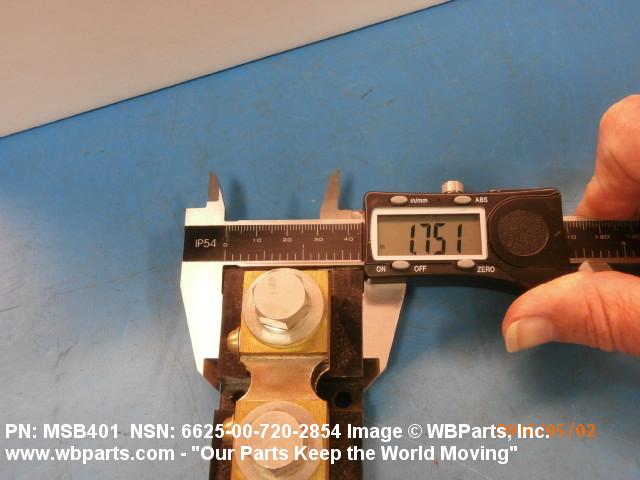

| OVERALL WIDTH | 1.750 INCHES NOMINAL |
| OVERALL HEIGHT | 1.312 INCHES NOMINAL |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING PROVISION QUANTITY | 2 |

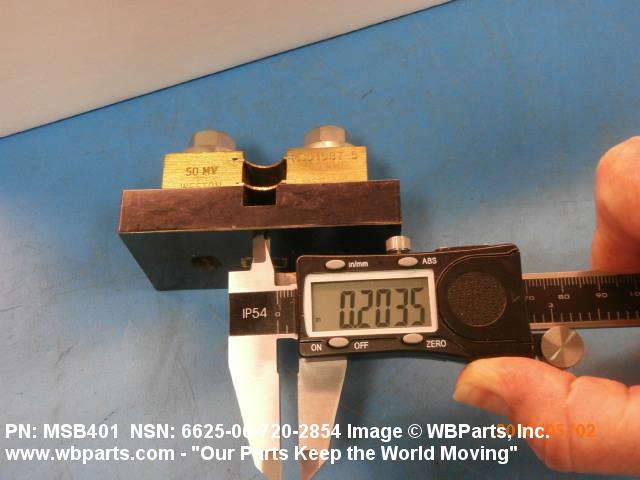

| UNTHREADED MOUNTING HOLE DIAMETER | 0.205 INCHES NOMINAL |

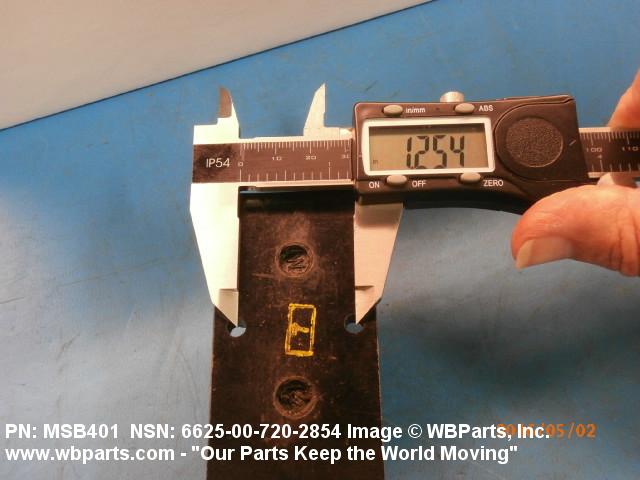

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.250 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 6625-00-500-8890
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6625-00-500-8890
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
