NSN 6625-00-433-8504 ESDELECTA, ESD7, 00-433-8504
Product Details | VOLTMETER
6625-00-433-8504 An instrument which measures electrical potential and is calibrated in volts or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display.
Part Alternates: ESDELECTA, ESD7, 6625-00-433-8504, 00-433-8504, 6625004338504, 004338504
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 17 MAY 1974 | 00-433-8504 | 16449 ( VOLTMETER ) |

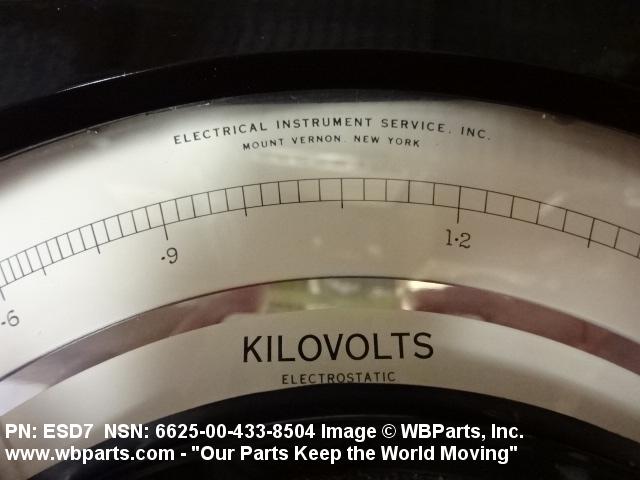

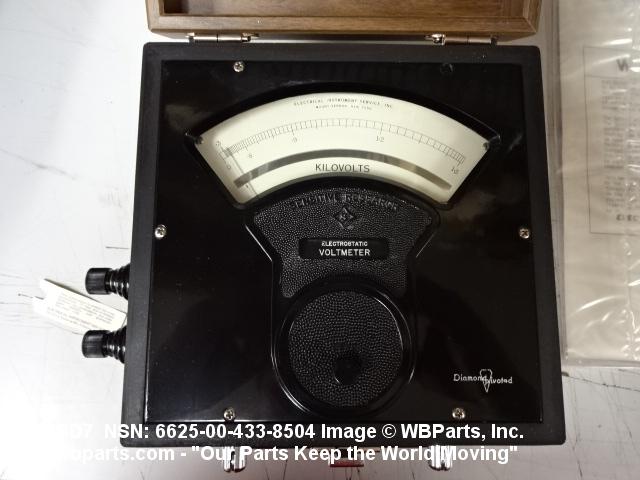

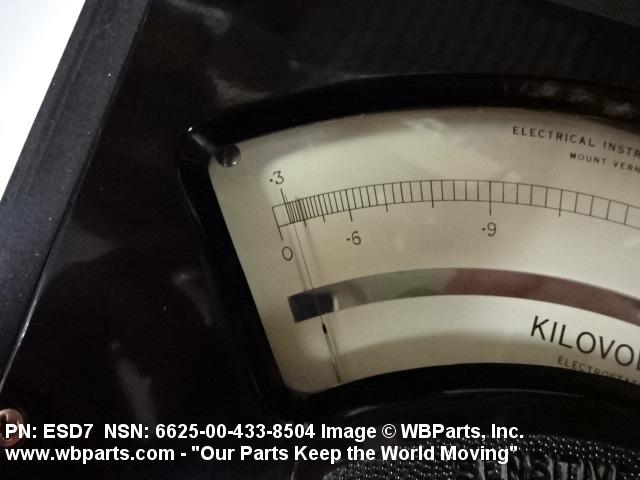

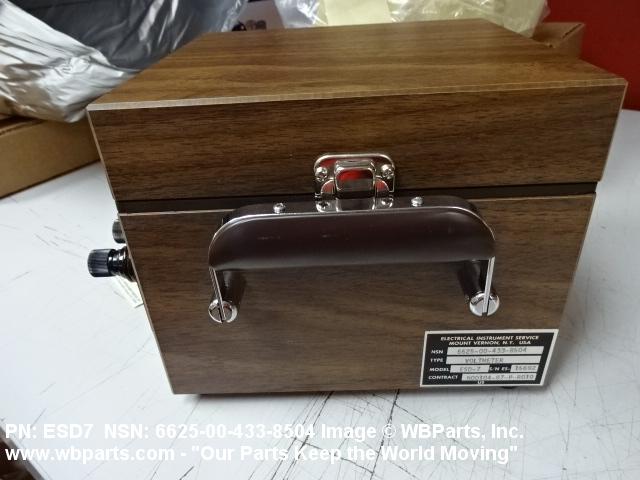

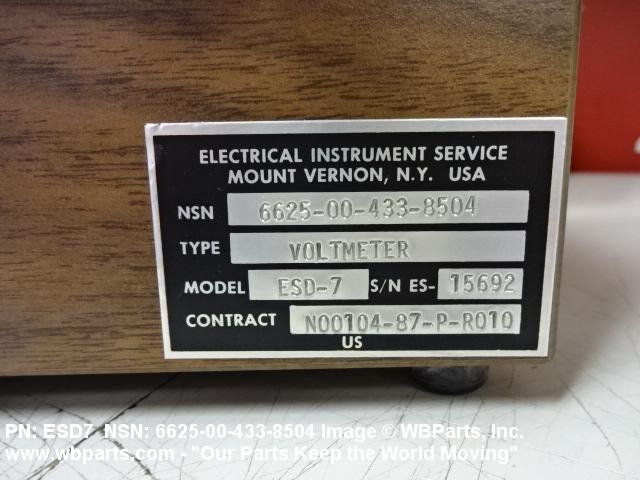

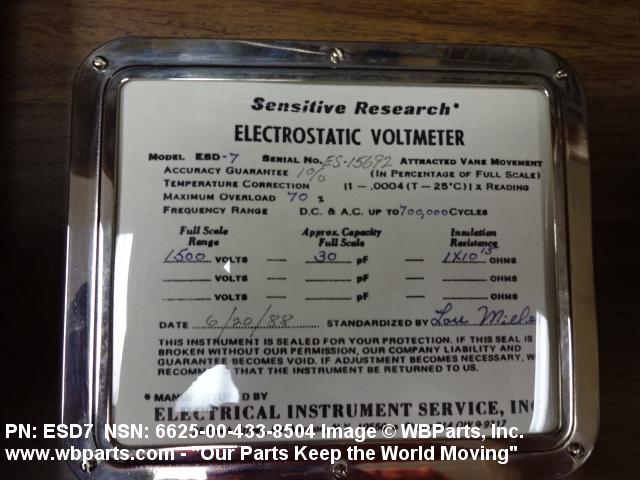

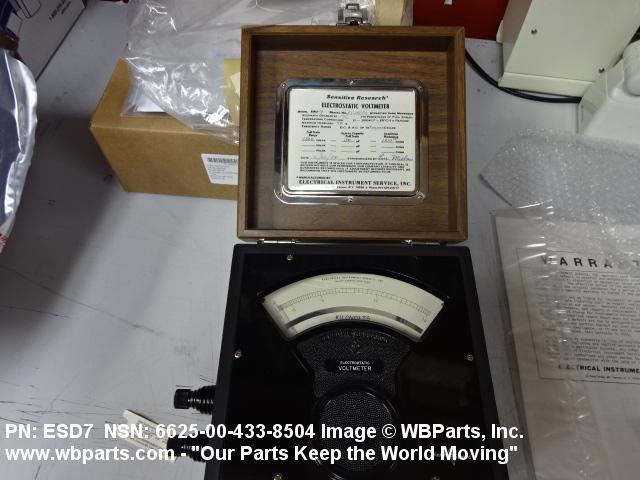

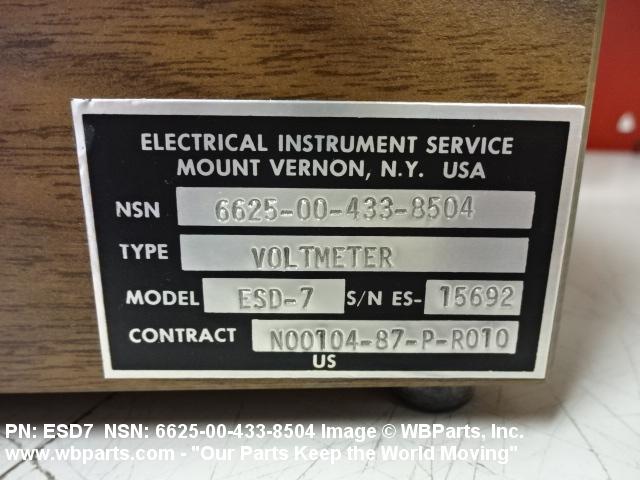

Drawings & Photos | NSN 6625-00-433-8504
Demand History | NSN 6625-00-433-8504
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-00-433-8504 | 2019-02-56 | 1 | us |
| 6625-00-433-8504 | 2018-12-360 | 1 | DIBBS |
| 6625-00-433-8504 | 2018-12-345 | 1 | DIBBS |
| 6625-00-433-8504 | 2018-02-52 | 1 | DIBBS |
| 6625-00-433-8504 | 2009-06-166 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6625-00-433-8504
Technical Data | NSN 6625-00-433-8504
| Characteristic | Specifications |
|---|---|
| ACCURACY IN PERCENT | -1.0 TO 1.0 AT FULL SCALE SINGLE INDICATOR ALL RANGES |
| MOVEMENT TYPE | ELECTROSTATIC |

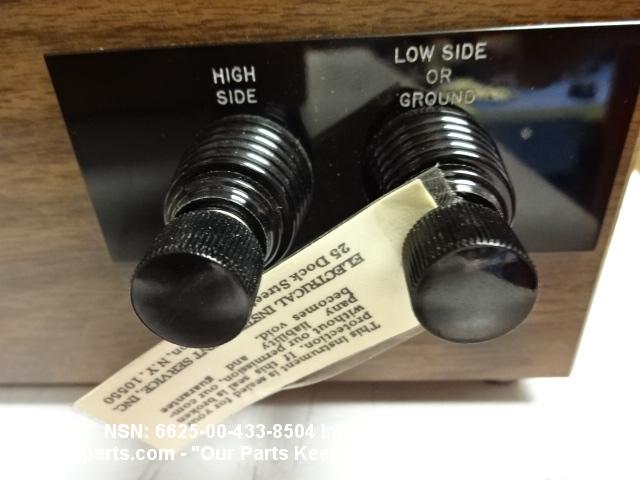

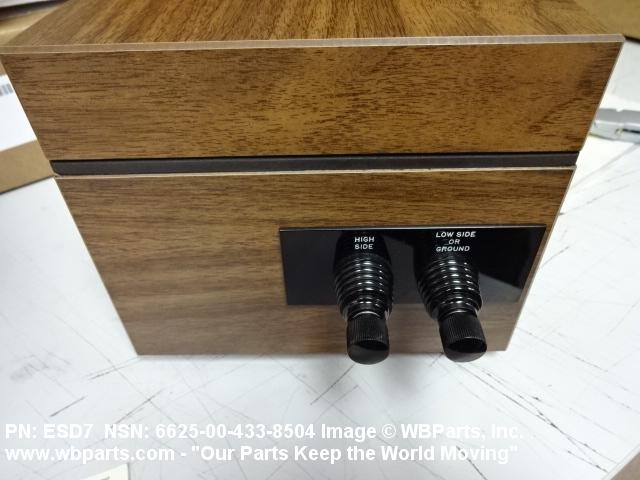

| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 CONNECTOR, RECEPTACLE |
| CIRCUIT CURRENT FOR WHICH DESIGNED | AC AND DC |
| STYLE DESIGNATOR | D1 RECTANGULAR OR SQUARE |
| OVERALL HEIGHT | 6.062 INCHES NOMINAL |
| OVERALL LENGTH | 7.750 INCHES NOMINAL |
| OVERALL WIDTH | 7.500 INCHES NOMINAL |
| FEATURES PROVIDED | ELECTROSTATIC SHIELD AND ZERO ADJUSTER |
| MANUFACTURERS CODE | 32590 |
| DESIGN CONTROL REFERENCE | ESD7 |
Restrictions/Controls & Freight Information | NSN 6625-00-433-8504
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136740 | METERS ELEC/PARTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6625-00-433-8504
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
