NSN 6625-00-369-5178 5222200001, 522-2-2-00001, 64316332
Product Details | AMMETER
6625-00-369-5178 An instrument which measures electric current and is calibrated and marked in amperes or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display. For current detecting type of devices, see GALVANOMETER.
Part Alternates: 5222200001, 522-2-2-00001, 64316332, 643-16332, 68C391557, 68C39155-7, 907-230 SCALE 3702S, 907230SCALE3702S, 6625-00-369-5178, 00-369-5178, 6625003695178, 003695178
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 05 MAR 1969 | 00-369-5178 | 16450 ( AMMETER ) |
Drawings & Photos | NSN 6625-00-369-5178
Cross Reference | NSN 6625-00-369-5178
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-00-369-5178
Related Products | NSN 6625-00-369-5178
Technical Data | NSN 6625-00-369-5178
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | NONMAGNETIC |
| (NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE | NONELECTRONIC |
| INDICATOR TYPE | DIAL W/POINTER |
| MEASUREMENT RANGE | 0.0 TO 20.0 AMPERES, DC SINGLE INDICATOR SINGLE RANGE |
| ACCURACY IN PERCENT | -1.0 TO 1.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE |
| SCALE GRADUATION TYPE | LINEAR SINGLE INDICATOR SINGLE RANGE |
| SCALE DIVISION QUANTITY | 20 SINGLE INDICATOR SINGLE RANGE |
| POINTER COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| MOVEMENT TYPE | MOVING IRON VANE |
| MOVEMENT SUSPENSION METHOD | JEWEL PIVOT BASE |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 THREADED STUD |
| SENSITIVITY RATING | 100.0 MILLIVOLTS |
| CIRCUIT CURRENT FOR WHICH DESIGNED | DC |

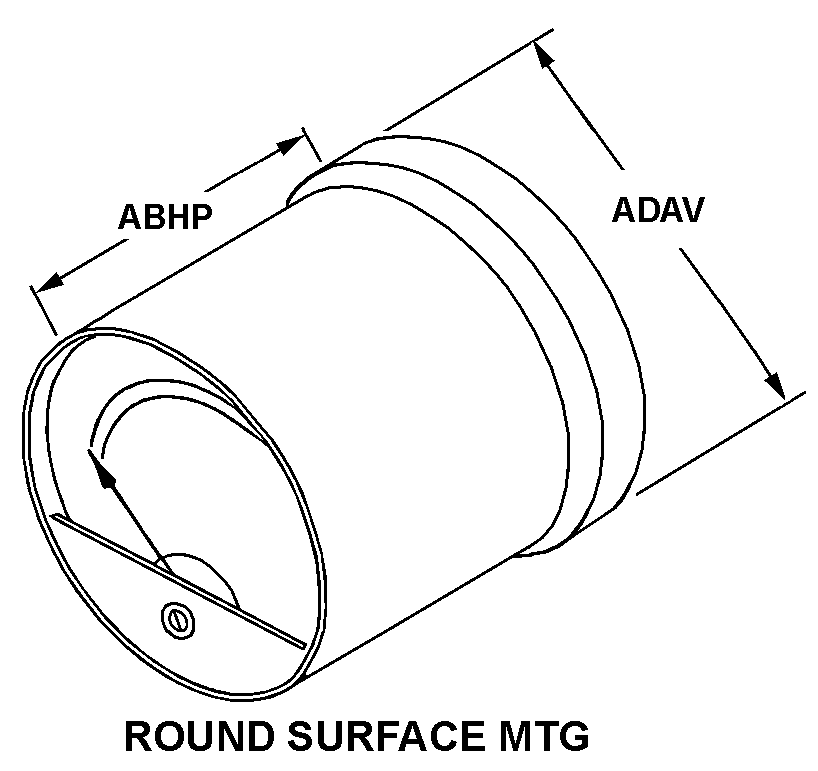

| STYLE DESIGNATOR | A5 ROUND SURFACE MTG |
| OVERALL DIAMETER | 4.600 INCHES MAXIMUM |
| OVERALL LENGTH | 2.450 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 FLANGE AND 6 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.150 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | E7 SIX HOLE/STUD BOLT CIRCLE |
| MOUNTING BOLT CIRCLE DIAMETER | 4.125 INCHES NOMINAL |
| NUCLEAR HARDNESS CRITICAL FEATURE | NONHARDENED |
| ENVIRONMENTAL PROTECTION | SHOCK RESISTANT AND VIBRATION RESISTANT |
| FEATURES PROVIDED | ZERO ADJUSTER |
| SPECIAL FEATURES | RUGGEDIZED |
| III FSC APPLICATION DATA | TEST SET,ELECT. EQUIP. |
