NSN 6625-00-301-0231 120, 20013391, 20013-391
Product Details | AMMETER
6625-00-301-0231 An instrument which measures electric current and is calibrated and marked in amperes or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display. For current detecting type of devices, see GALVANOMETER.
Part Alternates: 120, 20013391, 20013-391, 6625-00-301-0231, 00-301-0231, 6625003010231, 003010231
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 12 OCT 1973 | 00-301-0231 | 16450 ( AMMETER ) |
Drawings & Photos | NSN 6625-00-301-0231
Demand History | NSN 6625-00-301-0231
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 120 | 2020-03-91 | 3 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-00-301-0231
Related Products | NSN 6625-00-301-0231
Technical Data | NSN 6625-00-301-0231
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | NONMAGNETIC |
| (NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE | NONELECTRONIC |
| INDICATOR TYPE | DIAL W/POINTER |
| MEASUREMENT RANGE | 0.0 TO 1.0 MILLIAMPERES, DC SINGLE INDICATOR SINGLE RANGE |
| ACCURACY IN PERCENT | -2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE |
| SCALE GRADUATION TYPE | LINEAR SINGLE INDICATOR SINGLE RANGE |
| SCALE DIVISION QUANTITY | 20 SINGLE INDICATOR SINGLE RANGE |
| POINTER COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| MOVEMENT TYPE | MOVING COIL, PERMANENT MAGNET |
| MOVEMENT SUSPENSION METHOD | JEWEL PIVOT BASE |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 SOLDERLESS LUG |
| SENSITIVITY RATING | 1.0 MILLIAMPERES |
| SCALE SELECTION METHOD | TERMINAL |
| POWER SOURCE | EXTERNAL |
| CIRCUIT CURRENT FOR WHICH DESIGNED | DC |

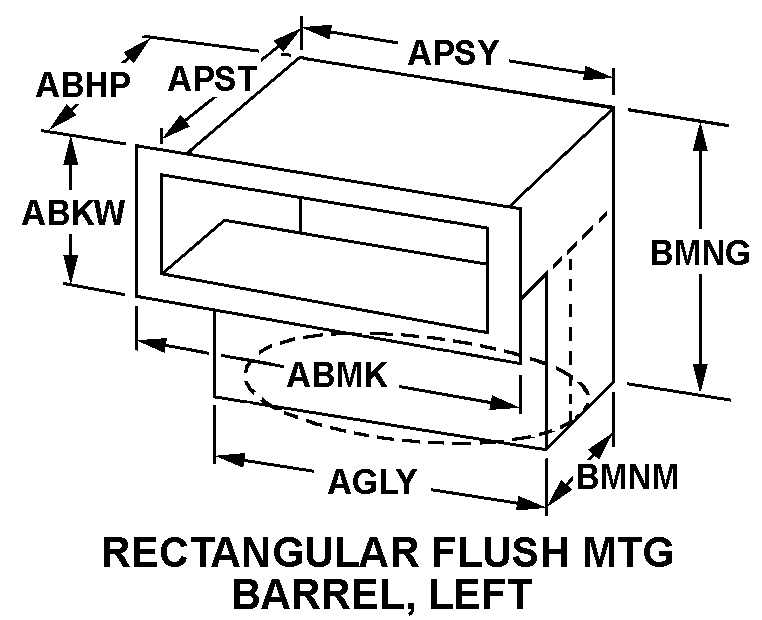

| STYLE DESIGNATOR | C6 RECTANGULAR FLUSH MTG BARREL, LEFT |
| BARREL WIDTH | 1.605 INCHES MAXIMUM |
| METER BARREL DEPTH | 1.421 INCHES MAXIMUM |
| METER BODY HEIGHT BEHIND MOUNTING FLANGE | 1.602 INCHES NOMINAL |
| METER BODY WIDTH BEHIND MOUNTING FLANGE | 1.605 INCHES MAXIMUM |
| METER DEPTH BEHIND MOUNTING FLANGE | 1.932 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.776 INCHES NOMINAL |
| OVERALL LENGTH | 2.141 INCHES MAXIMUM |
| OVERALL WIDTH | 1.872 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 BEZEL AND 2 THREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.086 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | E1 TWO HOLE/STUD |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.285 INCHES NOMINAL |
| MATERIAL | PLASTIC |
| NUCLEAR HARDNESS CRITICAL FEATURE | NONHARDENED |
| ENVIRONMENTAL PROTECTION | SHOCK RESISTANT AND VIBRATION RESISTANT |
| SPECIAL MARKINGS | RED BAND 0 TO 0.1 MA; YELLOW TO 0.5; GREEN TO 0.9; RED TO 1 |
| FEATURES PROVIDED | ZERO ADJUSTER |
| SPECIAL FEATURES | RUGGEDIZED |
| RELIABILITY INDICATOR | ESTABLISHED |
| III FSC APPLICATION DATA | ELECTRICAL AND ELECTRONIC PROPERTIES MEASURING AND TESTING INSTRUMENTS |
