Product Details | VOLTMETER
6625-00-235-4782 An instrument which measures electrical potential and is calibrated in volts or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display.
Part Alternates: AN3203V30, MILA6752A, MIL-A-6752A, 235005, 235-005, 254030, 28.4043, 284043, 2B1073, 2B107-3, 560707, 560-707, 6625-00-235-4782, 00-235-4782, 6625002354782, 002354782
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-235-4782 | 16449 ( VOLTMETER ) |

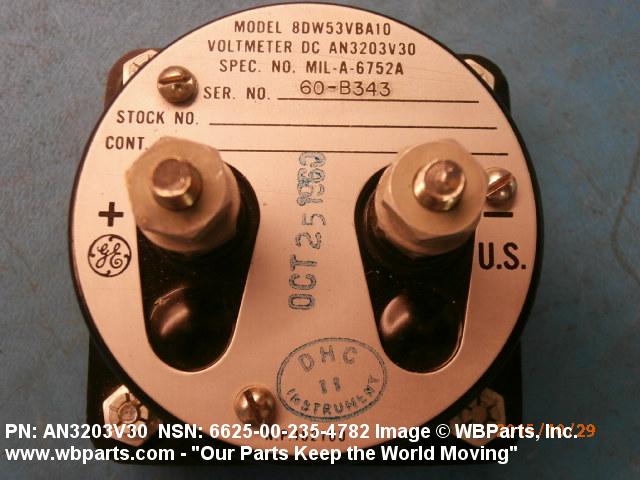

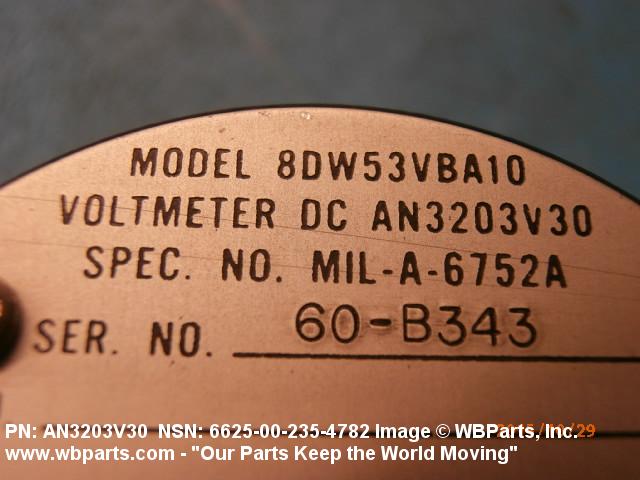

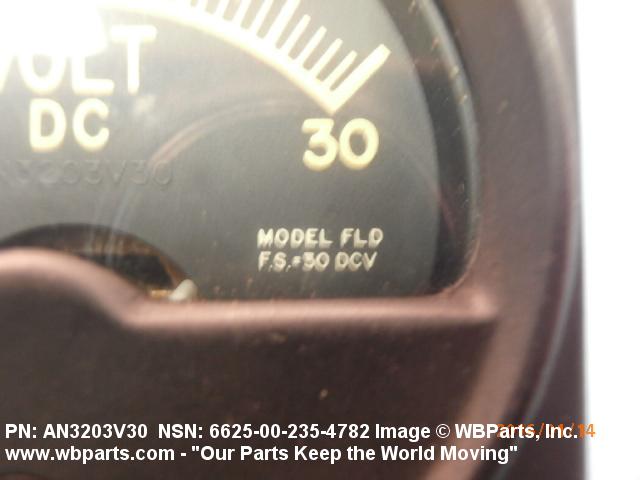

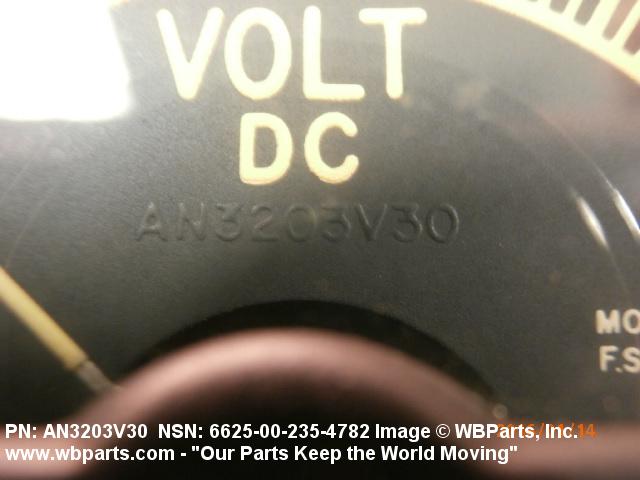

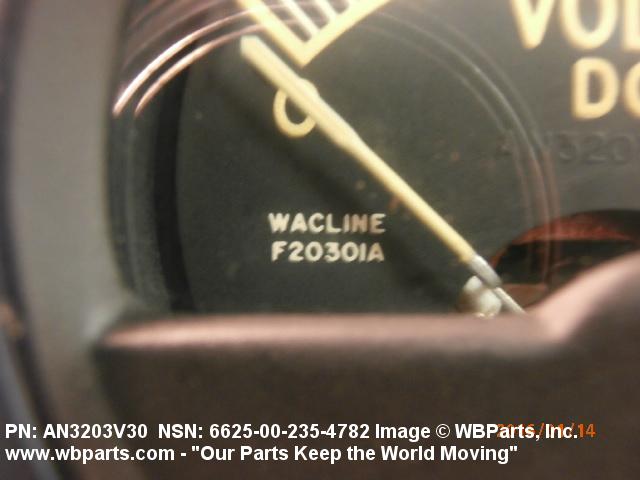

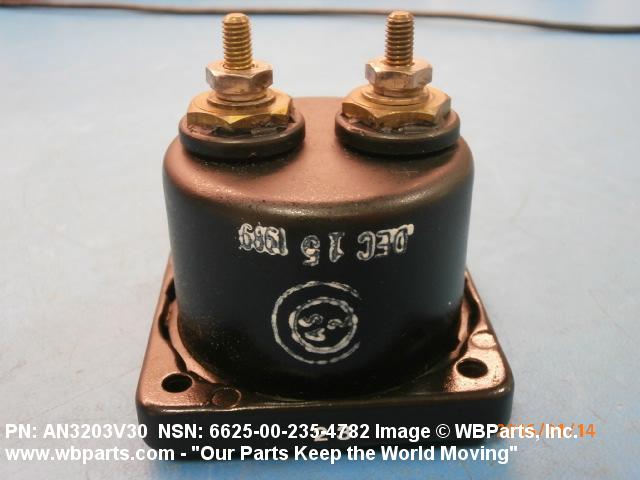

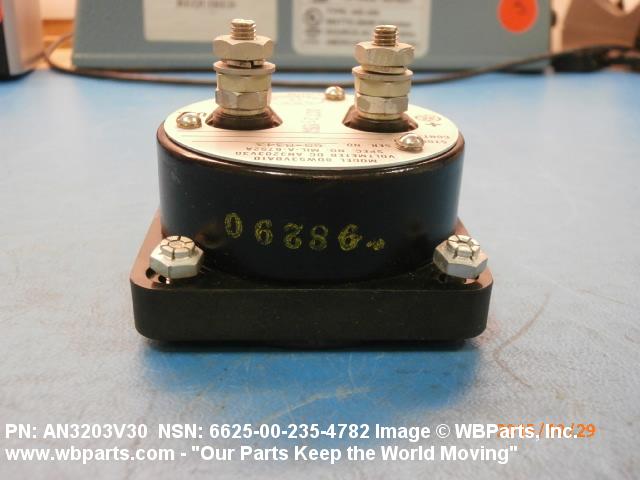

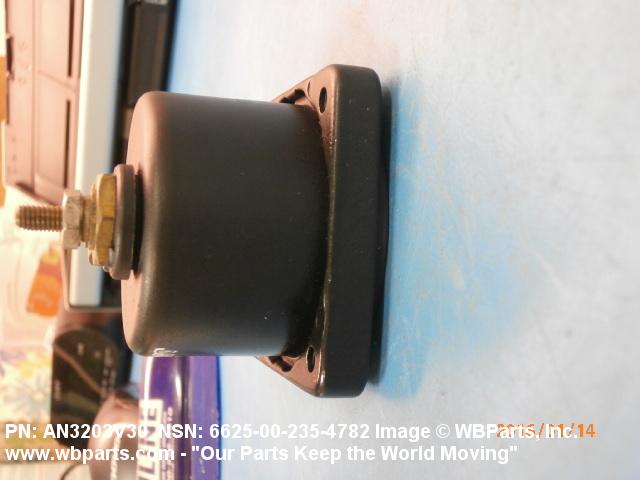

Drawings & Photos | NSN 6625-00-235-4782
Demand History | NSN 6625-00-235-4782
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 254030 | 2023-09-261 | 14 | DIBBS |
| 28.4043 | 2023-09-261 | 14 | DIBBS |
| AN3203V30 | 2023-08-226 | 3 | United States |
| 6625-00-235-4782 | 2023-08-226 | 28 | United States |
| 254030 | 2023-08-225 | 4 | DIBBS |
| 28.4043 | 2023-08-225 | 4 | DIBBS |
| 6625-00-235-4782 | 2023-06-152 | 31 | US |
| 254030 | 2023-05-145 | 31 | DIBBS |
| 28.4043 | 2023-05-145 | 31 | DIBBS |
| AN3203V30 | 2023-05-135 | 1 | United States |
| 254030 | 2023-01-10 | 13 | DIBBS |
| 28.4043 | 2023-01-10 | 13 | DIBBS |
| 254030 | 2022-12-340 | 34 | DIBBS |
| 28.4043 | 2022-12-340 | 34 | DIBBS |
| AN3203V30 | 2022-10-280 | 1 | United States |
| 6625-00-235-4782 | 2022-07-186 | 2 | SG |
| 254030 | 2022-04-112 | 65 | DIBBS |
| 28.4043 | 2022-04-112 | 65 | DIBBS |
| 28.4043 | 2022-01-31 | 16 | DIBBS |
| 28.4043 | 2021-11-334 | 16 | DIBBS |
| 28.4043 | 2021-10-287 | 28 | DIBBS |
| 28.4043 | 2020-10-282 | 51 | DIBBS |
| 6625-00-235-4782 | 2020-10-279 | 1 | US |
| 28.4043 | 2020-07-190 | 127 | DIBBS |
| 28.4043 | 2020-06-175 | 127 | DIBBS |
| 28.4043 | 2020-06-160 | 127 | DIBBS |
| 6625-00-235-4782 | 2020-05-143 | 1 | Philippines |
| 6625-00-235-4782 | 2020-02-50 | 1 | Philippines |
| 28.4043 | 2020-01-07 | 130 | DIBBS |
| 28.4043 | 2019-11-317 | 43 | DIBBS |
| 28.4043 | 2019-08-234 | 18 | DIBBS |
| 28.4043 | 2019-07-195 | 60 | DIBBS |
| 28.4043 | 2019-06-169 | 20 | DIBBS |
| 28.4043 | 2019-02-45 | 38 | DIBBS |
| 6625-00-235-4782 | 2018-09-248 | 51 | DIBBS |
| 6625-00-235-4782 | 2018-08-214 | 28 | DIBBS |
| 6625-00-235-4782 | 2018-05-130 | 12 | DIBBS |
| 6625-00-235-4782 | 2017-04-107 | 18 | DIBBS |
| 6625-00-235-4782 | 2017-04-100 | 140 | DIBBS |
| 6625-00-235-4782 | 2017-04-95 | 18 | DIBBS |
| 6625-00-235-4782 | 2017-03-83 | 1 | US |
| 6625-00-235-4782 | 2017-03-72 | 151 | DIBBS |
| 6625-00-235-4782 | 2017-03-61 | 151 | DIBBS |
| 6625-00-235-4782 | 2017-02-44 | 198 | DIBBS |
| 6625-00-235-4782 | 2017-02-33 | 198 | DIBBS |
| 6625-00-235-4782 | 2016-12-350 | 127 | DIBBS |
| 6625-00-235-4782 | 2016-12-339 | 127 | DIBBS |
| AN3203V30 | 2016-04-105 | 1 | United States |
| AN3203V30 | 2016-04-105 | 2 | United States |
| AN3203V30 | 2016-01-11 | 1 | United States |
| 6625-00-235-4782 | 2015-12-352 | 51 | DIBBS |
| 6625-00-235-4782 | 2015-12-341 | 51 | DIBBS |
| 6625-00-235-4782 | 2015-10-296 | 1 | United States |
| AN3203V30 | 2015-10-293 | 1 | United States |
| 6625-00-235-4782 | 2014-12-349 | 1 | US |
| AN3203V30 | 2014-01-08 | 3 | United States |
| AN3203V30 | 2013-03-78 | 1 | AR |
| 6625-00-235-4782 | 2013-01-14 | 10 | TH |
| 6625-00-235-4782 | 2013-01-13 | 10 | TH |
| 6625-00-235-4782 | 2012-04-114 | 1 | MANUAL |
| AN3203V30 | 2012-04-114 | 1 | Taiwan |
| AN3203V30 | 2012-04-114 | 1 | Taiwan |
| AN3203V30 | 2011-02-33 | 2 | Malaysia |
| 6625-00-235-4782 | 2008-11-319 | 231 | DIBBS |
| AN3203V30 | 2008-07-197 | 2 | US |
| 6625-00-235-4782 | 2007-08-225 | 16 | US |
| 6625-00-235-4782 | 2007-05-145 | 68 | DIBBS |
Cross Reference | NSN 6625-00-235-4782
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 235-005 | 15309 | JEWELL INSTRUMENTS, LLC DBA MODUTEC USE CAGE CODE 33005 FOR |
| 254030 | 65092 | SOLARTRON ELECTRONICS INC WESTON INSTRUMENTS DIV |
| 28.4043 | 11707 | IDEAL PRECISION METER CO |
| 2B107-3 | 35104 | BACH-SIMPSON LTD |
| 560-707 | 28569 | HICKOK INCORPORATED |
| AN3203V30 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| AN3203V30 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MIL-A-6752A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-00-235-4782
Related Products | NSN 6625-00-235-4782
Technical Data | NSN 6625-00-235-4782
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | MAGNETIC |
| (NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE | NONELECTRONIC |

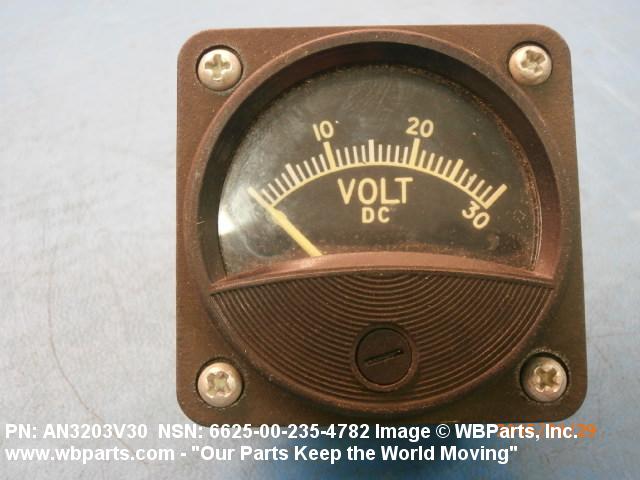

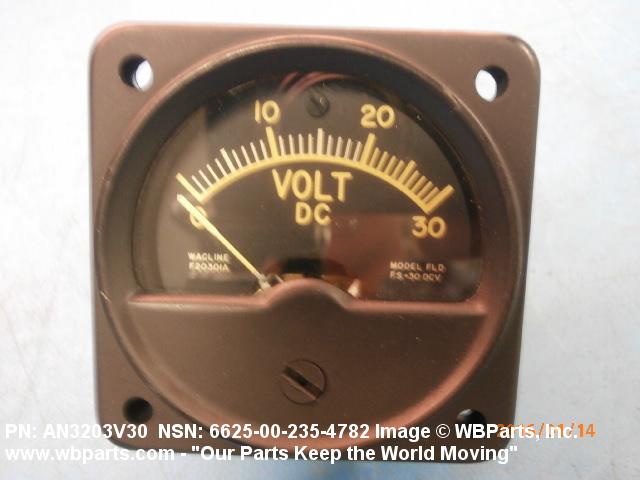

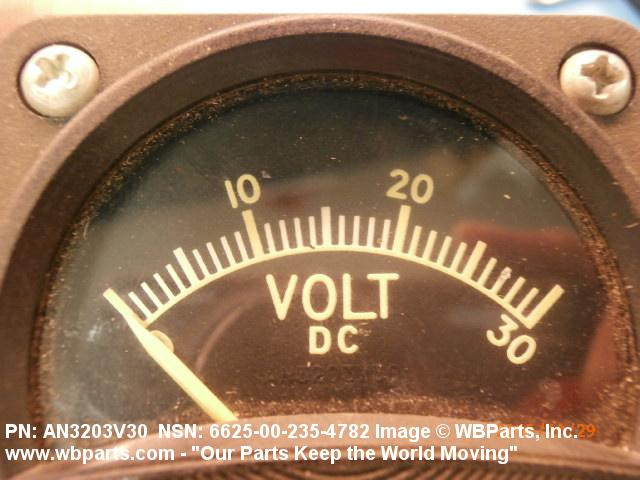

| INDICATOR TYPE | DIAL W/POINTER |
| MEASUREMENT RANGE | 0.0 TO 30.0 VOLTS, DC SINGLE INDICATOR SINGLE RANGE |
| ACCURACY IN PERCENT | -2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE |
| SCALE GRADUATION TYPE | LINEAR SINGLE INDICATOR SINGLE RANGE |
| SCALE DIVISION QUANTITY | 60 SINGLE INDICATOR SINGLE RANGE |
| POINTER COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| MOVEMENT TYPE | MOVING COIL, PERMANENT MAGNET |
| MOVEMENT SUSPENSION METHOD | JEWEL PIVOT BASE |

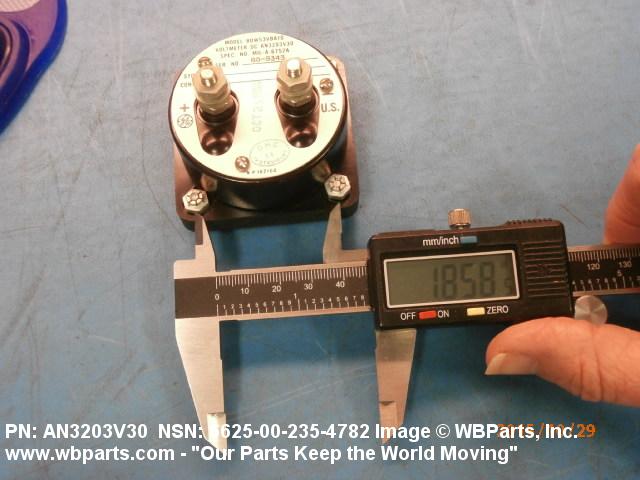

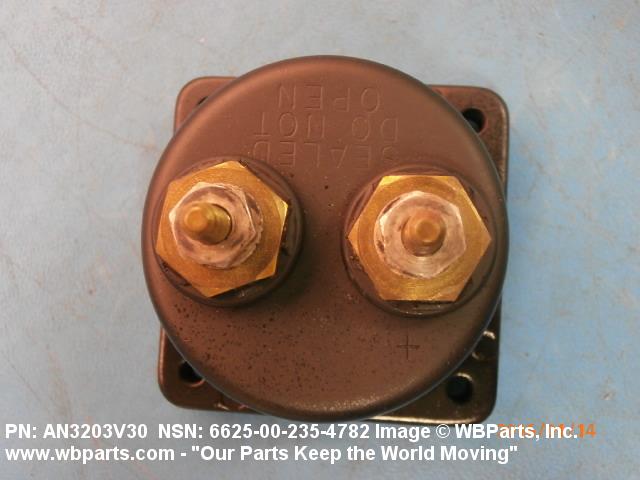

| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 SOLDER LUG AND 2 THREADED STUD |
| SENSITIVITY RATING | 1000.0 OHMS PER VOLT |
| DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 3000.0 |
| POWER SOURCE | EXTERNAL |
| CIRCUIT CURRENT FOR WHICH DESIGNED | DC |
| STYLE DESIGNATOR | C2 RECTANGULAR FLUSH MTG |

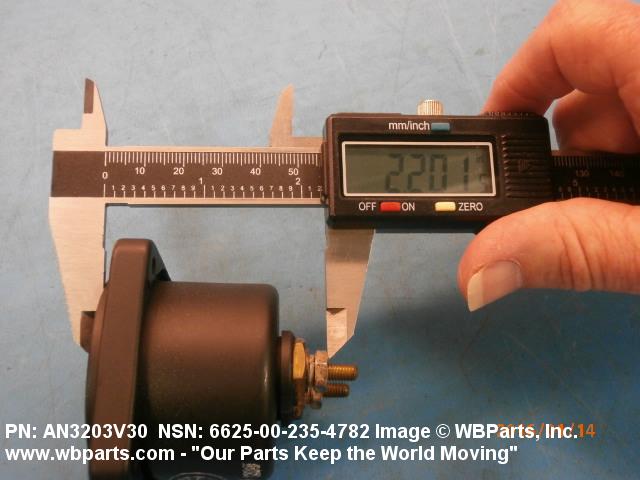

| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 2.060 INCHES NOMINAL |

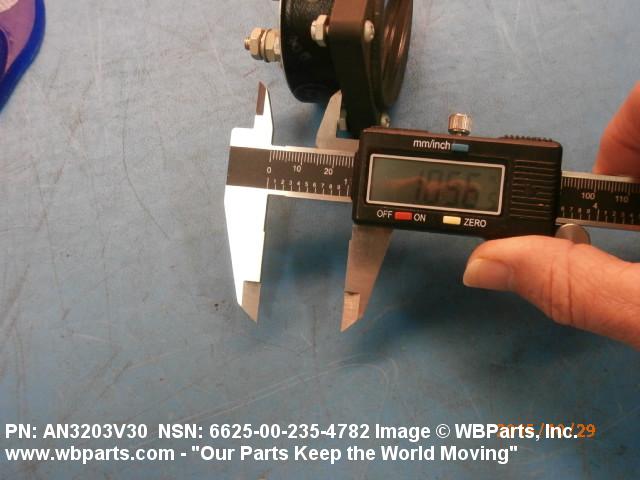

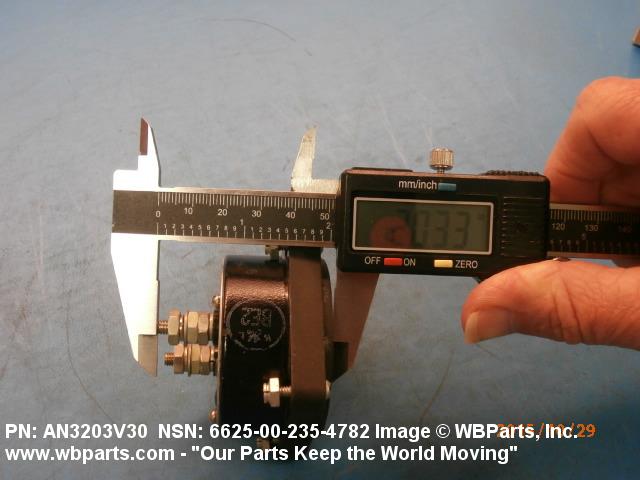

| METER DEPTH BEHIND MOUNTING FLANGE | 1.068 INCHES NOMINAL |

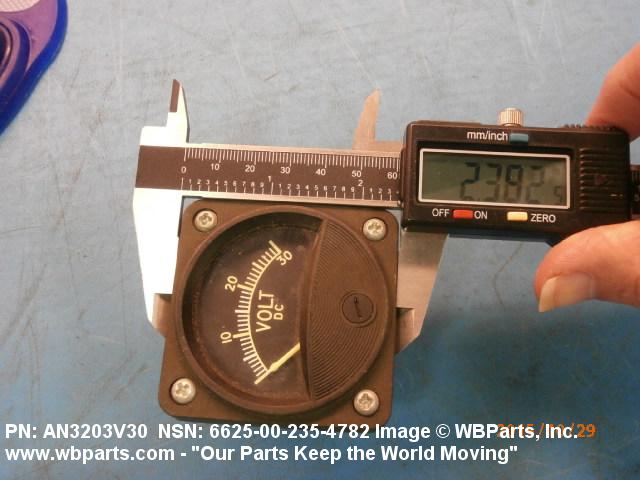

| OVERALL HEIGHT | 2.375 INCHES NOMINAL |
| OVERALL LENGTH | 2.318 INCHES NOMINAL |

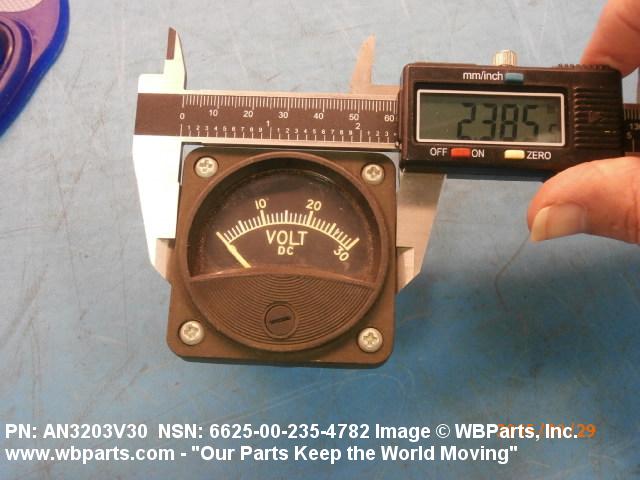

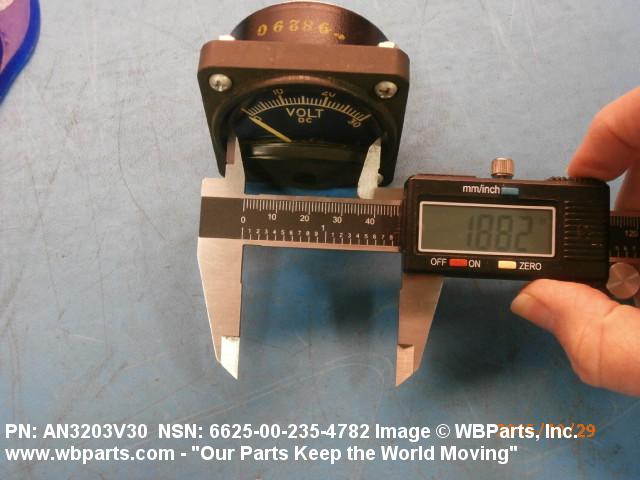

| OVERALL WIDTH | 2.375 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 SCREW AND 4 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.170 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | E3 FOUR HOLE/STUD RECTANGULAR/SQUARE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.856 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.856 INCHES NOMINAL |
| MATERIAL | STEEL |
| SURFACE TREATMENT | CHROMATE |
| NUCLEAR HARDNESS CRITICAL FEATURE | NONHARDENED |
| ENVIRONMENTAL PROTECTION | AIRTIGHT AND DUST RESISTANT AND FUNGUS RESISTANT AND HEAT RESISTANT AND HUMIDITY RESISTANT AND SHOCK RESISTANT AND VIBRATION RESISTANT AND WATER RESISTANT |
| FURNISHED ITEMS AND QUANTITY | NUT P; LOCKWASHER 6; SEAL 1 |

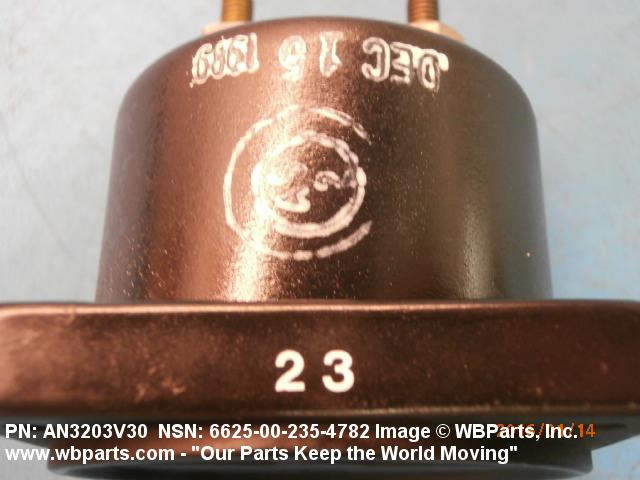

| SPECIAL MARKINGS | ON BACK,SEALED DO NOT OPEN |
