NSN 6625-00-224-2252 AA50734, A-A-50734, AN/PSM-37

Product Details | MULTIMETER

6625-00-224-2252 An instrument which is arranged to measure two or more different electrical quantities (such as volts, amps, and ohms) by means of associated circuits and switches. The value is usually expressed on a single calibrated dial or digital readout display. For items which are connected into a circuit and used chiefly to visually monitor an operation, see METER, MULTIPLE SCALE. See also COUNTER, ELECTRONIC, DIGITAL READOUT. Excludes BRIDGE (as modified).

Part Alternates: AA50734, A-A-50734, AN/PSM-37, ANPSM37, PDSANE696625190, PDSANE69-6625-190, 4D3573, 4D-3573, 6625-00-224-2252, 00-224-2252, 6625002242252, 002242252

Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
66	16 MAR 1970	00-224-2252	00794 ( MULTIMETER )

Drawings & Photos | NSN 6625-00-224-2252

Part Number	Request Date	QTY	Origin
AA50734	2021-10-293	1	US
6625-00-224-2252	2017-04-107	2	United States
6625-00-224-2252	2017-03-87	2	United States
PDSANE696625190	2017-03-82	2	United States
6625-00-224-2252	2012-08-223	1	US
ANPSM37	2011-11-313	1	US
ANPSM37	2010-03-82	1	United Kingdom

Cross Reference | NSN 6625-00-224-2252

Part Number	Cage Code	Manufacturer

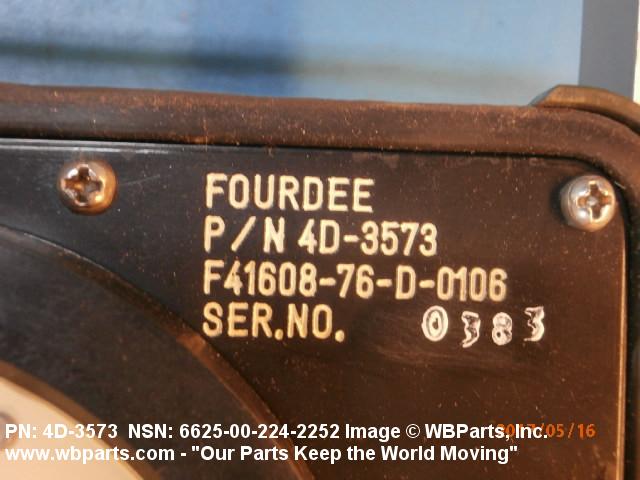

4D-3573	07661	SYSTEMS AND ELECTRONICS INC
A-A-50734	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES

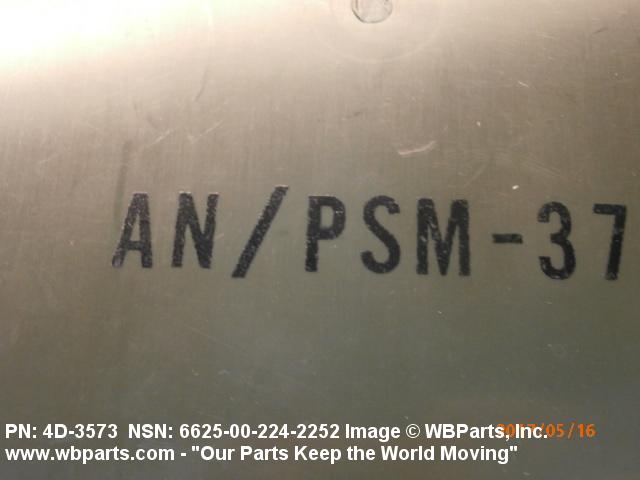

AN/PSM-37	80058	JOINT ELECTRONICS TYPE DESIGNATION SYSTEM
PDSANE69-6625-190	98750	SAN ANTONIO AIR LOGISTICS CENTER
PDSANE69-6625-190	98752	WARNER ROBINS AIR LOGISTICS CENTER

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6625-00-224-2252

Compare

Related Products | NSN 6625-00-224-2252

6625-00-224-2255, 6625-00-224-2259, 6625-00-224-2260, 6625-00-224-2267, 6625-00-224-2268

Technical Data | NSN 6625-00-224-2252

Characteristic	Specifications

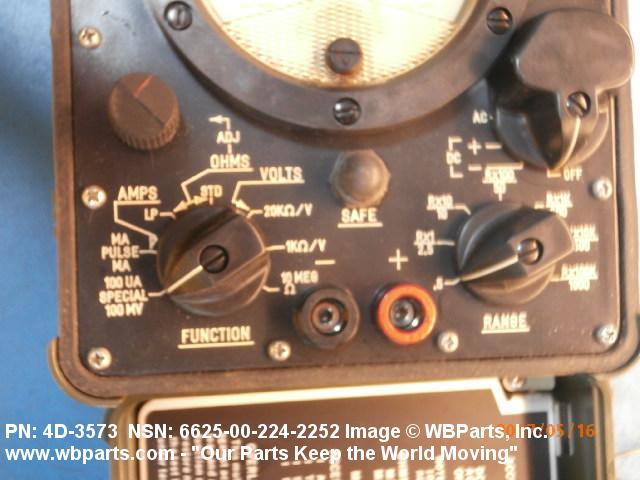

INSTALLATION DESIGN	HAND HELD
(NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE	ELECTRONIC, SOLID STATE

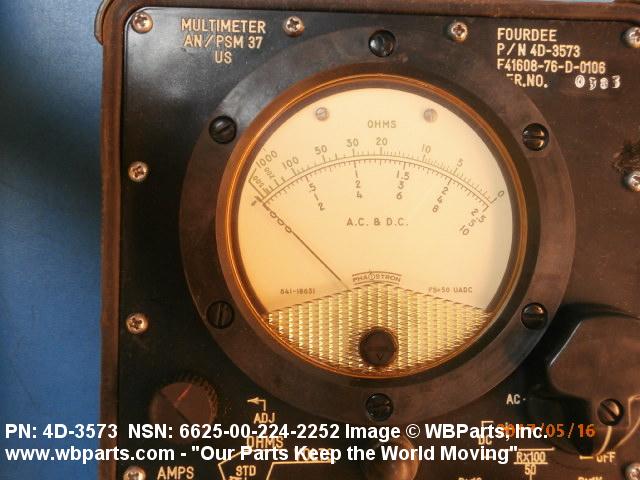

INDICATOR TYPE	DIAL W/POINTER
MEASUREMENT RANGE	0.0 TO 1.0 AMPERES SINGLE INDICATOR 1ST RANGE 0.0 TO 1.0 KILOVOLTS SINGLE INDICATOR 2ND RANGE 0.0 TO 100.0 MEGOHMS SINGLE INDICATOR 3RD RANGE
ACCURACY IN PERCENT	-3.0 TO 7.0 AT FULL SCALE SINGLE INDICATOR ALL RANGES
SCALE GRADUATION TYPE	NONLINEAR SINGLE INDICATOR ALL RANGES
POINTER COLOR	BLACK SINGLE INDICATOR ALL RANGES
DIAL SCALE MARKING COLOR	BLACK SINGLE INDICATOR ALL RANGES

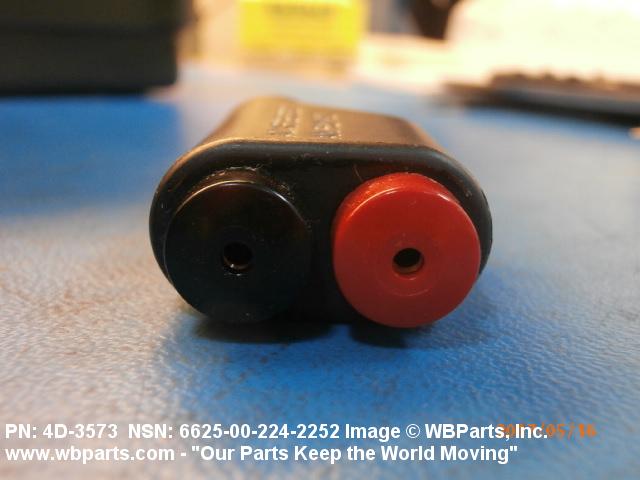

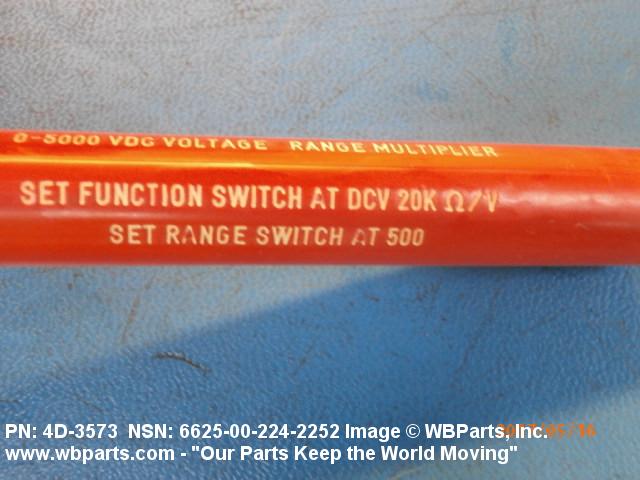

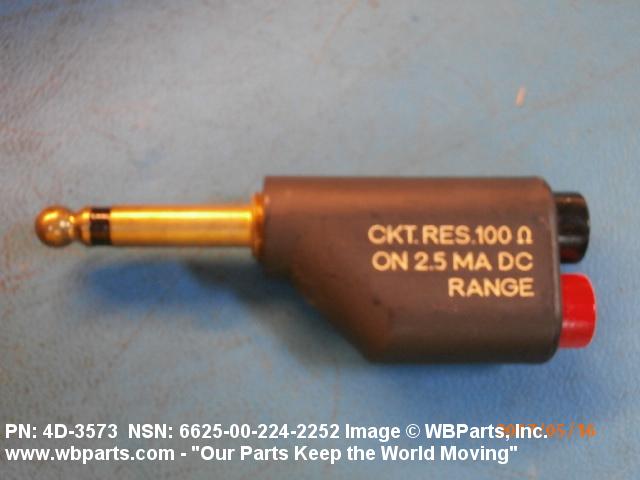

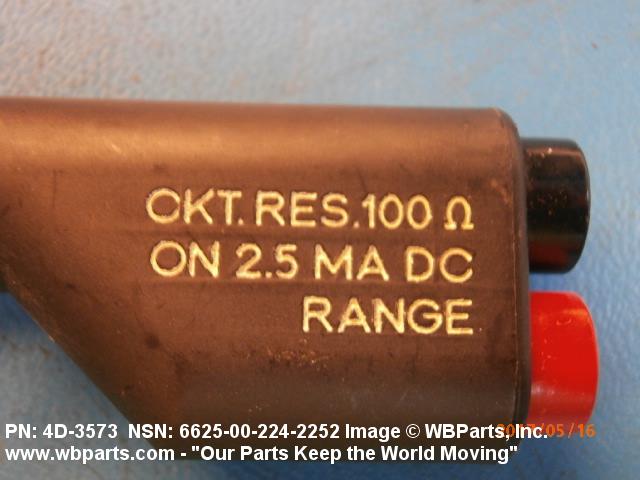

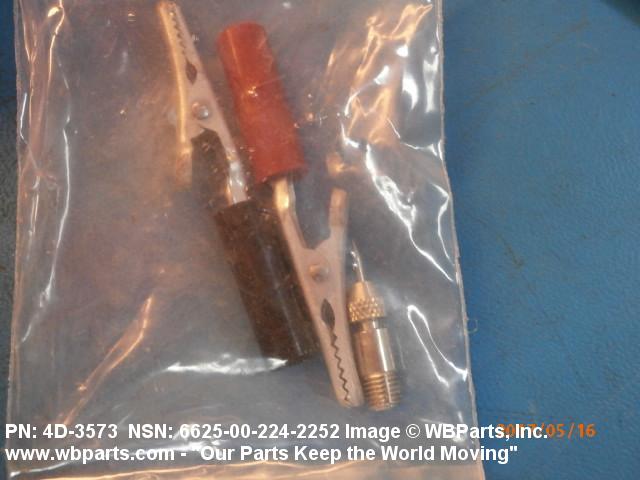

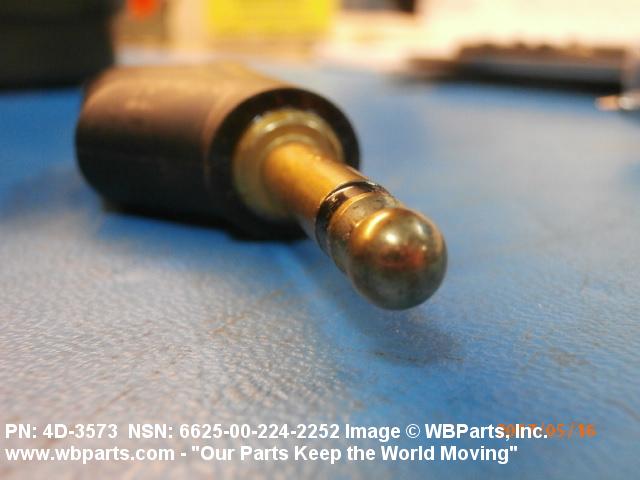

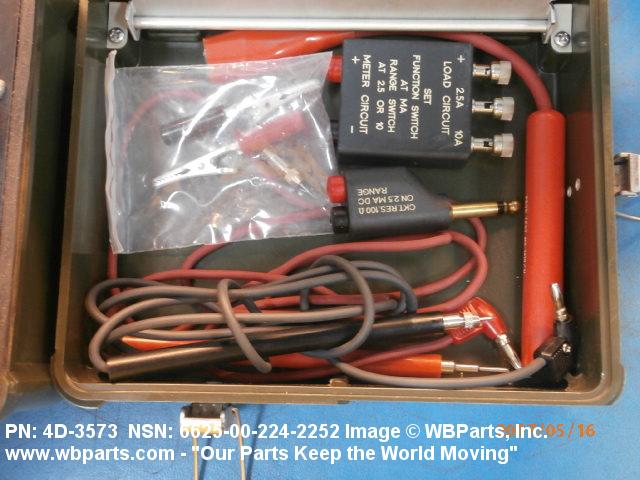

CIRCUIT ATTACHMENT METHOD AND QUANTITY	2 CLIP AND 2 JACK TIP AND 1 PHONE JACK AND 1 TEST PROD AND 2 WIRE LEAD
SENSITIVITY RATING	50.0 MILLIAMPERES
POWER SOURCE	INTERNAL
CIRCUIT CURRENT FOR WHICH DESIGNED	DC
STYLE DESIGNATOR	D10 HAND-HELD
OVERALL DEPTH	5.000 INCHES NOMINAL
OVERALL LENGTH	8.500 INCHES NOMINAL
OVERALL WIDTH	7.000 INCHES NOMINAL
MATERIAL	PLASTIC
NUCLEAR HARDNESS CRITICAL FEATURE	NONHARDENED
FEATURES PROVIDED	ELECTRICAL OVERLOAD PROTECTION
MANUFACTURERS CODE	58536
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	A-A-50734
MANUFACTURERS CODE	98752
DESIGN CONTROL REFERENCE	PDSANE69-6625-190

Restrictions/Controls & Freight Information | NSN 6625-00-224-2252

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	Y	COMMUNICATION/ELECTRONIC EQUIPMENT AND PARTS
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061700	ELEC APPLIANCES/INSTRUMENTS NOI
Less than car load rating	D	200
Less than truck load rating	J	100.2
Water commodity Code	738	unknown
Originating Activity Code	SE	San Antonio Air Logistics Center Kelly AFB, TX 78241-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Q	Extremely fragile items including delicate instruments.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	3	Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices).

Management | NSN 6625-00-224-2252

Air Force

Category	Code	Description
Materiel Management Aggregation Code	RH	TG:AUTO TEST EQUIPMENT/AUTO TEST SYSTEMS (ATE/ATS) (FSC RESIDUAL MMAC)
Price Validation	X	The current standard price has been validated and the previous price was erroneous. The item was overpriced and the contractor has refunded the overcharge or DoD activities did not actually pay the previous price. The price paid is within the analyzed acceptable range. If the difference from the previous price exceeds $99.99, or if the price change exceeds 500 percent and the extended value of any affected transaction exceeds $99.99, then reverse-post procedures will apply where the stock fund has overcharged unit O&M Funds. These corrections will be limited to the current fiscal year. ZOP or Standard Price challenges are permissible, but should be supported by adequate justification
Budget Code	Y	variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly.
Source of Supply	FLZ	Warner Robins Air Logistics Center Robins AFB, GA 31098-5609
Agency	DF	Department of the Air Force
Service Organization	L	Lead Service - 22 (Repairable)
Reparability	U	AF Equipment Management System (AFEMS)
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	Y	COMMUNICATION/ELECTRONIC EQUIPMENT AND PARTS
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
