NSN 6625-00-124-2258 11200924, 1120-0924, 656B
Product Details | MULTIPLE SCALE METER
6625-00-124-2258 An instrument with two or more different scales measuring different quantities, usually on a single calibrated dial or digital readout display. It is intended for visually monitoring an operation. The meter must be permanently connected into an appropriate electronic circuit. Excludes: AMMETER; VOLTMETER; WATTMETER and METER, ELECTRICAL FREQUENCY.
Part Alternates: 11200924, 1120-0924, 656B, 6625-00-124-2258, 00-124-2258, 6625001242258, 001242258
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 06 NOV 1968 | 00-124-2258 | 62222 ( METER, MULTIPLE SCALE ) |
Drawings & Photos | NSN 6625-00-124-2258
Cross Reference | NSN 6625-00-124-2258
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-00-124-2258
Related Products | NSN 6625-00-124-2258
Technical Data | NSN 6625-00-124-2258
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | NONMAGNETIC |
| (NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE | NONELECTRONIC |
| INDICATOR TYPE | DIAL W/POINTER |
| MEASUREMENT RANGE | -15.0 TO 3.0 DECIBELS ABOVE OR BELOW ONE MILLIWATT SINGLE INDICATOR 1ST RANGE 0.0 TO 1.0 VOLTS, ROOT MEAN SQUARE SINGLE INDICATOR 2ND RANGE 0.0 TO 3.0 VOLTS, ROOT MEAN SQUARE SINGLE INDICATOR 3RD RANGE |
| ACCURACY IN PERCENT | -2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR ALL RANGES |
| SCALE GRADUATION TYPE | NONLINEAR SINGLE INDICATOR 1ST RANGE LINEAR SINGLE INDICATOR 2ND RANGE LINEAR SINGLE INDICATOR 3RD RANGE |
| SCALE DIVISION QUANTITY | 50 SINGLE INDICATOR 2ND RANGE 32 SINGLE INDICATOR 3RD RANGE |
| POINTER COLOR | RED SINGLE INDICATOR ALL RANGES |
| DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR ALL RANGES |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR ALL RANGES |
| MOVEMENT TYPE | MOVING COIL, PERMANENT MAGNET |
| MOVEMENT SUSPENSION METHOD | JEWEL PIVOT BASE |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 TURRET |
| SENSITIVITY RATING | 1.5 MILLIAMPERES |
| SCALE SELECTION METHOD | TERMINAL |
| POWER SOURCE | EXTERNAL |
| CIRCUIT CURRENT FOR WHICH DESIGNED | AC |

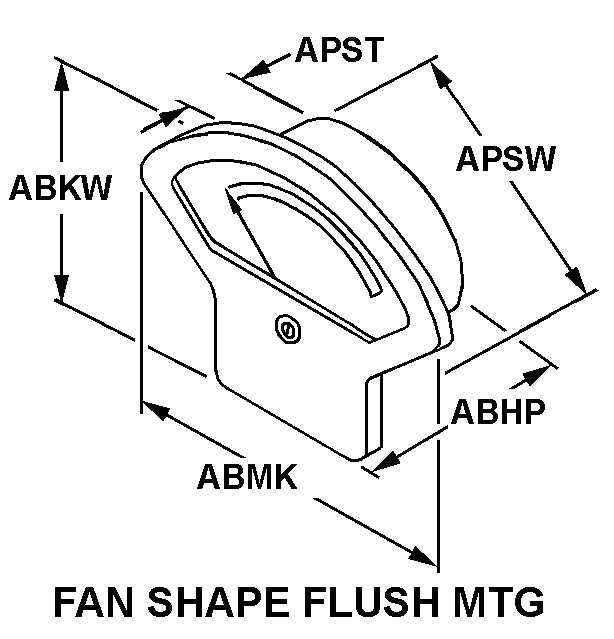

| STYLE DESIGNATOR | C3 FAN SHAPE FLUSH MTG |
| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 2.125 INCHES NOMINAL |
| METER DEPTH BEHIND MOUNTING FLANGE | 1.375 INCHES NOMINAL |
| OVERALL HEIGHT | 3.313 INCHES NOMINAL |
| OVERALL LENGTH | 1.563 INCHES NOMINAL |
| OVERALL WIDTH | 3.563 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 FLANGE |
| MATERIAL | PLASTIC |
| NUCLEAR HARDNESS CRITICAL FEATURE | NONHARDENED |
| ENVIRONMENTAL PROTECTION | DUST RESISTANT |
| SPECIAL MARKINGS | 50 OHMS |
| FEATURES PROVIDED | MIRROR SCALE AND ZERO ADJUSTER |
