NSN 6620-01-601-4314 25-901-3000-1/4, 25901300014, 259013000PSIKPA
Product Details | PRESSURE INDICATOR
6620-01-601-4314 An indicator which indicates the pressure of a gas or liquid in a given system.20266200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: 25-901-3000-1/4, 25901300014, 259013000PSIKPA, 6620-01-601-4314, 01-601-4314, 6620016014314, 016014314
Instruments and Laboratory Equipment | Engine Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 19 JAN 2012 | 01-601-4314 | 03378 ( INDICATOR, PRESSURE ) |

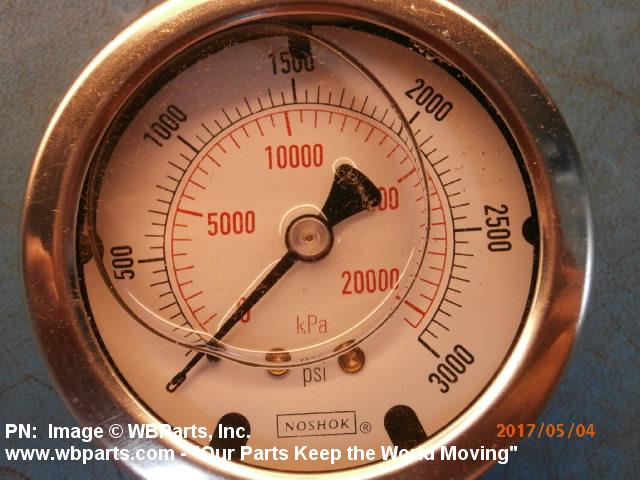

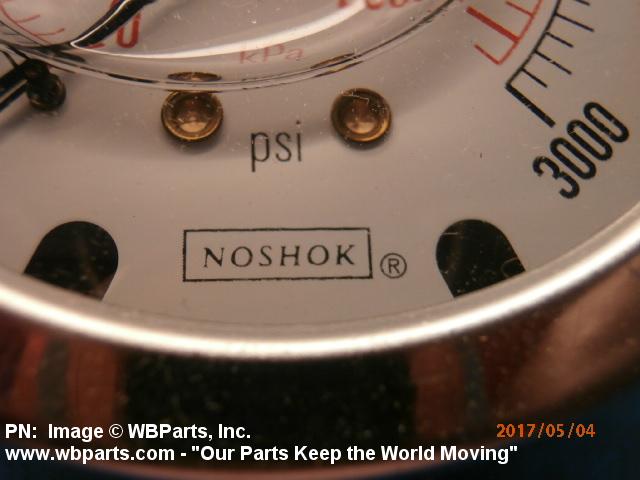

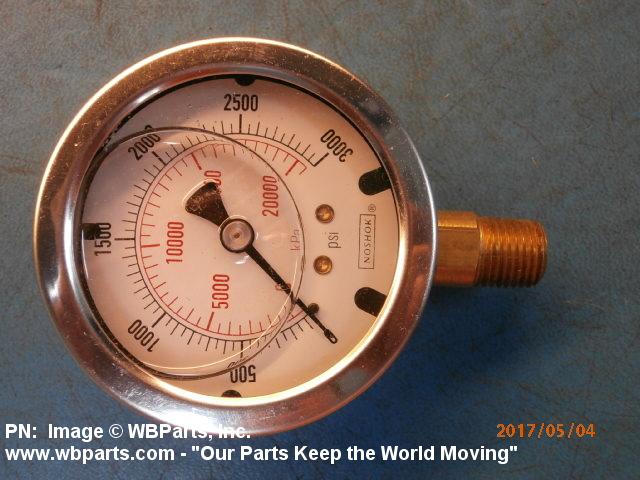

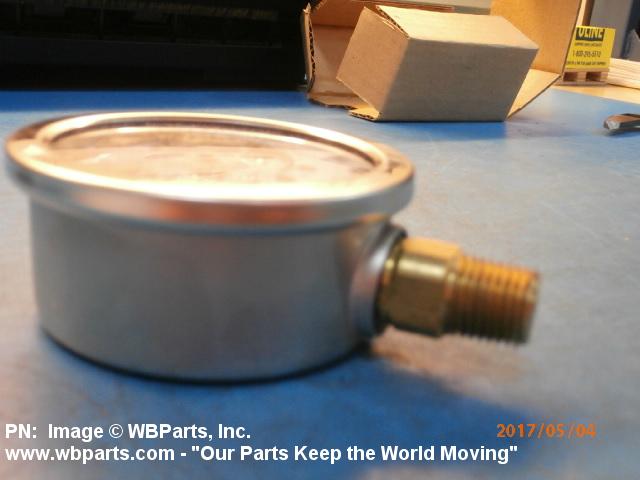

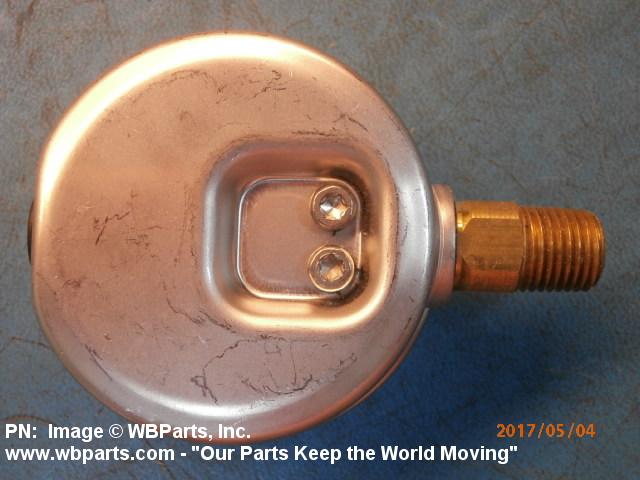

Drawings & Photos | NSN 6620-01-601-4314
Demand History | NSN 6620-01-601-4314
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 25-901-3000-PSI/KPA | 2024-10-303 | 1 | DIBBS |
| 25-901-3000-PSI\KPA | 2024-10-303 | 1 | DIBBS |
| 25-901-3000-PSI/KPA | 2024-04-116 | 1 | DIBBS |
| 25-901-3000-PSI\KPA | 2024-04-116 | 1 | DIBBS |
| 25-901-3000-PSI/KPA | 2023-10-295 | 1 | DIBBS |
| 25-901-3000-PSI\KPA | 2023-10-295 | 1 | DIBBS |
| 25-901-3000-PSI\KPA | 2019-03-87 | 6 | DIBBS |
| 6620-01-601-4314 | 2017-03-70 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6620-01-601-4314
Technical Data | NSN 6620-01-601-4314
| Characteristic | Specifications |
|---|---|
| CASE MATERIAL | STEEL COMP 304 |

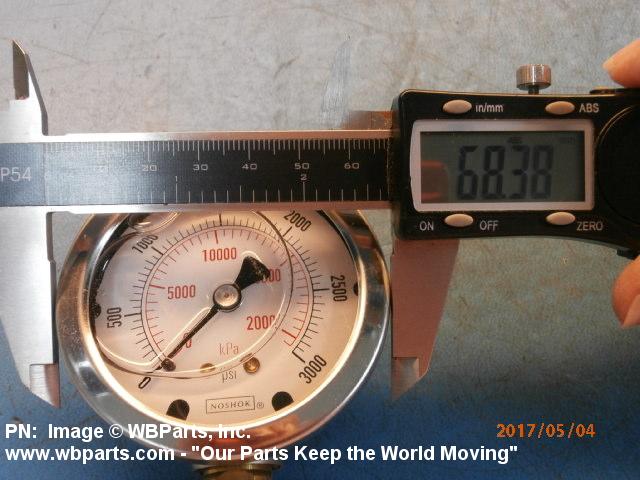

| DIAMETER | 69.0 MILLIMETERS NOMINAL |
| HEIGHT | 83.0 MILLIMETERS NOMINAL |

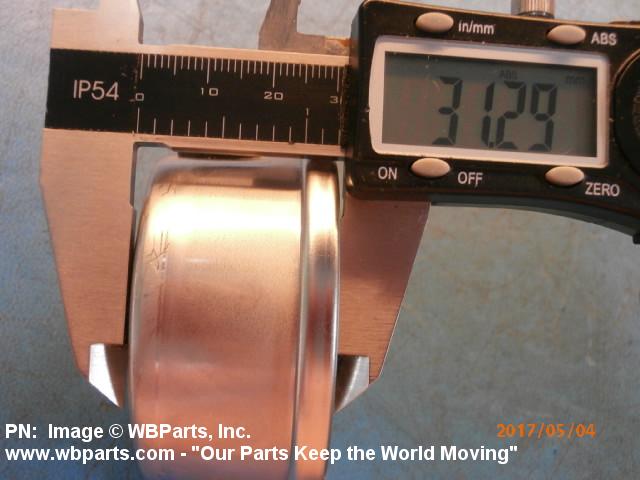

| DEPTH | 32.0 MILLIMETERS NOMINAL |

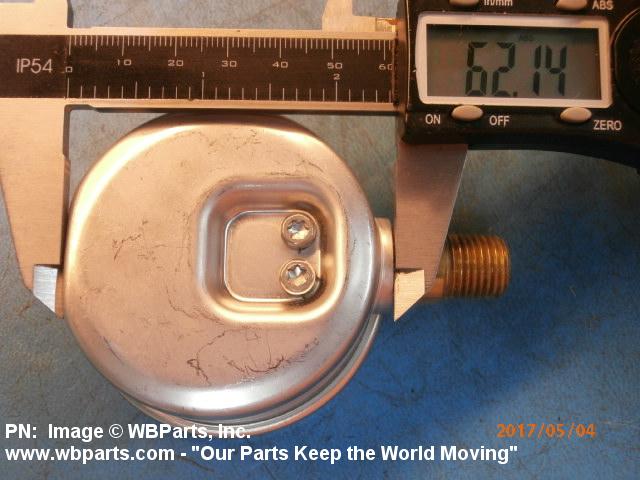

| DIAL HEIGHT | 62.0 MILLIMETERS NOMINAL |
| SPECIAL FEATURES | AMBIENT TEM;: -20 DEG TO 60 DEG C |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | PRESSURE GAUGE |
Restrictions/Controls & Freight Information | NSN 6620-01-601-4314
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
