NSN 6620-01-598-2271 A026G500 , A028X493, P405550011
Product Details | PRESSURE TRANSMITTER
6620-01-598-2271 An instrument that senses, measures and converts pressure of a gas or fluid into electrical signals to be displayed in Pounds per Square Inch (PSI) or the equivalent. The item contains an input pressure port, electrical output connection and may include an output pressure port. See also TRANSDUCER, MOTIONAL PICKUP for items with a linear motional input and electrical output to be displayed in other than PSI or the equivalent.20266200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: A026G500 , A028X493, P405550011, P4055-5001-1, 0420150, 04-20150, 6620-01-598-2271, 01-598-2271, 6620015982271, 015982271
Instruments and Laboratory Equipment | Engine Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 13 JUL 2011 | 01-598-2271 | 03375 ( TRANSMITTER, PRESSURE ) |

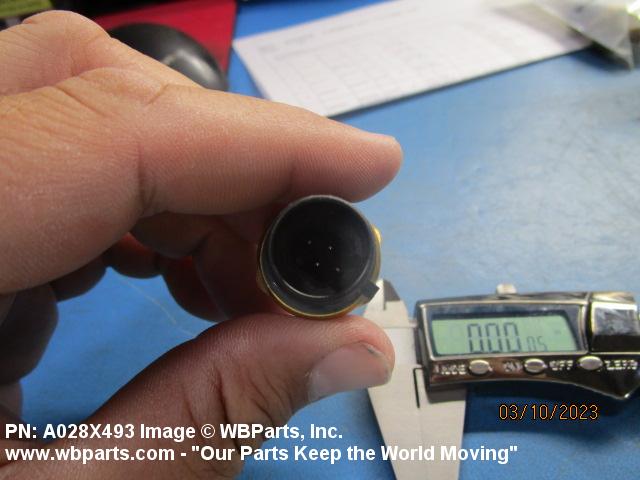

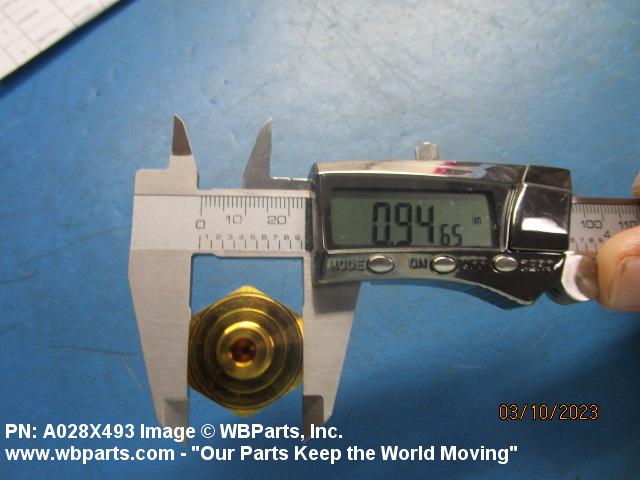

Drawings & Photos | NSN 6620-01-598-2271
Demand History | NSN 6620-01-598-2271
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6620-01-598-2271 | 2024-10-275 | 10 | United States |
| A028X493 | 2024-08-236 | 1 | United States |
| 6620-01-598-2271 | 2024-07-208 | 2 | United States |
| 6620-01-598-2271 | 2024-07-208 | 2 | United States |
| 6620-01-598-2271 | 2024-06-159 | 3 | US |
| A026G500 | 2024-01-10 | 3 | United States |
| 6620-01-598-2271 | 2023-12-341 | 4 | US |
| 6620-01-598-2271 | 2023-12-341 | 4 | IQ |
| P405550011 | 2023-09-268 | 1 | US |
| A026G500 | 2023-02-46 | 6 | United States |
| A028X493 | 2023-02-46 | 6 | United States |
| 6620-01-598-2271 | 2023-01-17 | 1 | US |
| 6620-01-598-2271 | 2023-01-13 | 2 | United States |
| 6620-01-598-2271 | 2021-10-284 | 5 | US |
| A026G500 | 2019-07-192 | 121 | DIBBS |
| 6620-01-598-2271 | 2018-12-360 | 83 | DIBBS |
| 6620-01-598-2271 | 2018-04-116 | 118 | DIBBS |
| 6620-01-598-2271 | 2017-11-333 | 10 | US |
| 6620-01-598-2271 | 2017-10-288 | 87 | DIBBS |
| 6620-01-598-2271 | 2017-09-249 | 47 | DIBBS |
| 6620-01-598-2271 | 2017-06-157 | 77 | DIBBS |
| 6620-01-598-2271 | 2016-09-271 | 11 | DIBBS |
| 6620-01-598-2271 | 2015-11-315 | 17 | DIBBS |
| 6620-01-598-2271 | 2015-07-190 | 1 | United States |
| 6620-01-598-2271 | 2015-03-68 | 53 | DIBBS |
| 6620-01-598-2271 | 2014-08-231 | 36 | DIBBS |
| 6620-01-598-2271 | 2012-06-157 | 131 | DIBBS |
| 6620-01-598-2271 | 2012-04-93 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6620-01-598-2271
Related Products | NSN 6620-01-598-2271
Technical Data | NSN 6620-01-598-2271
| Characteristic | Specifications |
|---|---|
| END ITEM IDENTIFICATION | 6115-01-561-7329 |
| CONTACT QUANTITY | 3 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | SENDER, OIL PRESSURE |
| MOUNTING DEVICE QUANTITY | 1 |
| MOUNTING METHOD | EXTERNAL PIPE THREAD 1/8 NPT |
| OVERALL LENGTH | 43.7 MILLIMETERS NOMINAL |
| VOLTAGE RATING | 7.0 VOLTS MAXIMUM INPUT |
| CURRENT TYPE | DC |
Restrictions/Controls & Freight Information | NSN 6620-01-598-2271
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058280 | SCIENTIFIC INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | D | 200.0 |
| Water commodity Code | 652 | unknown |
| Originating Activity Code | CL | U.S. Army Communications-Electronics Fort Monmouth, NJ 07703-5006 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6620-01-598-2271
Army
Air Force
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | ID | TG:GENERATORS AND GENERATOR SETS, GROUND |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
