NSN 6620-01-549-6653 41802064, 418-02064, 01-549-6653
Product Details | PRESSURE TRANSMITTER
6620-01-549-6653 An instrument that senses, measures and converts pressure of a gas or fluid into electrical signals to be displayed in Pounds per Square Inch (PSI) or the equivalent. The item contains an input pressure port, electrical output connection and may include an output pressure port. See also TRANSDUCER, MOTIONAL PICKUP for items with a linear motional input and electrical output to be displayed in other than PSI or the equivalent.20266200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: 41802064, 418-02064, 6620-01-549-6653, 01-549-6653, 6620015496653, 015496653
Instruments and Laboratory Equipment | Engine Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 28 MAR 2007 | 01-549-6653 | 03375 ( TRANSMITTER, PRESSURE ) |

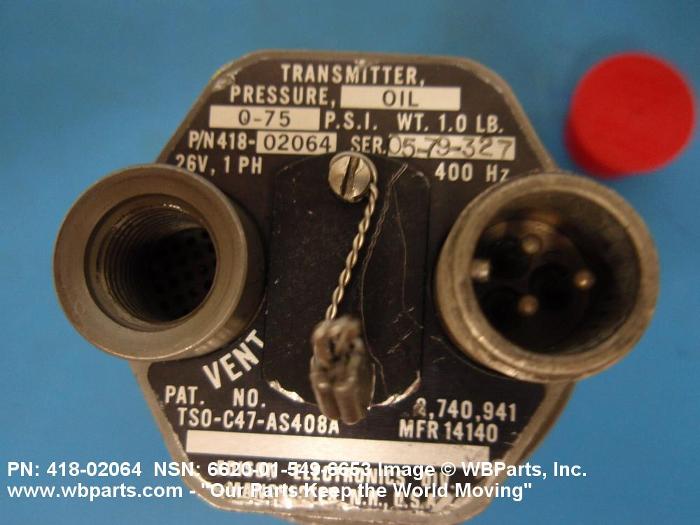

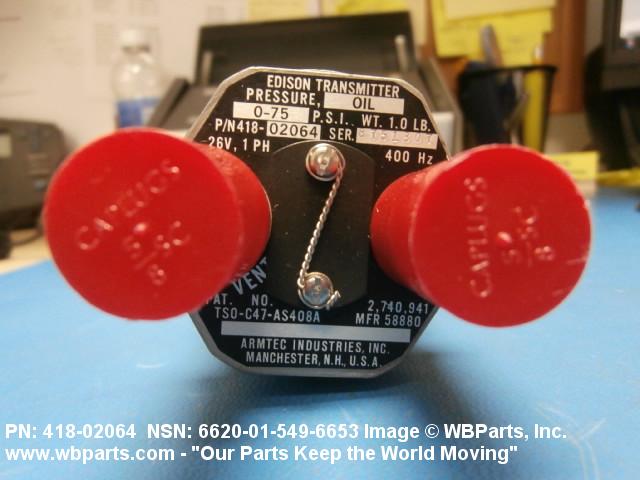

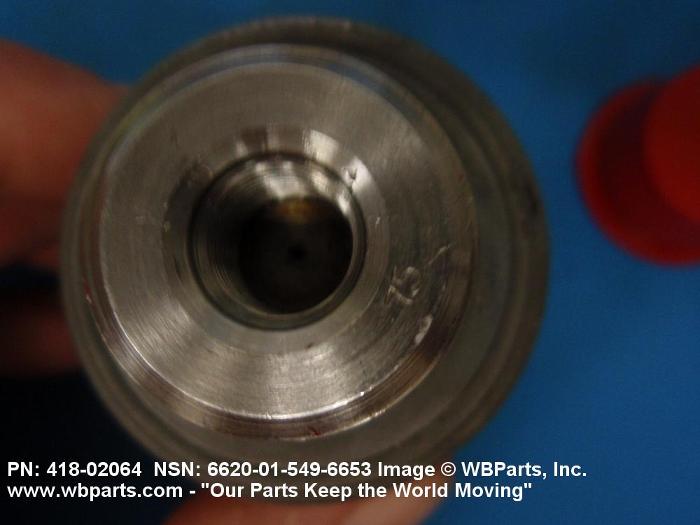

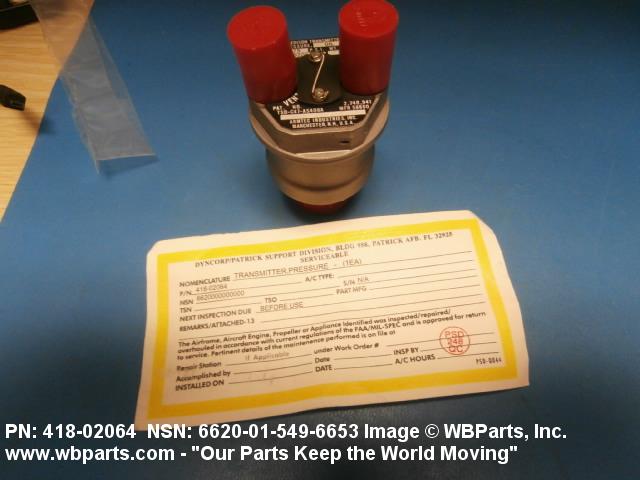

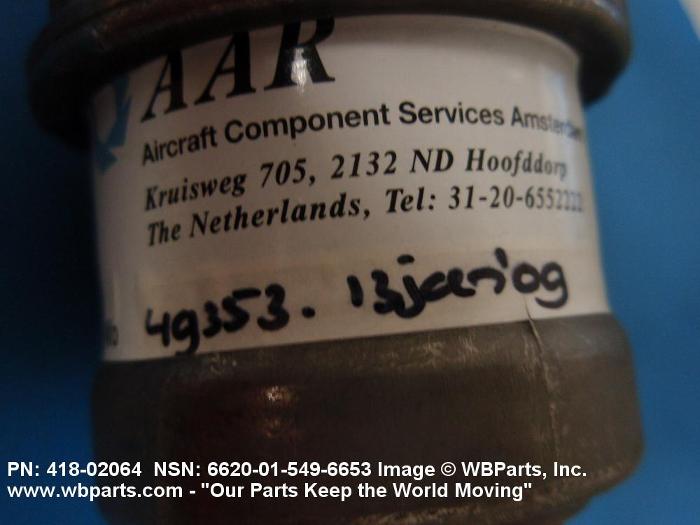

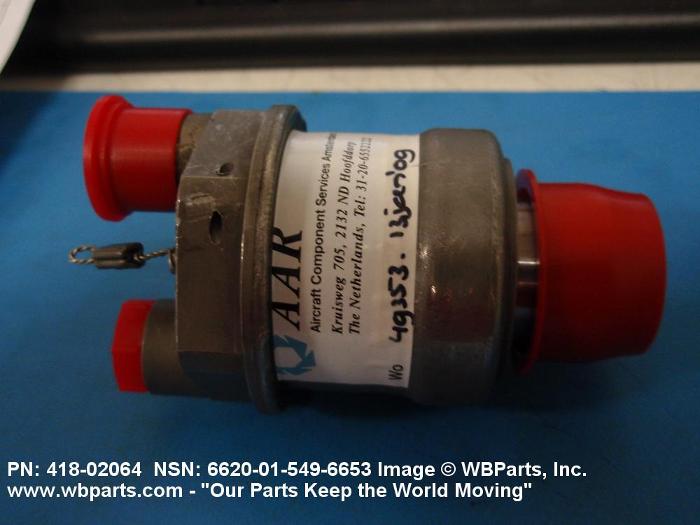

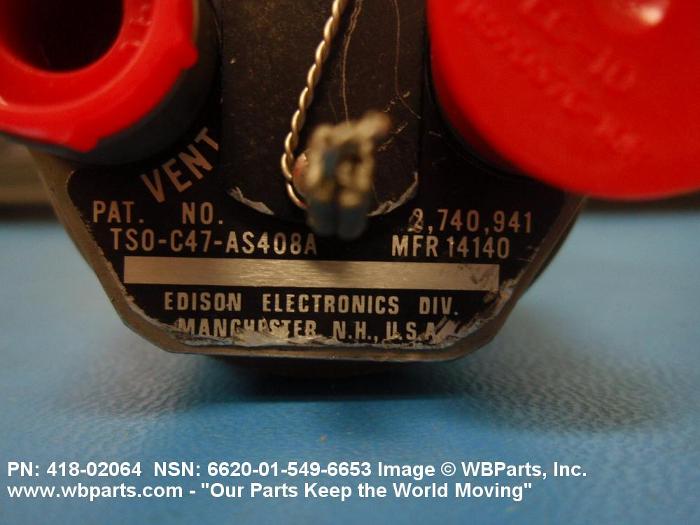

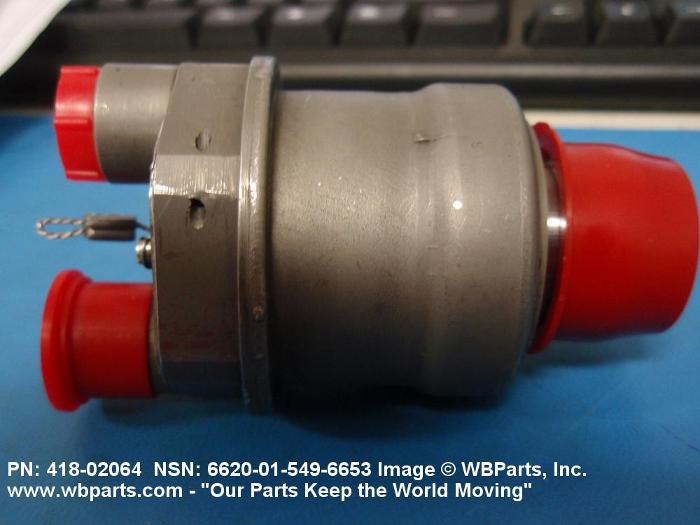

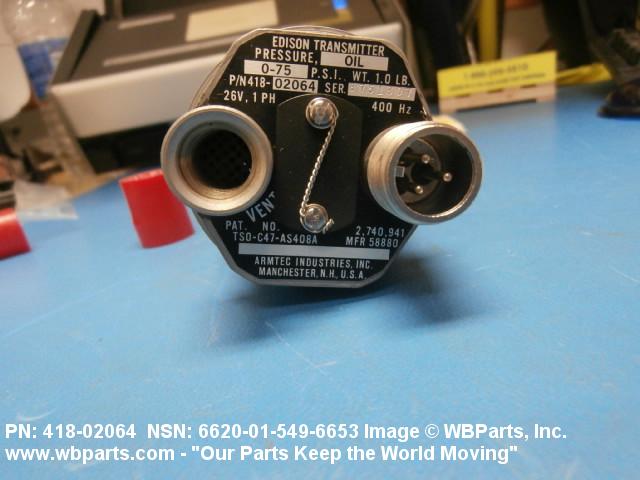

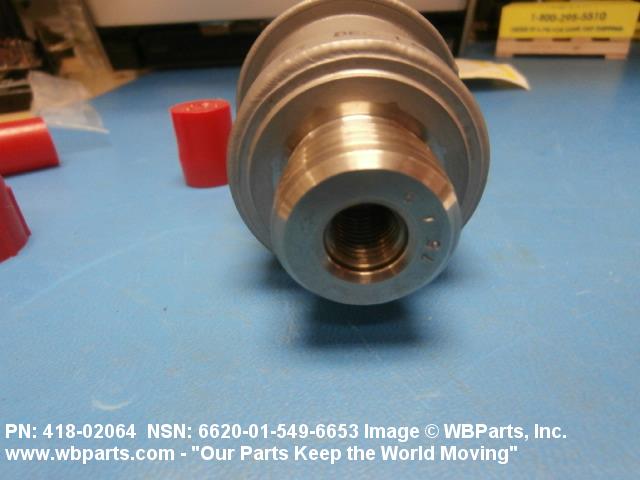

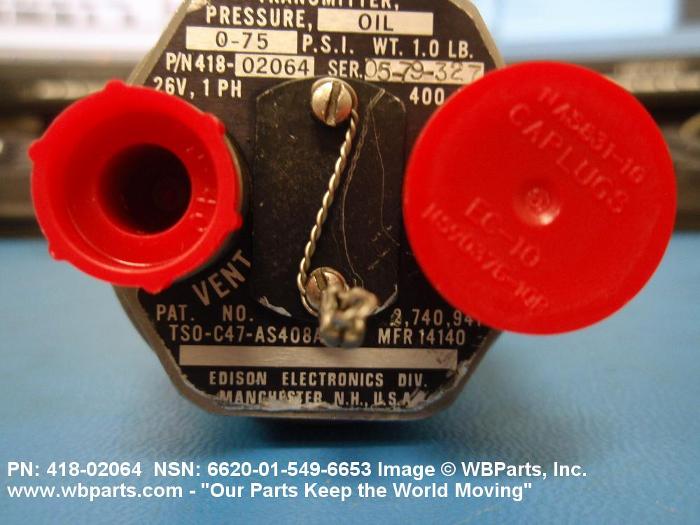

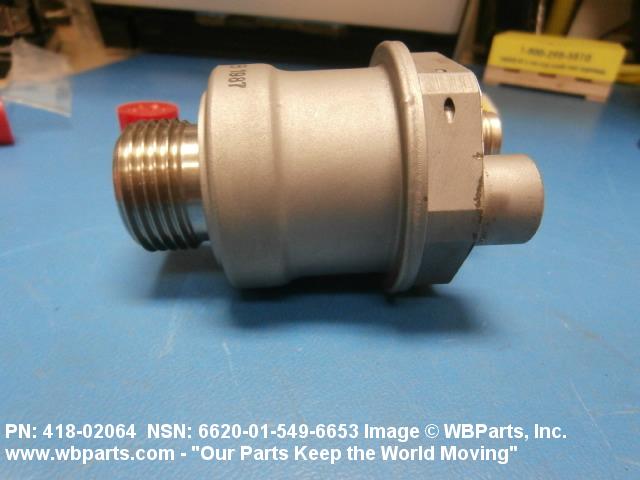

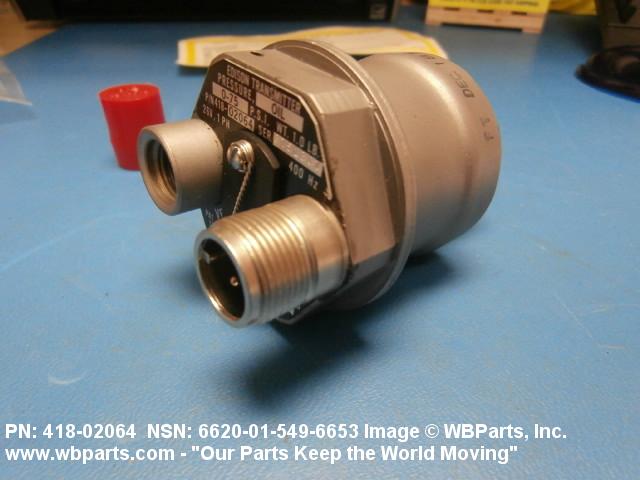

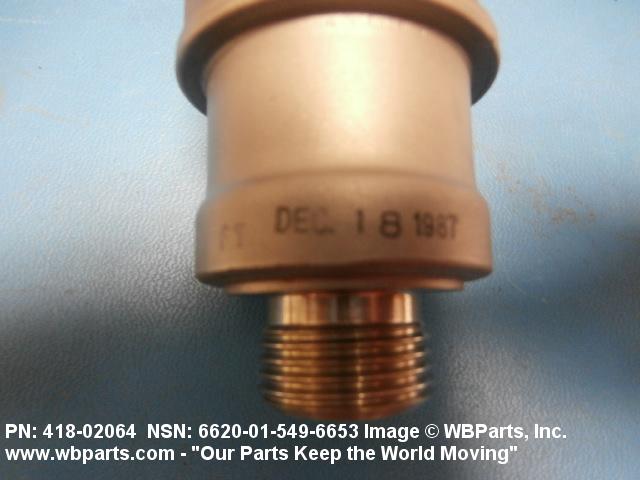

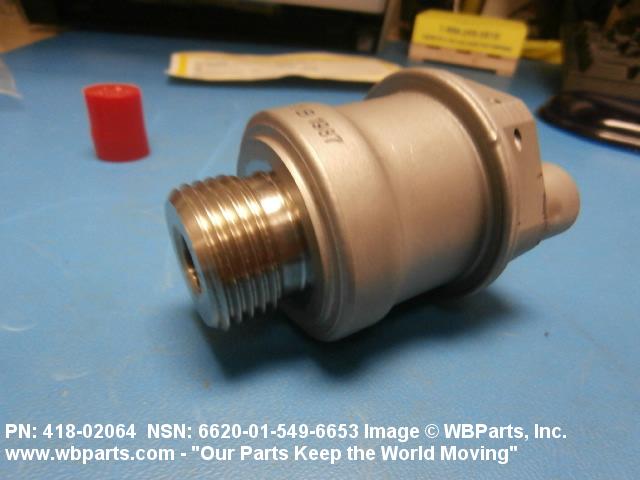

Drawings & Photos | NSN 6620-01-549-6653
Demand History | NSN 6620-01-549-6653
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 41802064 | 2023-10-286 | 6 | ES |
| 6620-01-549-6653 | 2022-07-187 | 1 | BR |
| 41802064 | 2022-03-62 | 1 | ID |
| 6620-01-549-6653 | 2022-02-42 | 1 | ES |
| 6620-01-549-6653 | 2021-02-57 | 1 | CA |
| 6620-01-549-6653 | 2016-03-76 | 2 | Spain |
| 6620-01-549-6653 | 2015-11-307 | 3 | Spain |
| 41802064 | 2013-01-29 | 1 | Indonesia |
| 41802064 | 2013-01-16 | 1 | Indonesia |
| 41802064 | 2013-01-11 | 1 | Indonesia |
| 6620-01-549-6653 | 2013-01-09 | 3 | United States |
| 41802064 | 2012-12-344 | 1 | Indonesia |
| 6620-01-549-6653 | 2011-06-171 | 1 | CO |
| 6620-01-549-6653 | 2011-01-26 | 1 | Thailand |
Cross Reference | NSN 6620-01-549-6653
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 418-02064 | 58880 | MEGGITT (NEW HAMPSHIRE), INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6620-01-549-6653
Technical Data | NSN 6620-01-549-6653
| Characteristic | Specifications |
|---|---|
| CURRENT TYPE | AC |
| VOLTAGE RATING | 26.0 VOLTS NOMINAL OUTPUT |
| SPECIAL FEATURES | VARIABLE RESISTANCE 10.50; 400 HZPOWER SUPPLY, FIXED INDUCTANCE 26 MH |
Restrictions/Controls & Freight Information | NSN 6620-01-549-6653
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
