NSN 6620-01-355-8175 PX410100SI, PX410-100SI, 01-355-8175
Product Details | PRESSURE TRANSMITTER
6620-01-355-8175 An instrument that senses, measures and converts pressure of a gas or fluid into electrical signals to be displayed in Pounds per Square Inch (PSI) or the equivalent. The item contains an input pressure port, electrical output connection and may include an output pressure port. See also TRANSDUCER, MOTIONAL PICKUP for items with a linear motional input and electrical output to be displayed in other than PSI or the equivalent.20266200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: PX410100SI, PX410-100SI, 6620-01-355-8175, 01-355-8175, 6620013558175, 013558175
Instruments and Laboratory Equipment | Engine Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 24 MAR 1992 | 01-355-8175 | 03375 ( TRANSMITTER, PRESSURE ) |

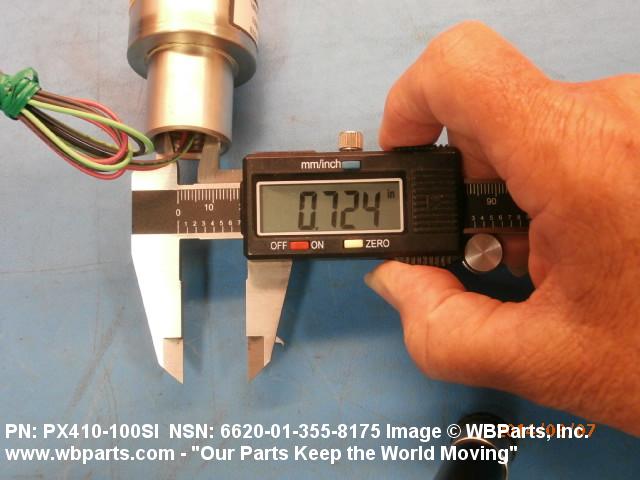

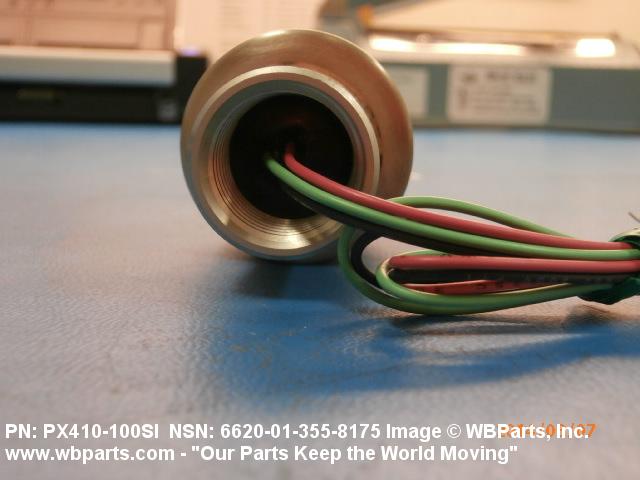

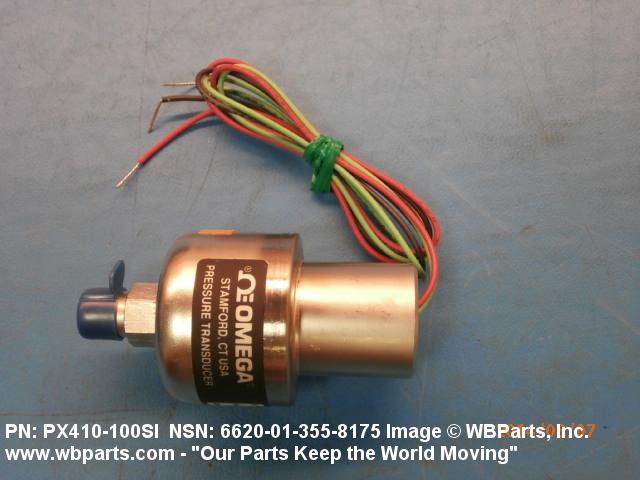

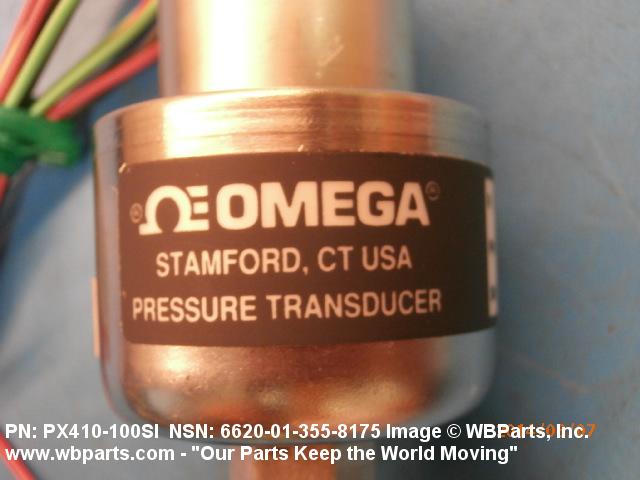

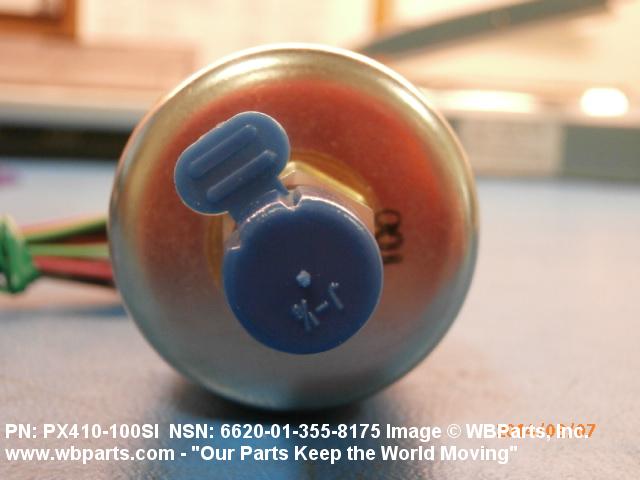

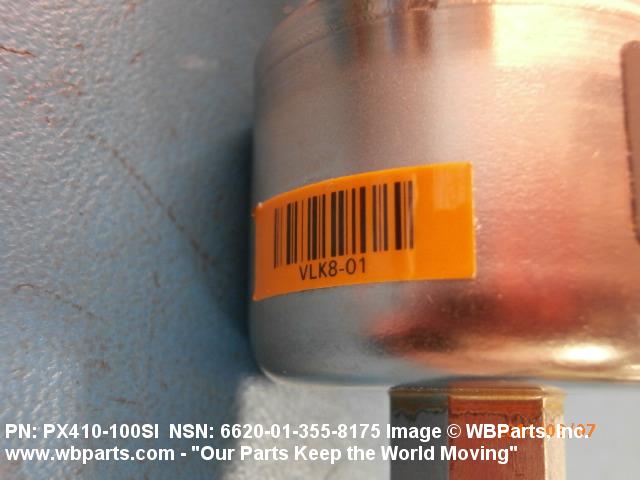

Drawings & Photos | NSN 6620-01-355-8175
Demand History | NSN 6620-01-355-8175
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| PX410100SI | 2024-06-170 | 6 | United States |
| PX410100SI | 2014-07-212 | 1 | United States |
| 6620-01-355-8175 | 2014-07-204 | 1 | United States |
| 6620-01-355-8175 | 2012-07-199 | 1 | US |
Cross Reference | NSN 6620-01-355-8175
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PX410-100SI | 29907 | OMEGA ENGINEERING, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6620-01-355-8175
Technical Data | NSN 6620-01-355-8175
| Characteristic | Specifications |
|---|---|
| CURRENT TYPE | DC |
| VOLTAGE RATING | 12.0 VOLTS MINIMUM AND 45.0 VOLTS MAXIMUM INPUT |
| ELECTRICAL CONNECTION QUANTITY | 3 |
| CONTACT QUANTITY | 3 |

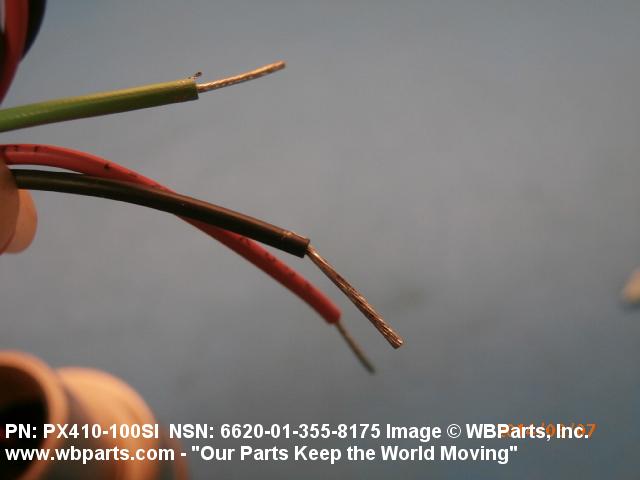

| CONTACT TYPE | WIRE LEAD |
| MECHANICAL CONNECTION QUANTITY | 1 |

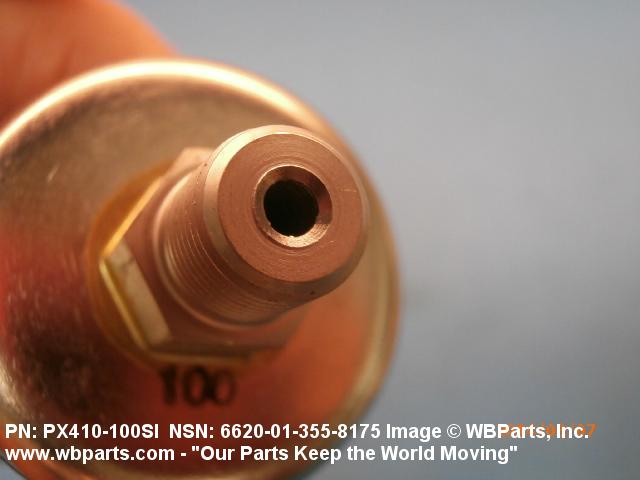

| MECHANICAL CONNECTION SIZE | 1/8 IN. DIA |
| MECHANICAL CONNECTION TYPE | PIPE |
| ACTUATION METHOD | DIAPHRAGM |

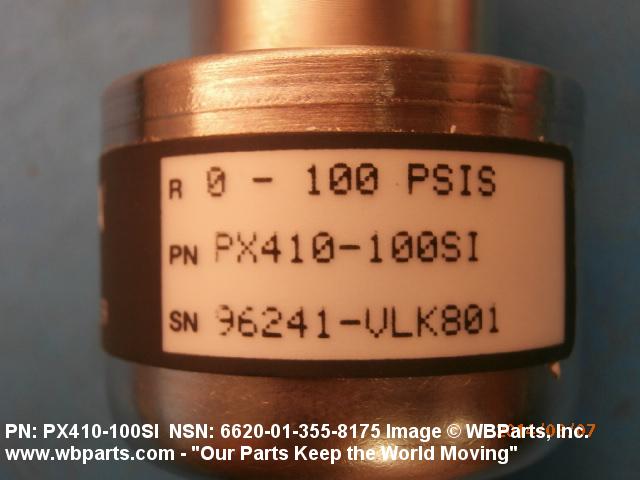

| MEASUREMENT RANGE | 0.0 TO 100.0 POUNDS PRESSURE PER SQUARE INCH |

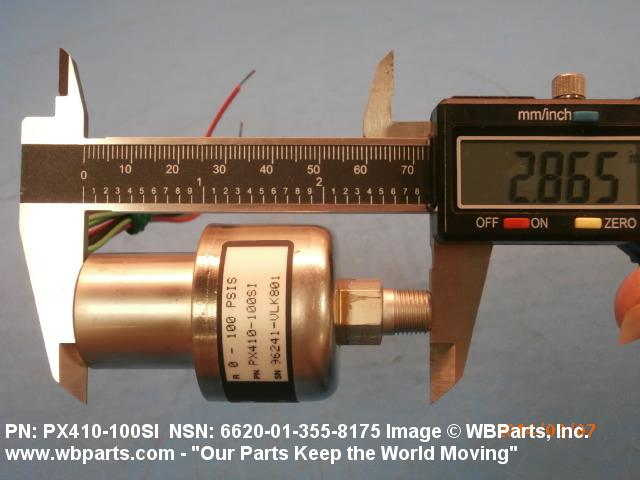

| OVERALL LENGTH | 2.810 INCHES NOMINAL |

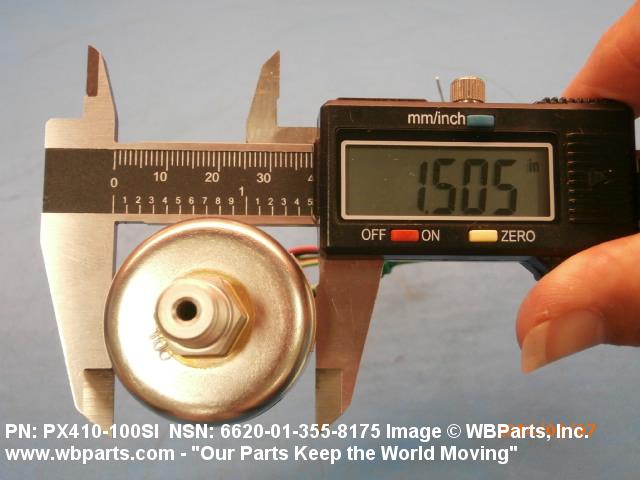

| OVERALL DIAMETER | 1.500 INCHES NOMINAL |
| MOUNTING DEVICE QUANTITY | 1 |
| MOUNTING METHOD | INLET PIPE CONNECTION |
| III END ITEM IDENTIFICATION | ENGINE,DIESEL P/N 3516/ARR-5R9850 ONBOARD 110 FT CG VESSELS |
| MANUFACTURERS CODE | 29907 |
| DESIGN CONTROL REFERENCE | PX410-100SI |
Restrictions/Controls & Freight Information | NSN 6620-01-355-8175
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
