NSN 6620-00-800-5579 EFU-12A/A, EFU12AA, MILI26299
Product Details | RATE OF FLOW INDICATOR
6620-00-800-5579 An indicator which indicates the rate of flow of a fluid.20266200018Engine Instruments66800078Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
Part Alternates: EFU-12A/A, EFU12AA, MILI26299, MIL-I-26299, MILI27182, 8DJ96LWA1, 6620-00-800-5579, 00-800-5579, 6620008005579, 008005579
Instruments and Laboratory Equipment | Engine Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1962 | 00-800-5579 | 16124 ( INDICATOR, RATE OF FLOW ) |

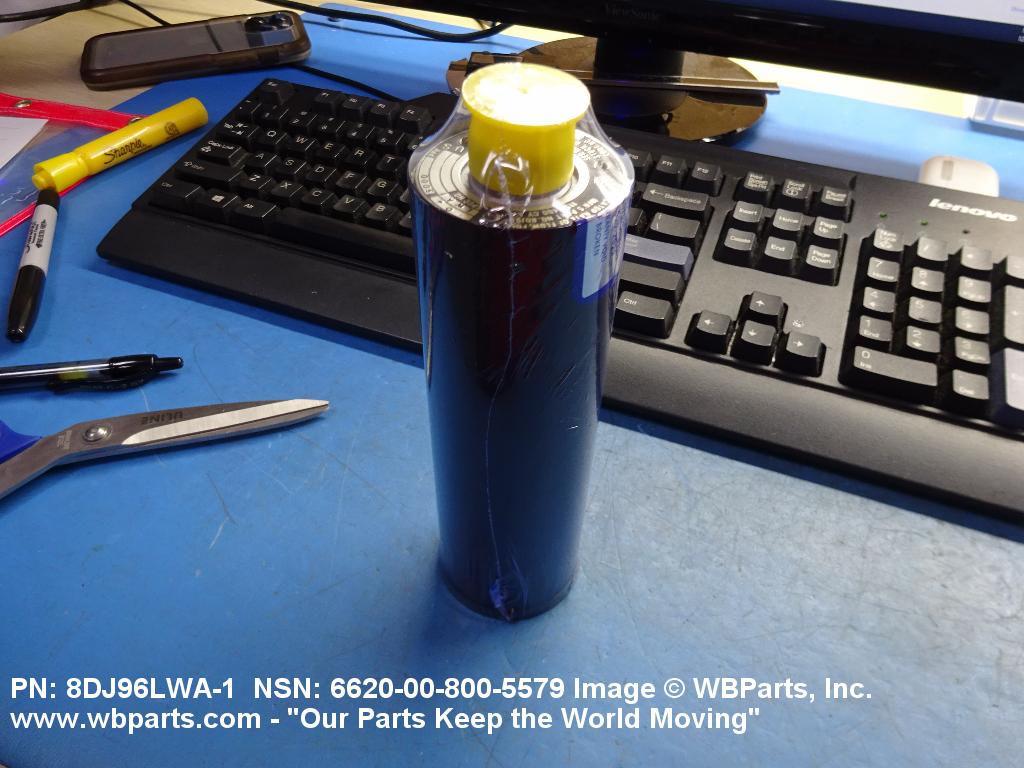

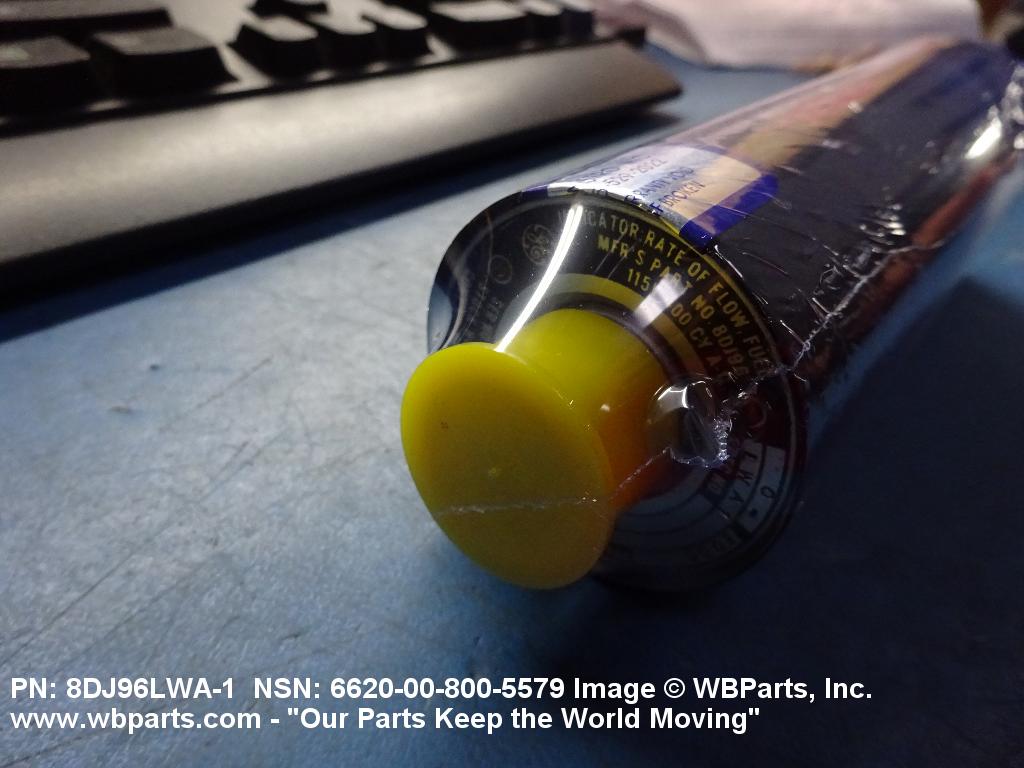

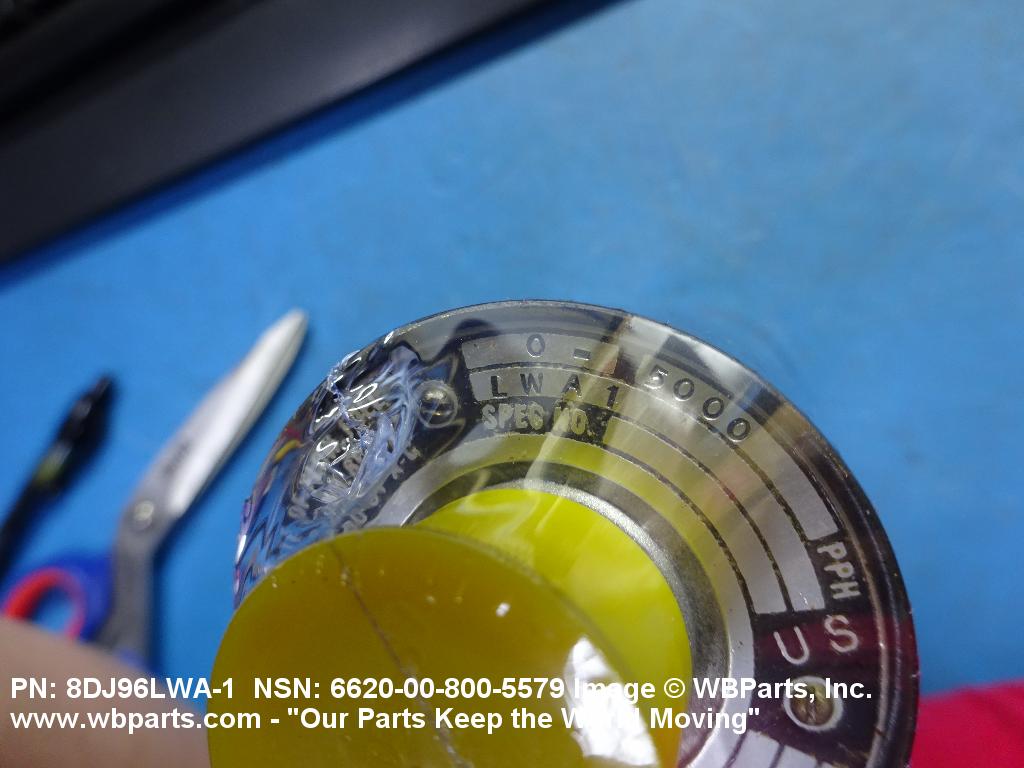

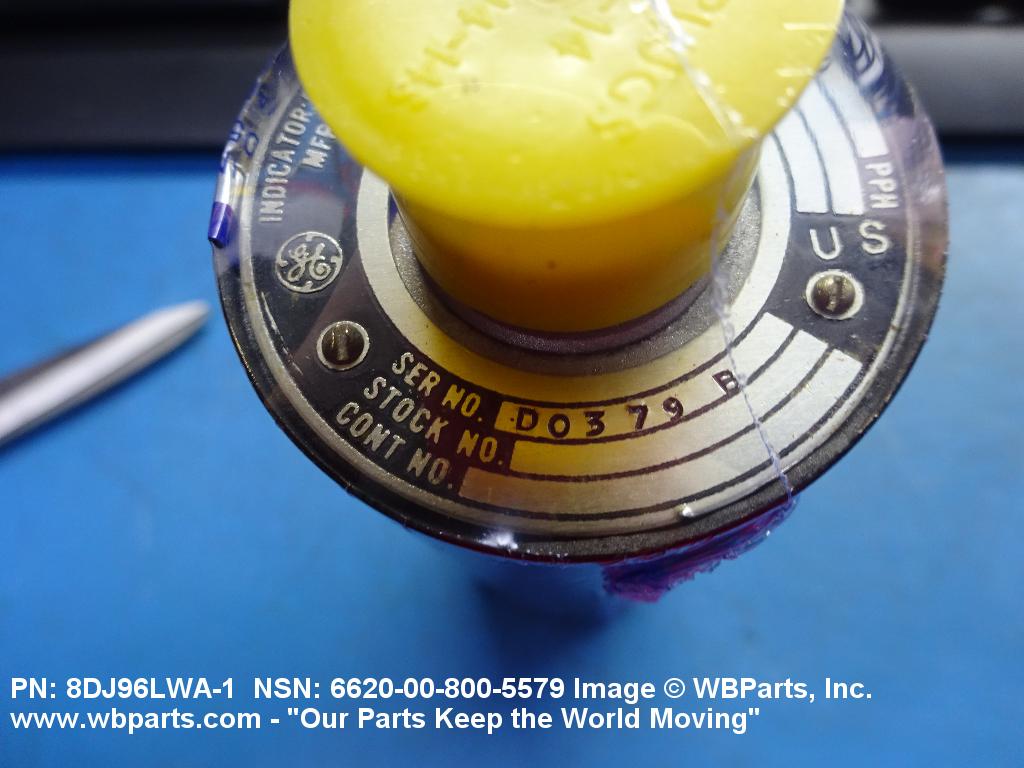

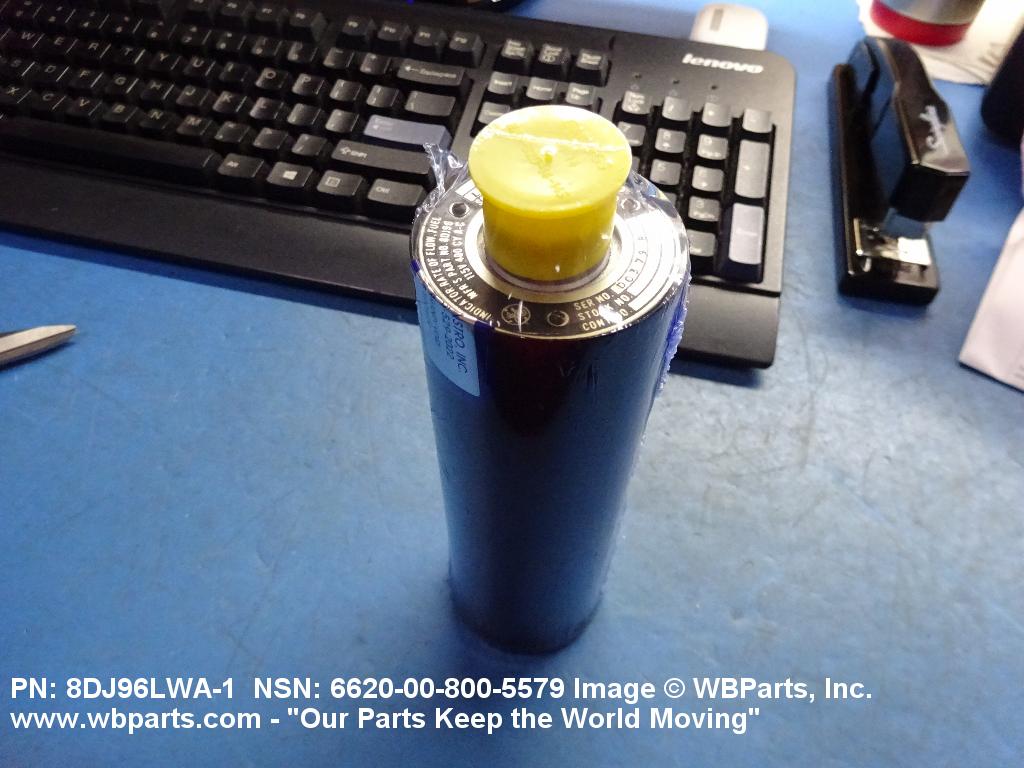

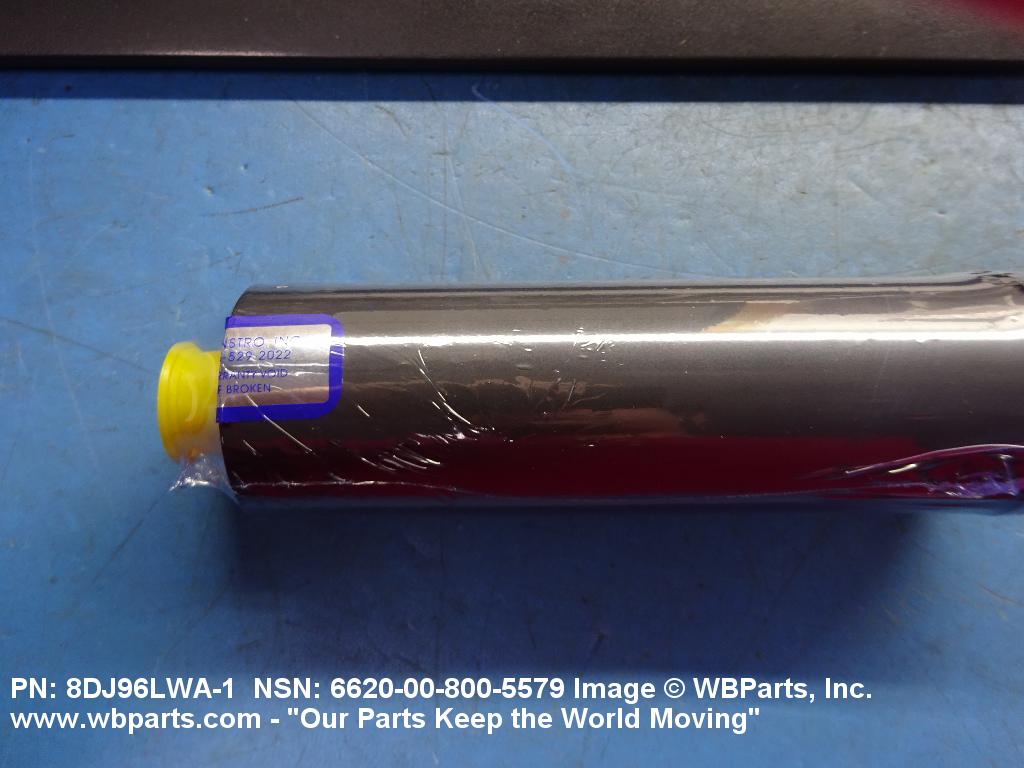

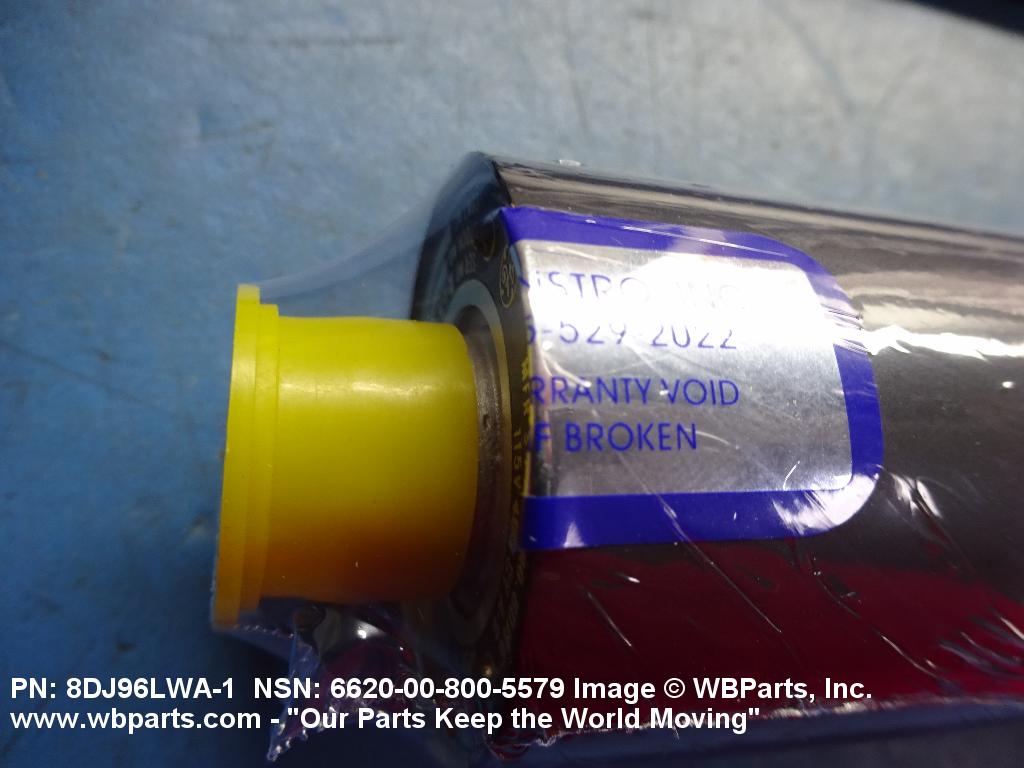

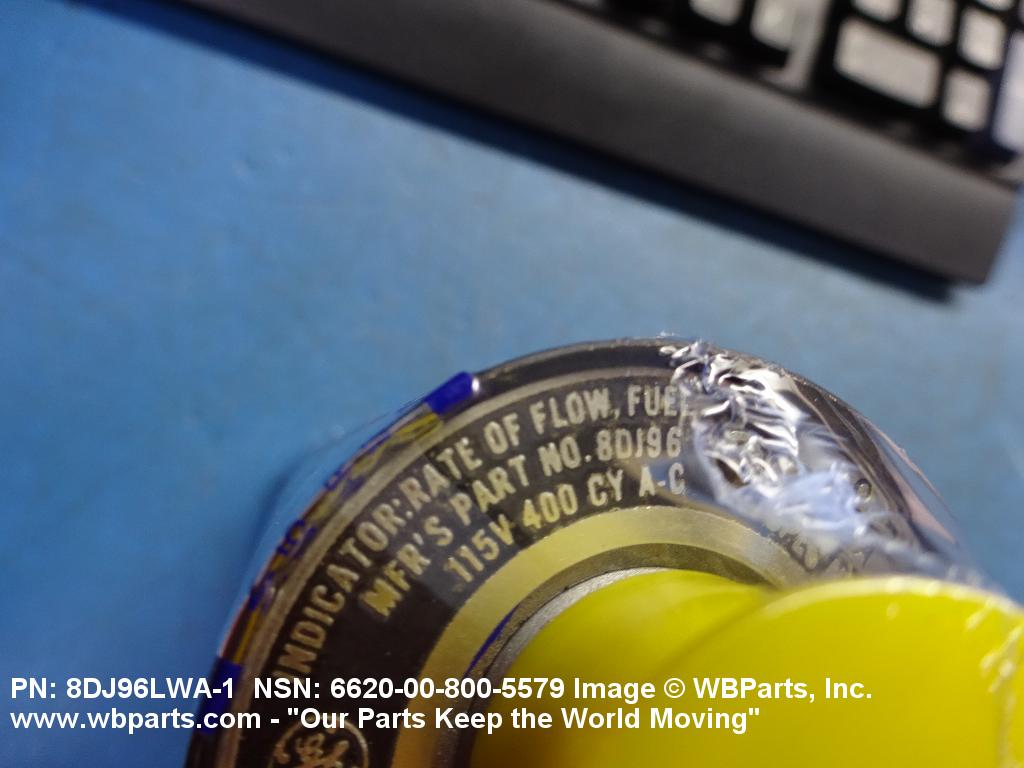

Drawings & Photos | NSN 6620-00-800-5579
Demand History | NSN 6620-00-800-5579
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8DJ96LWA1 | 2022-10-291 | 1 | Sweden |
| MILI27182 | 2012-03-81 | 1 | TR |
| 6620-00-800-5579 | 2010-11-305 | 1 | United States |
| EFU12AA | 2007-10-290 | 1 | US |
Cross Reference | NSN 6620-00-800-5579
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8DJ96LWA1 | 24446 | GENERAL ELECTRIC CO |
| 8DJ96LWA1 | 97424 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
| EFU-12A/A | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| MIL-I-26299 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILI27182 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6620-00-800-5579
Related Products | NSN 6620-00-800-5579
Technical Data | NSN 6620-00-800-5579
| Characteristic | Specifications |
|---|---|
| USAGE DESIGN | RATE OF FLOW |
| ELECTRICAL CONNECTION QUANTITY | 1 |
| ELECTRICAL CONNECTION IDENTIFYING NUMBER | 8202-13-12PM-PP OR MC14H-13-12PN OR EQUIVALENT |
| PRESENTATION TYPE | DIAL |
| ACCURACY RATING | 100.0 POUNDS PER HOUR SINGLE INDICATOR SINGLE SCALE |
| SCALE RANGE | 0.0 TO 5000.0 POUNDS PER HOUR SINGLE INDICATOR SINGLE SCALE |
| POINTER TYPE | INDICATING SINGLE POINTER |
| POINTER PURPOSE | INDICATE CURRENT RATE OF FLOW |

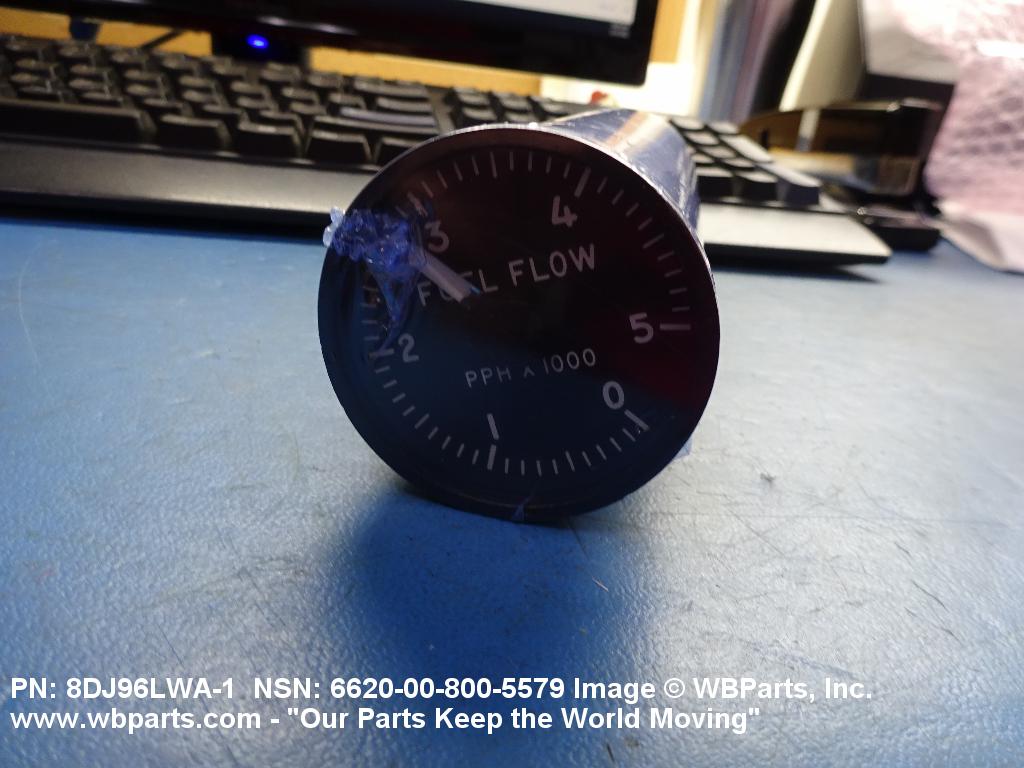

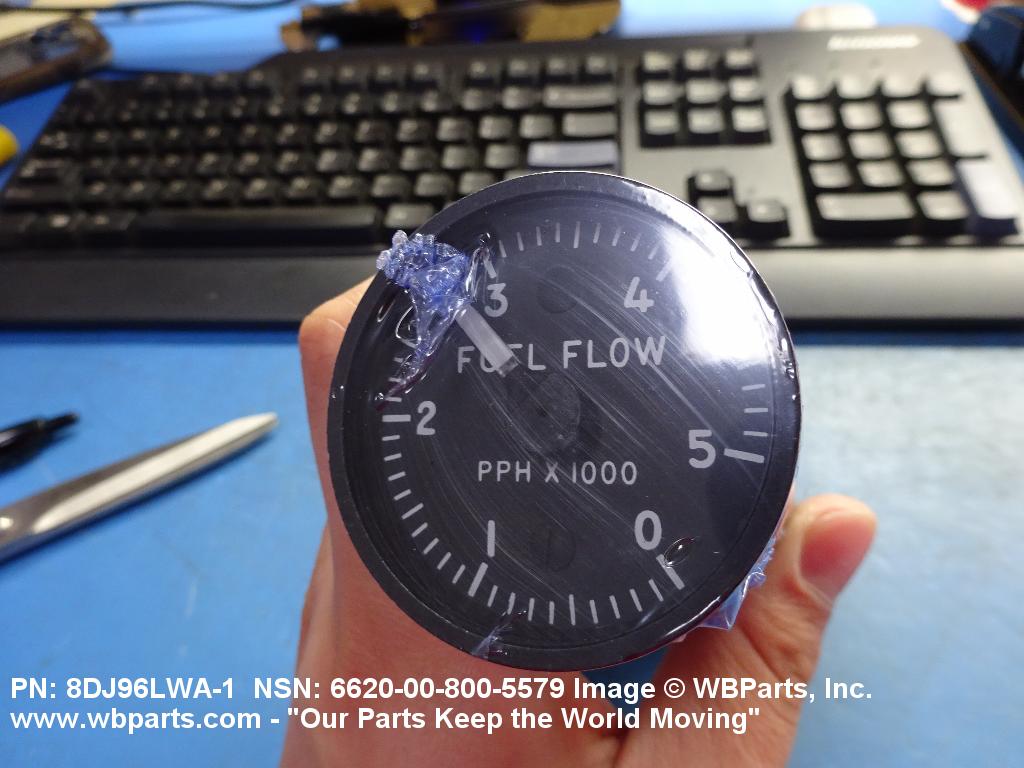

| INDIVIDUAL MARKING | FUEL FLOW; PPH X 1000 |
| CURRENT TYPE | AC |
| AC VOLTAGE RATING | 115.0 VOLTS NOMINAL |
| PHASE | SINGLE |
| FREQUENCY RATING | 400.0 HERTZ NOMINAL |
| CONTACT QUANTITY | 12 |
| CONTACT TYPE | PIN |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 CLAMP |

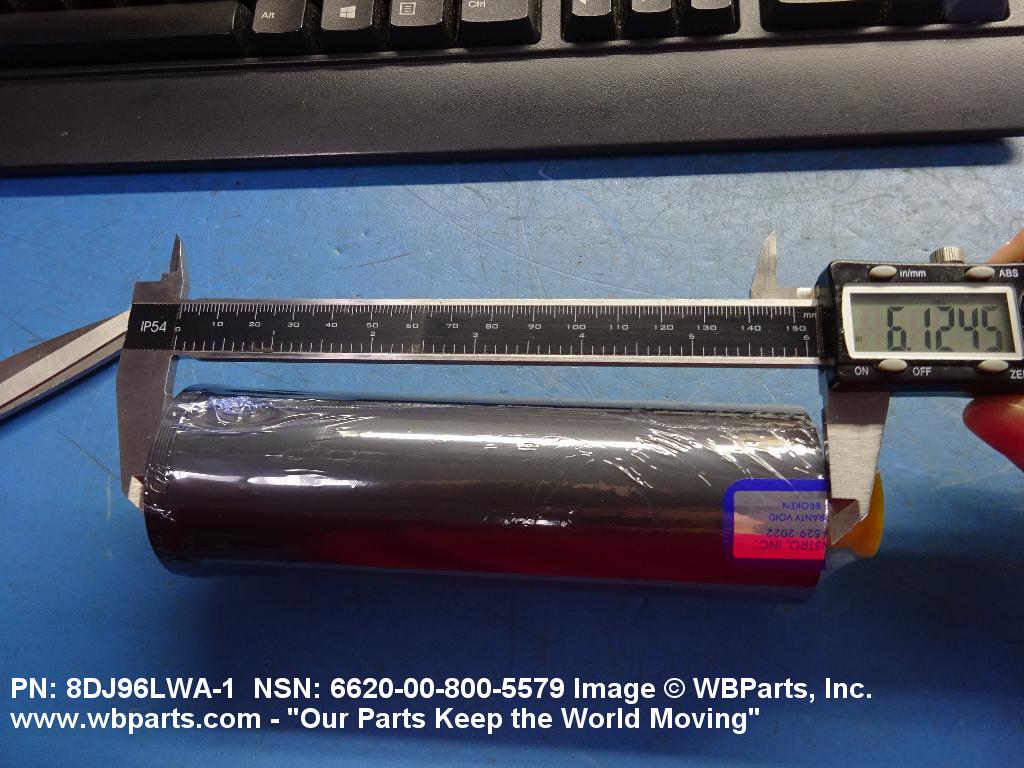

| LENGTH | 6.125 INCHES NOMINAL |

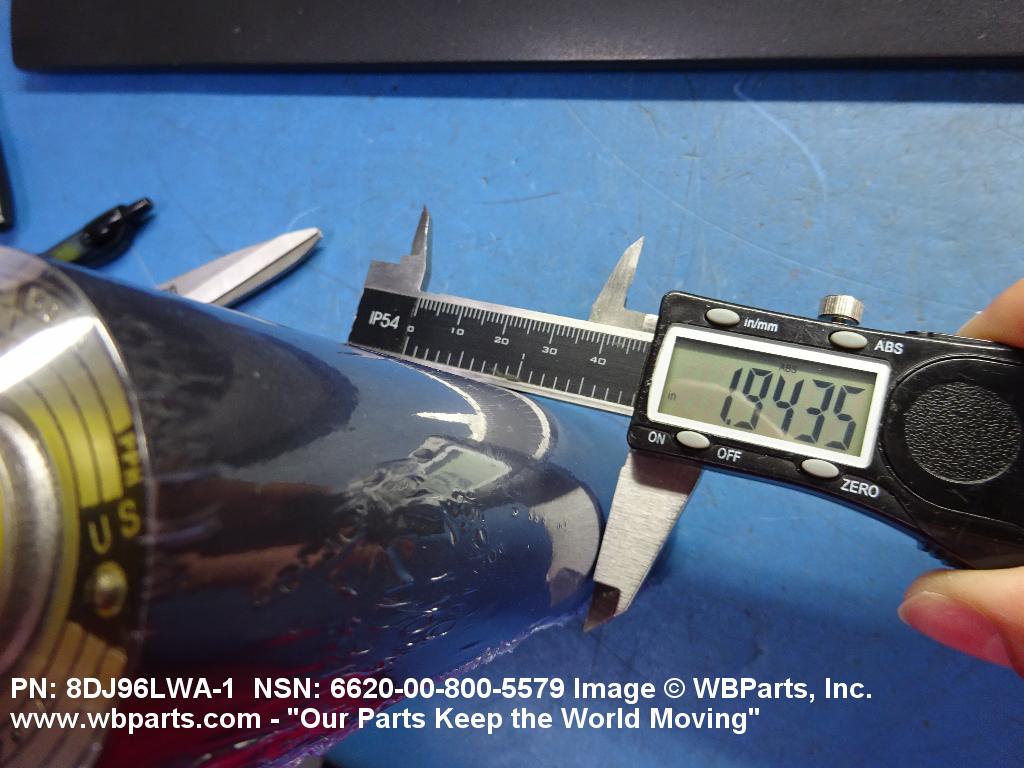

| DIAMETER | 2.000 INCHES NOMINAL |
| DIAL OUTSIDE DIAMETER | 1.750 INCHES NOMINAL |
| SPECIAL FEATURES | CASE CONFORMS TO MS33639 AND IS HERMETICALLY SEALED; CASE FINISH LUSTERLESS BLACK PER COLOR NO. 37038 OF FED-STD-595; INCLUDES FILLER TUBE; POWER CONSUMPTION 8.0 VA; WEIGHT 1.5 LBS; INTEGRAL LIGHTING PER MIL-L-27160 |
| III SUPPLEMENTARY FEATURES | INDICATOR DESIGNED TO INDICATE THE RATE OF FLOW IN POUNDS PER HOUR WHEN CONNECTED WITH A TRU-6/A FUEL FLOW TRANSMITTER CONFORMING TO MIL-T-26298 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | INDICATOR,RATE OF FLOW,0-5,000 PPH,INTEGRALLY LIGHTED |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-I-26299 |
Restrictions/Controls & Freight Information | NSN 6620-00-800-5579
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 120840 | ENGINES INTERNAL COMBUSTION NOI |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6620-00-800-5579
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | VT | CARGO/TRANSPORTAIRCRAFT(T38) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
