NSN 6620-00-736-8490 007368490
Product Details | FLOW CONTROL THERMOSTAT
6620-00-736-8490 An automatic regulating device which controls the flow of fluids or gases by actuating a valve or shutter for heating or cooling purposes. May be adjustable, or set to operate at a definite pressure. Excludes CONTROL, HUMIDITY; CONTROL, TEMPERATURE INDICATING; and SWITCH, THERMOSTATIC.
Part Alternates: 007368490
Instruments and Laboratory Equipment | Engine Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 00-736-8490 | 16516 ( THERMOSTAT, FLOW CONTROL ) |

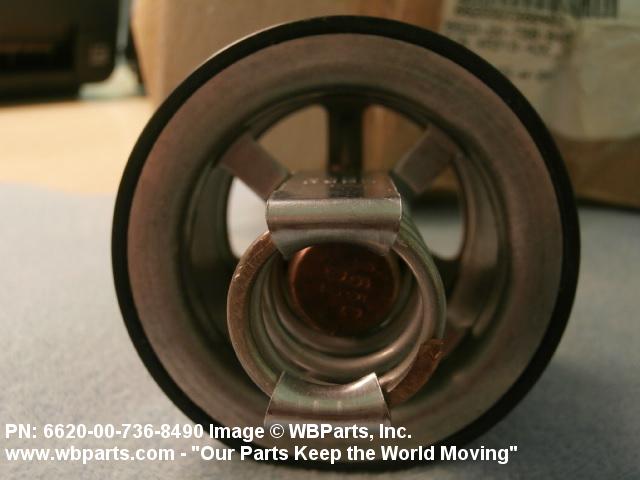

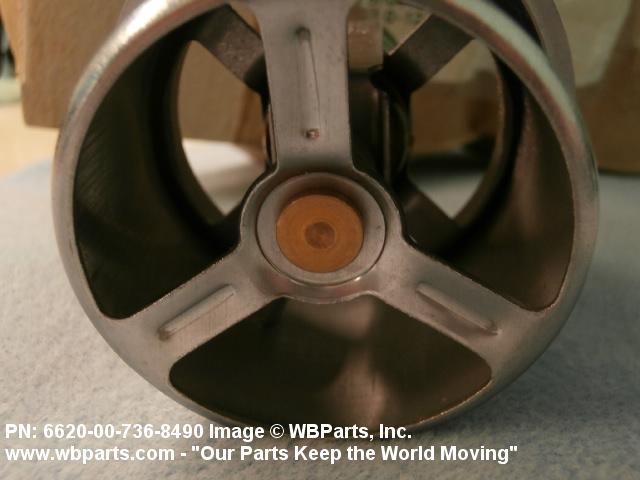

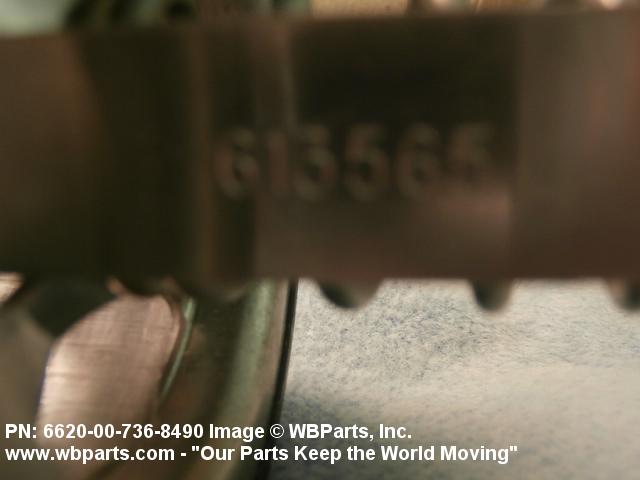

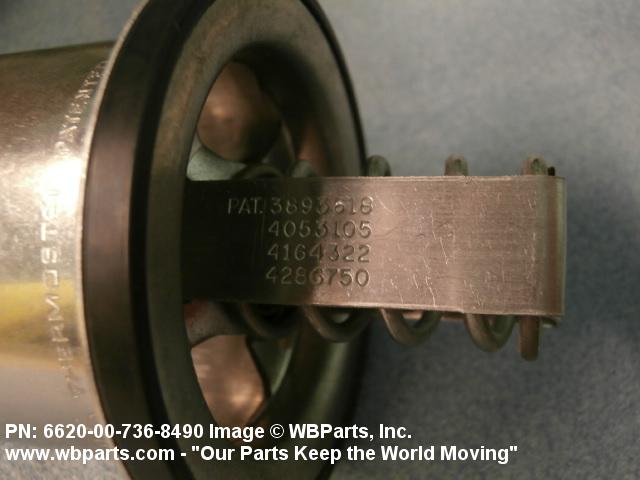

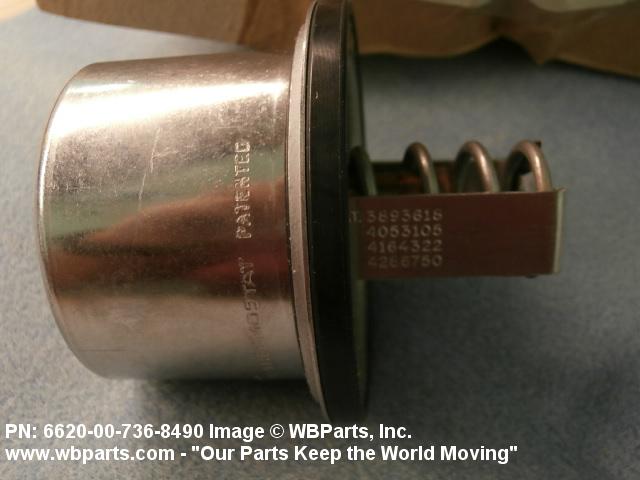

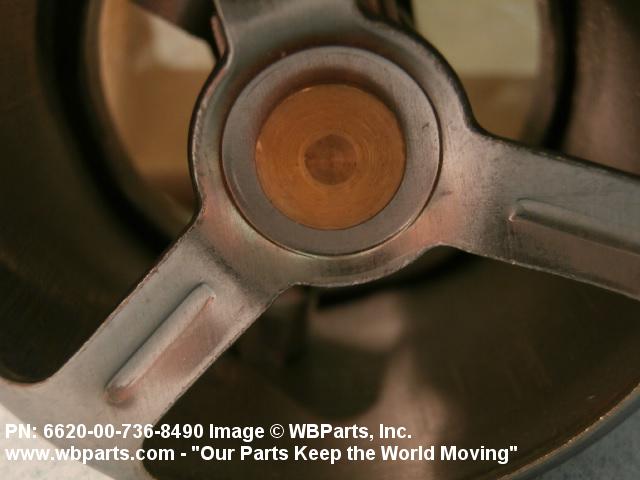

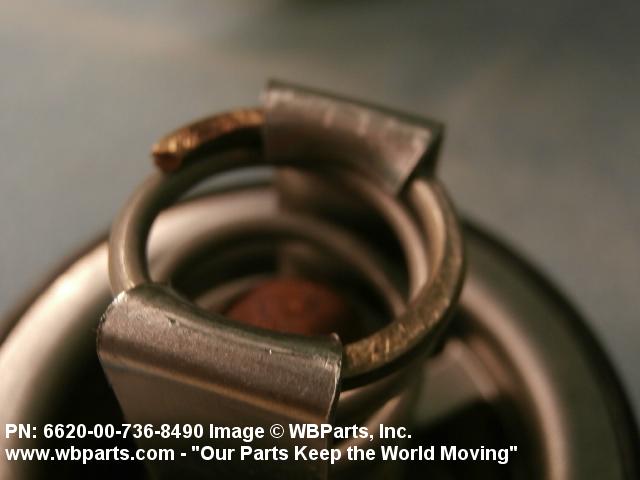

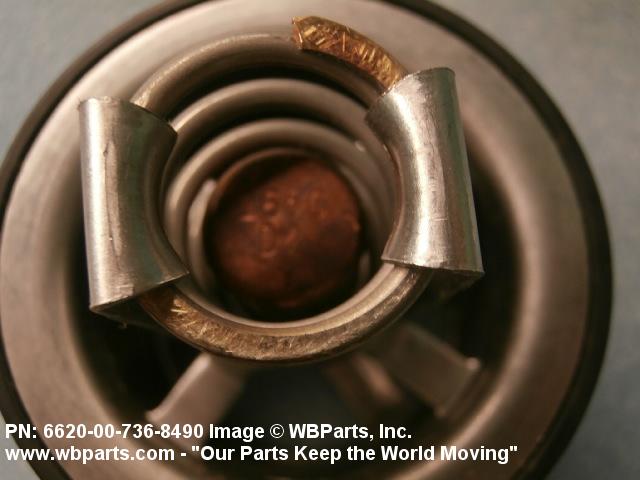

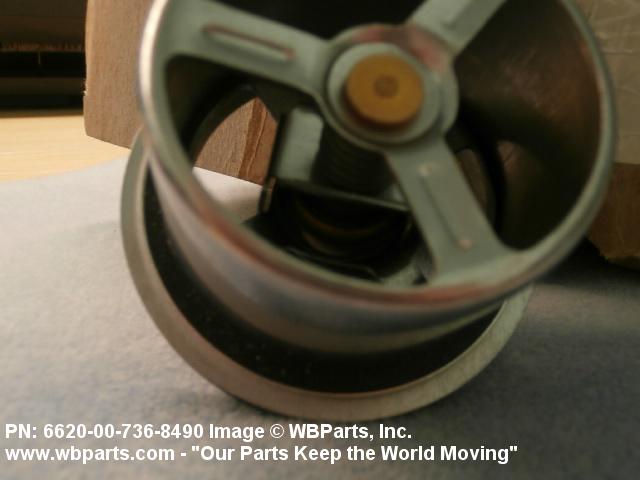

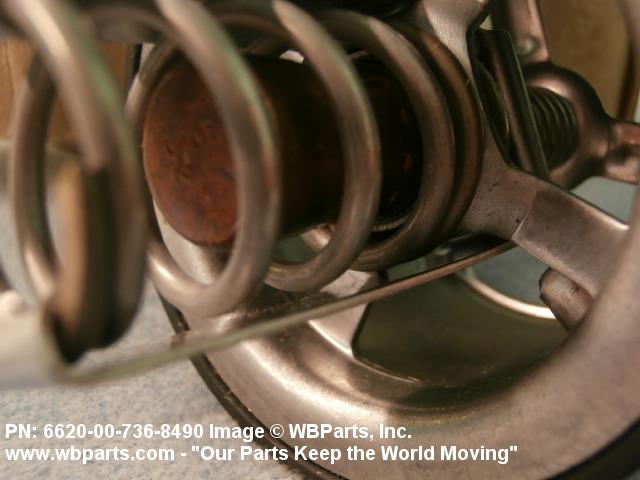

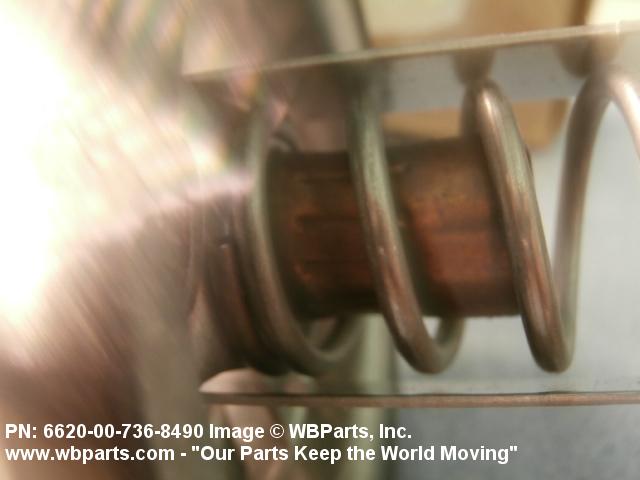

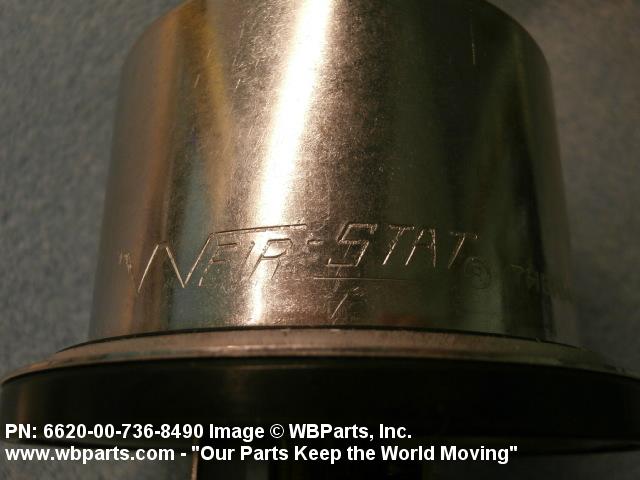

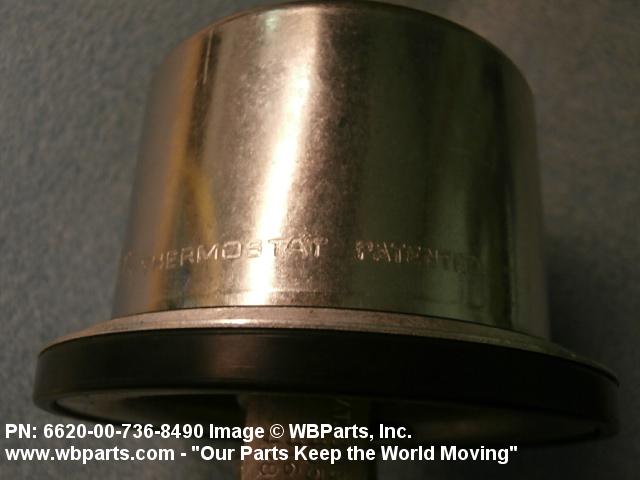

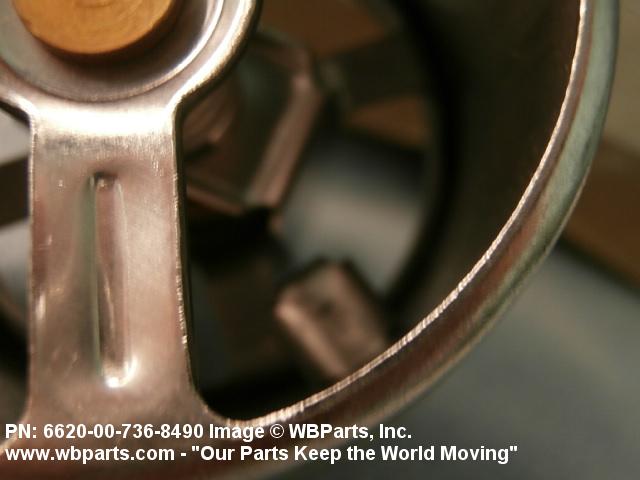

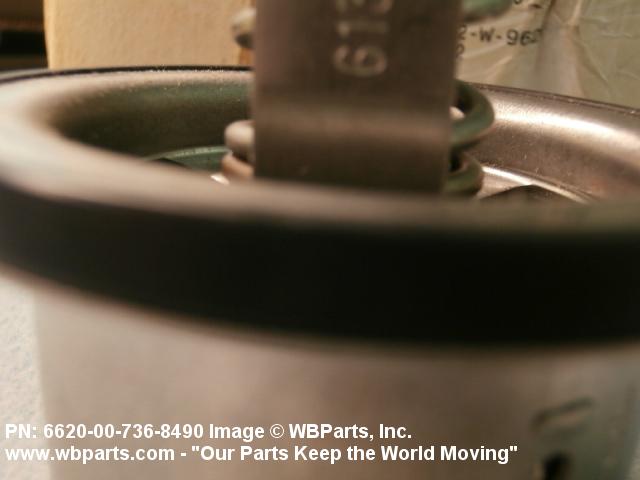

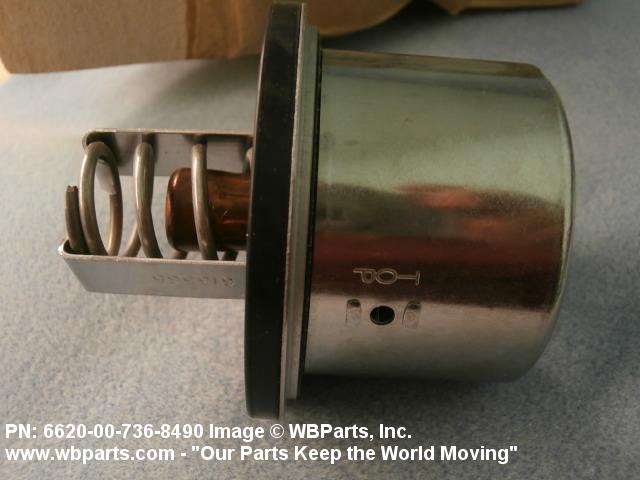

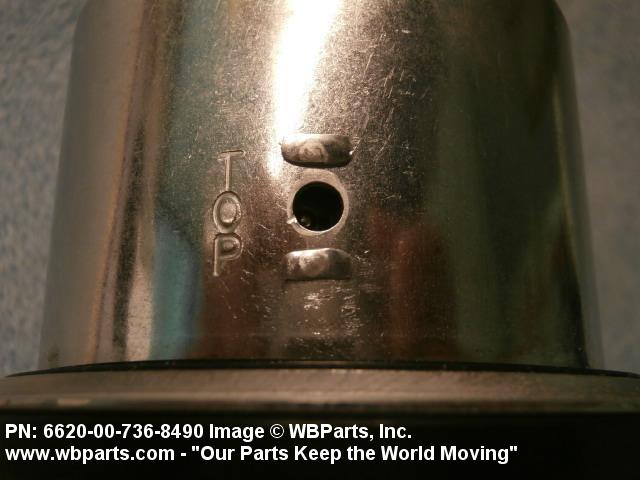

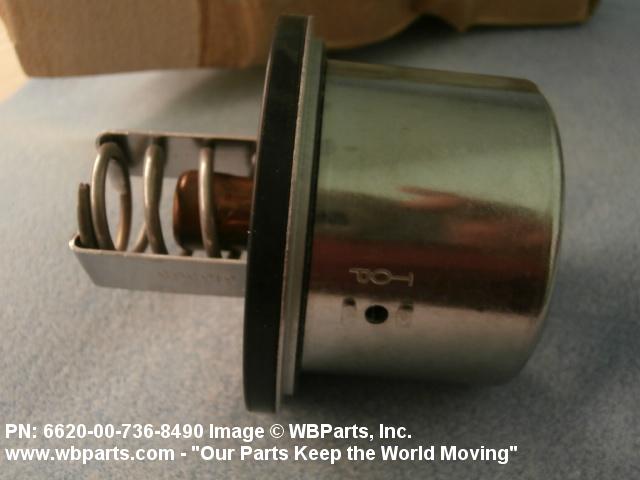

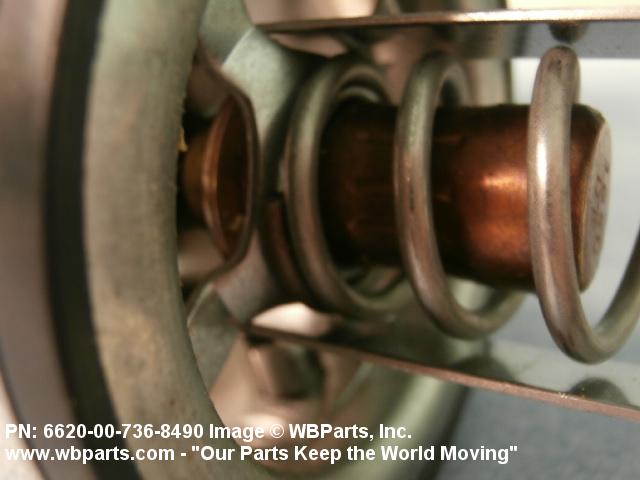

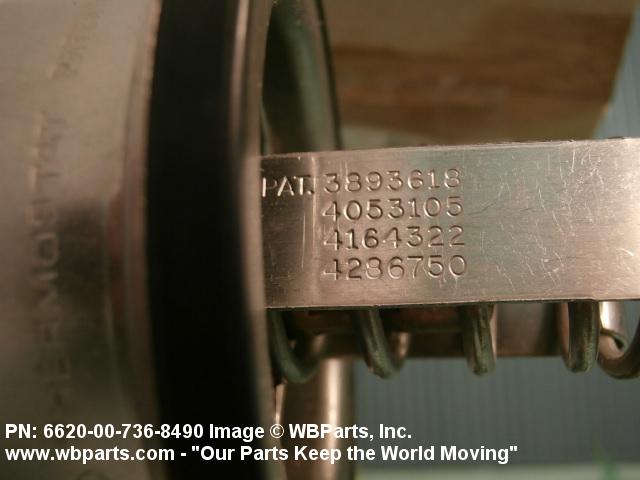

Drawings & Photos | NSN 6620-00-736-8490
Demand History | NSN 6620-00-736-8490
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6620-00-736-8490 | 2022-10-20 | 6 | AE |
| 6620-00-736-8490 | 2017-12-14 | 30 | United States |
| 6620-00-736-8490 | 2017-12-08 | 32 | US |
| 6620-00-736-8490 | 2017-07-11 | 284 | MANUAL |
| 6620-00-736-8490 | 2017-02-01 | 9 | MANUAL |
| 6620-00-736-8490 | 2017-01-24 | 9 | US |
| 6620-00-736-8490 | 2016-10-02 | 1 | United States |
| 6620-00-736-8490 | 2015-09-16 | 50 | United States |
| 6620-00-736-8490 | 2015-08-15 | 1 | Pakistan |
| 6620-00-736-8490 | 2015-02-10 | 10 | MANUAL |
| 6620-00-736-8490 | 2014-09-12 | 1 | Taiwan |
| 6620-00-736-8490 | 2013-05-22 | 50 | Pakistan |
| 6620-00-736-8490 | 2013-05-22 | 50 | PK |
| 6620-00-736-8490 | 2013-05-21 | 50 | PK |
| 6620-00-736-8490 | 2013-05-21 | 50 | PK |
| 6620-00-736-8490 | 2012-12-12 | 20 | PK |
| 6620-00-736-8490 | 2012-04-13 | 5 | MANUAL |
| 6620-00-736-8490 | 2011-07-26 | 600 | United States |
| 6620-00-736-8490 | 2011-07-20 | 7 | MANUAL |
| 6620-00-736-8490 | 2011-06-04 | 5 | MANUAL |
| 6620-00-736-8490 | 2011-06-04 | 5 | MANUAL |
| 6620-00-736-8490 | 2011-05-16 | 48 | US |
| 6620-00-736-8490 | 2011-03-28 | 790 | Turkey |
| 6620-00-736-8490 | 2011-03-04 | 100 | US |
| 6620-00-736-8490 | 2011-03-04 | 100 | Turkey |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6620-00-736-8490
Technical Data | NSN 6620-00-736-8490
| Characteristic | Specifications |
|---|---|
| THERMOSTAT TYPE | BELLOWS-BIMETALLIC |
| USAGE DESIGN | CONTROL ENGINE COOLANT TEMP |
| MOUNTING METHOD | FLANGE |
| OPENING TEMP RATING | 165.0 DEG FAHRENHEIT NOMINAL |
| OPERATING TEMP RATING | 185.0 DEG FAHRENHEIT NOMINAL |
| SPRING OPERATED PRESSURE RELIEF | NOT PROVIDED |
| VALVE TRAVEL DISTANCE | 0.250 INCHES NOMINAL |
| FLOW CONTROL DEVICE | BY-PASS |
| LARGEST OUTSIDE DIAMETER | 2.875 INCHES NOMINAL |
| OVERALL HEIGHT | 4.750 INCHES NOMINAL |
| III FSC APPLICATION DATA | 1. THERMOSTAT,FLOW CONTROL,ENGINE INSTRUMENT |
| MANUFACTURERS CODE | 78493 |
| DESIGN CONTROL REFERENCE | 4R313-42C |
Restrictions/Controls & Freight Information | NSN 6620-00-736-8490
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
