NSN 6620-00-515-5723 MS280052, MS28005-2, MILT5796
Product Details | PRESSURE TRANSMITTER
6620-00-515-5723 An instrument that senses, measures and converts pressure of a gas or fluid into electrical signals to be displayed in Pounds per Square Inch (PSI) or the equivalent. The item contains an input pressure port, electrical output connection and may include an output pressure port. See also TRANSDUCER, MOTIONAL PICKUP for items with a linear motional input and electrical output to be displayed in other than PSI or the equivalent.20266200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: MS280052, MS28005-2, MILT5796, MIL-T-5796, ST3D, 6620-00-515-5723, 00-515-5723, 6620005155723, 005155723
Instruments and Laboratory Equipment | Engine Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-515-5723 | 03375 ( TRANSMITTER, PRESSURE ) |

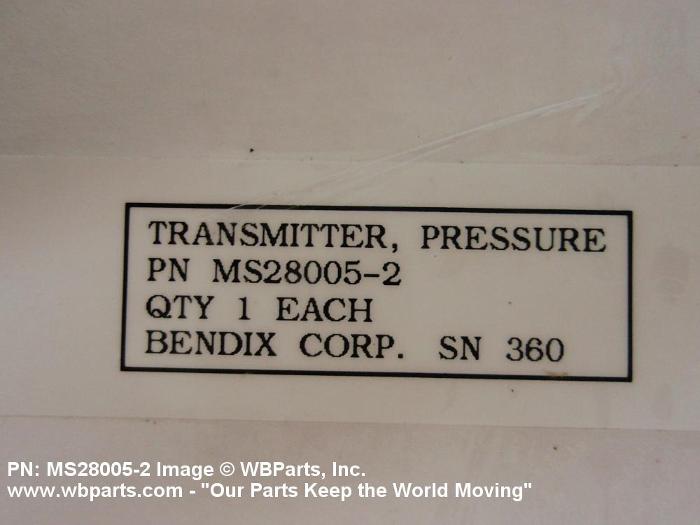

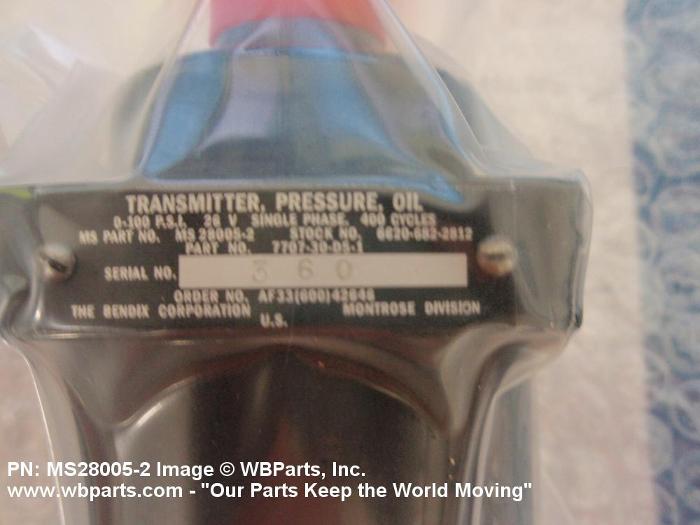

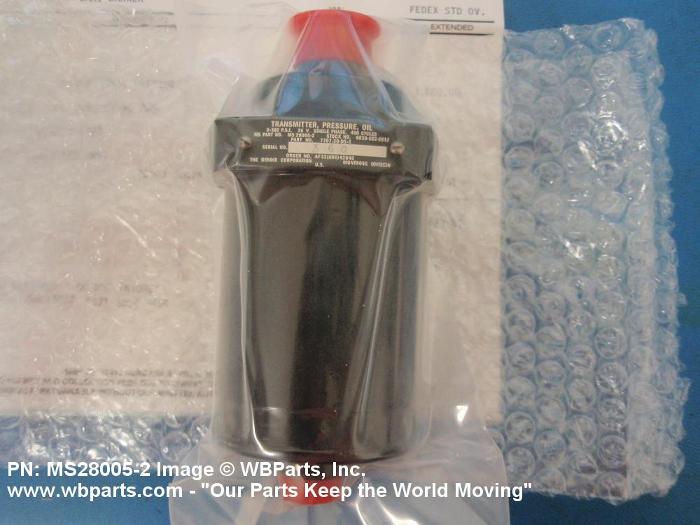

Drawings & Photos | NSN 6620-00-515-5723
Demand History | NSN 6620-00-515-5723
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS280052 | 2011-05-132 | 5 | United States |
| MS280052 | 2011-02-43 | 1 | ZA |
| MS280052 | 2007-04-114 | 2 | us |
| MS280052 | 2006-01-16 | 3 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6620-00-515-5723
Related Products | NSN 6620-00-515-5723
Technical Data | NSN 6620-00-515-5723
| Characteristic | Specifications |
|---|---|
| CURRENT TYPE | AC |
| VOLTAGE RATING | 26.0 VOLTS NOMINAL INPUT |
| FREQUENCY RATING | 400.0 HERTZ NOMINAL INPUT |
| PHASE | SINGLE INPUT |
| ELECTRICAL CONNECTION QUANTITY | 1 |
| CONTACT QUANTITY | 4 |
| CONTACT TYPE | PIN |
| ELECTRICAL CONNECTION CONTROLLING AGENCY | AN |
| ELECTRICAL CONNECTION IDENTIFYING NUMBER | DWG NO. AN3102-D-14S-2P |
| MECHANICAL CONNECTION QUANTITY | 2 |
| MECHANICAL CONNECTION SIZE | 1/4 INCH TUBING |
| MECHANICAL CONNECTION TYPE | INTERNAL PIPE |
| ACTUATION METHOD | BOURDON TUBE AND MAGNESYN |
| MEASUREMENT RANGE | 0.000 TO 100.000 POUNDS PER SQUARE INCH |
| OVERALL LENGTH | 4.000 INCHES MINIMUM AND 4.500 INCHES MAXIMUM |
| OVERALL WIDTH | 2.438 INCHES NOMINAL |
| MOUNTING DEVICE QUANTITY | 4 |
| MOUNTING METHOD | HOLE |
| SPECIAL FEATURES | DESIGNED FOR USE WITH MS28010-2 OIL PRESSURE INDICATOR CONFORMING TO MIL-I-7086 |
| III END ITEM IDENTIFICATION | TYPE MS28010-2 |
| III USAGE DESIGN | DESIGNED TO TRANSMIT THE OIL PRESSURE IN THE LUBRICATING SYSTEM OF AIRCRAFT ENGINES TO AND APPLICABLE INDICATOR |
| III UNPACKAGED UNIT WEIGHT | 1.300 POUNDS |
| MANUFACTURERS CODE | 96906 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-T-5796 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS28005-2 |
Restrictions/Controls & Freight Information | NSN 6620-00-515-5723
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 120840 | ENGINES INTERNAL COMBUSTION NOI |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6620-00-515-5723
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
