NSN 6610-01-538-8075 AIM 520-1A, AIM5201A, 5040035901
Product Details | GYROSCOPIC HEADING INDICATOR
6610-01-538-8075 An instrument designed to display the degree of variation, or the angular value between true or magnetic north and the longitudinal axis of the aircraft, ship or ground vehicle.20266050024Navigational Instruments66100018Flight Instruments
Part Alternates: AIM 520-1A, AIM5201A, 5040035901, 504-0035-901, 6610-01-538-8075, 01-538-8075, 6610015388075, 015388075
Instruments and Laboratory Equipment | Flight Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 30 MAR 2006 | 01-538-8075 | 38917 ( INDICATOR, HEADING, GYROSCOPIC ) |
Drawings & Photos | NSN 6610-01-538-8075
Demand History | NSN 6610-01-538-8075
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5040035901 | 2011-01-09 | 1 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6610-01-538-8075
Technical Data | NSN 6610-01-538-8075
| Characteristic | Specifications |
|---|---|
| USAGE DESIGN | DISPLAY FUNCTION |
| ELECTRICAL CONNECTION QUANTITY | 1 |
| ELECTRICAL CONNECTION IDENTIFYING NUMBER | 821-0150-902 |
| PRESENTATION TYPE | DIAL |
| CURRENT TYPE | DC |
| DC VOLTAGE RATING | 5.0 VOLTS NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.170 INCHES NOMINAL |

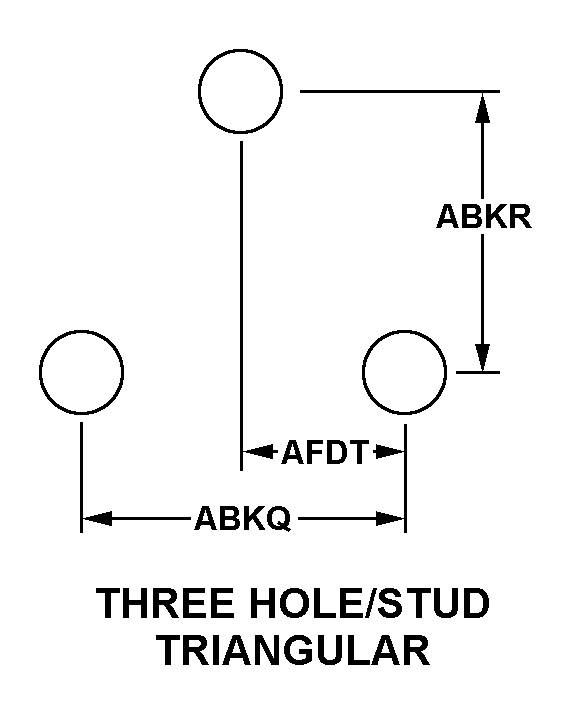

| MOUNTING ARRANGEMENT STYLE | 2 THREE HOLE/STUD TRIANGULAR |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.125 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 2.125 INCHES NOMINAL |
| LENGTH | 6.180 INCHES MAXIMUM |
| WIDTH | 2.400 INCHES NOMINAL |
| HEIGHT | 2.400 INCHES NOMINAL |
| KNOB PURPOSE | GYROSCOPE CAGING |
| KNOB QUANTITY | 1 |
| SUPPLEMENTARY FEATURES | MODEL NUMBER 5040035901 |
Restrictions/Controls & Freight Information | NSN 6610-01-538-8075
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
