NSN 6610-00-808-7038 EA32615, EA326-15, EA32615A
Product Details | POSITION INDICATOR
6610-00-808-7038 An instrument that displays the relative position of a remote movable structure.20366100018Flight Instruments66200018Engine Instruments66950041Combination and Miscellaneous Instruments
Part Alternates: EA32615, EA326-15, EA32615A, EA326-15A, 196P47493T26, 7000070, 8DJ49GBV, 8DJ49GBV2, 96P47493T16 , 6610-00-808-7038, 00-808-7038, 6610008087038, 008087038
Instruments and Laboratory Equipment | Flight Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1962 | 00-808-7038 | 16127 ( INDICATOR, POSITION ) |

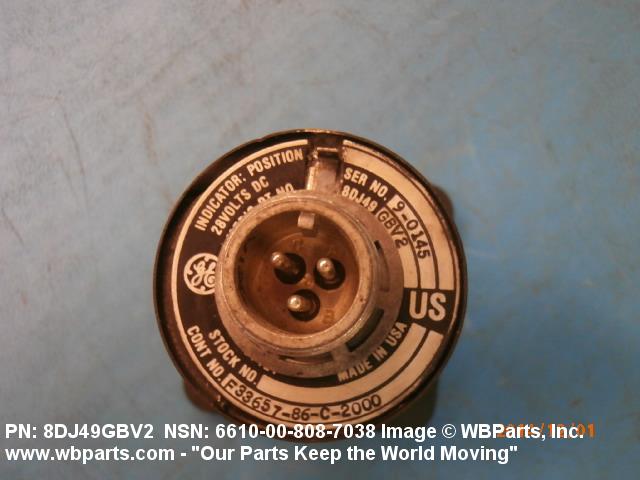

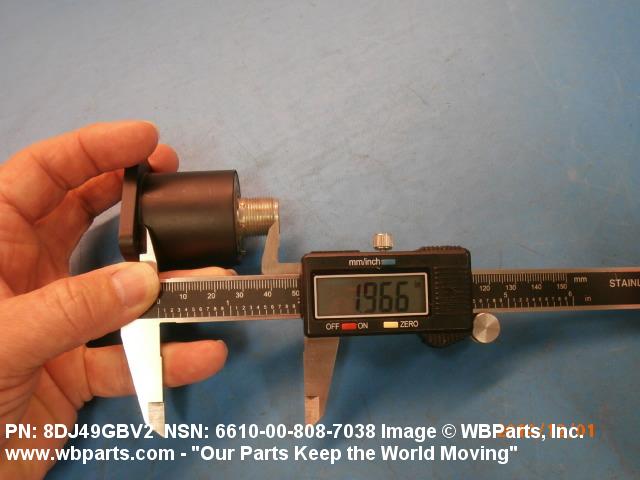

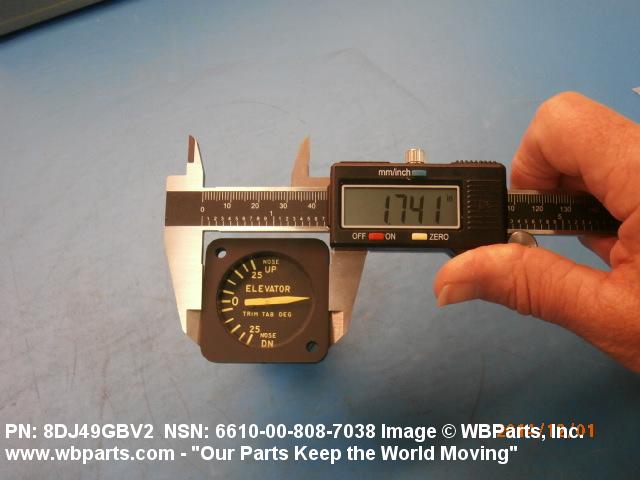

Drawings & Photos | NSN 6610-00-808-7038
Demand History | NSN 6610-00-808-7038
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6610-00-808-7038 | 2019-08-225 | 1 | CA |
| 6610-00-808-7038 | 2017-12-356 | 2 | US |
| 6610-00-808-7038 | 2017-08-235 | 12 | DIBBS |
| 6610-00-808-7038 | 2017-04-101 | 5 | DIBBS |
| 6610-00-808-7038 | 2015-01-15 | 17 | DIBBS |
| 8DJ49GBV2 | 2014-09-272 | 1 | Malaysia |
| 6610-00-808-7038 | 2014-07-210 | 1 | United States |
| 6610-00-808-7038 | 2014-07-210 | 1 | United States |
| 6610-00-808-7038 | 2012-11-325 | 30 | DIBBS |
| 6610-00-808-7038 | 2012-06-158 | 32 | DIBBS |
| 8DJ49GBV2 | 2012-02-54 | 2 | Poland |
| 6610-00-808-7038 | 2009-11-321 | 12 | DIBBS |
| 8DJ49GBV2 | 2009-08-224 | 1 | Malaysia |
| 8DJ49GBV2 | 2006-07-198 | 1 | US |
| 6610-00-808-7038 | 2006-01-26 | 27 | DIBBS |
Cross Reference | NSN 6610-00-808-7038
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7000070 | 09959 | AIRCRAFT INSTRUMENTS COMPANY |
| 8DJ49GBV | 24446 | GENERAL ELECTRIC CO |
| 8DJ49GBV | 97424 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
| 8DJ49GBV2 | 24446 | GENERAL ELECTRIC CO |
| 8DJ49GBV2 | 97424 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
| EA326-15 | 89305 | SIMMONDS PRECISION PRODUCTS, INC. DBA GOODRICH SENSORS AND INTERGRATED |
| EA326-15A | 89305 | SIMMONDS PRECISION PRODUCTS, INC. DBA GOODRICH SENSORS AND INTERGRATED |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6610-00-808-7038
Related Products | NSN 6610-00-808-7038
Technical Data | NSN 6610-00-808-7038
| Characteristic | Specifications |
|---|---|
| CASE MATERIAL | METAL |
| ELECTRICAL CONNECTION QUANTITY | 1 |
| ELECTRICAL CONNECTION IDENTIFYING NUMBER | PART NO. GS02-10SL-3P |
| ACCURACY RATING | 5.0 DEGREE QUADRANTS SINGLE INDICATOR SINGLE SCALE |
| CURRENT TYPE | DC |
| DC VOLTAGE RATING | 28.0 VOLTS NOMINAL |
| CONTACT QUANTITY | 3 |
| CONTACT TYPE | PIN |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 PANEL |
| WIDTH | 1.750 INCHES NOMINAL |
| DIAMETER | 1.375 INCHES NOMINAL |
| HEIGHT | 1.750 INCHES NOMINAL |
| DEPTH | 2.250 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 6610-00-808-7038
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6610-00-808-7038
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
