Product Details | VERTICAL VELOCITY INDICATOR

6610-00-726-9421 An indicator which indicates the rate of an aircraft's ascent or descent.

Part Alternates: MS280751, MS28075-1, 6610-00-726-9421, 00-726-9421, 6610007269421, 007269421

Instruments and Laboratory Equipment | Flight Instruments

Supply Group (FSG) NSN Assign. NIIN
66 01 JAN 1963 00-726-9421

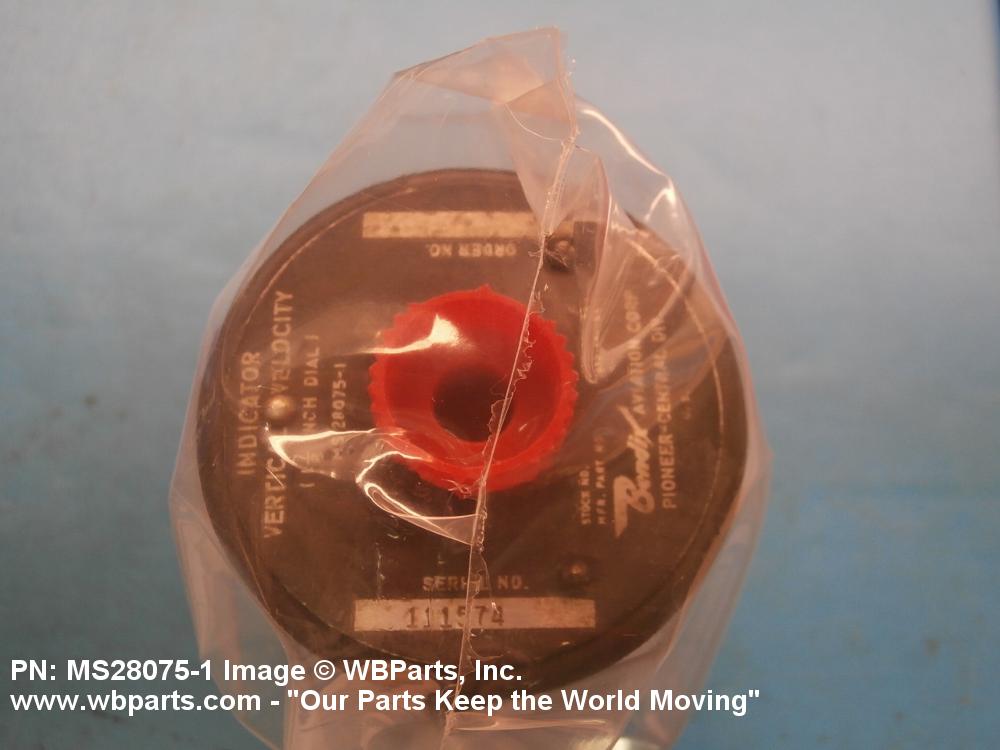

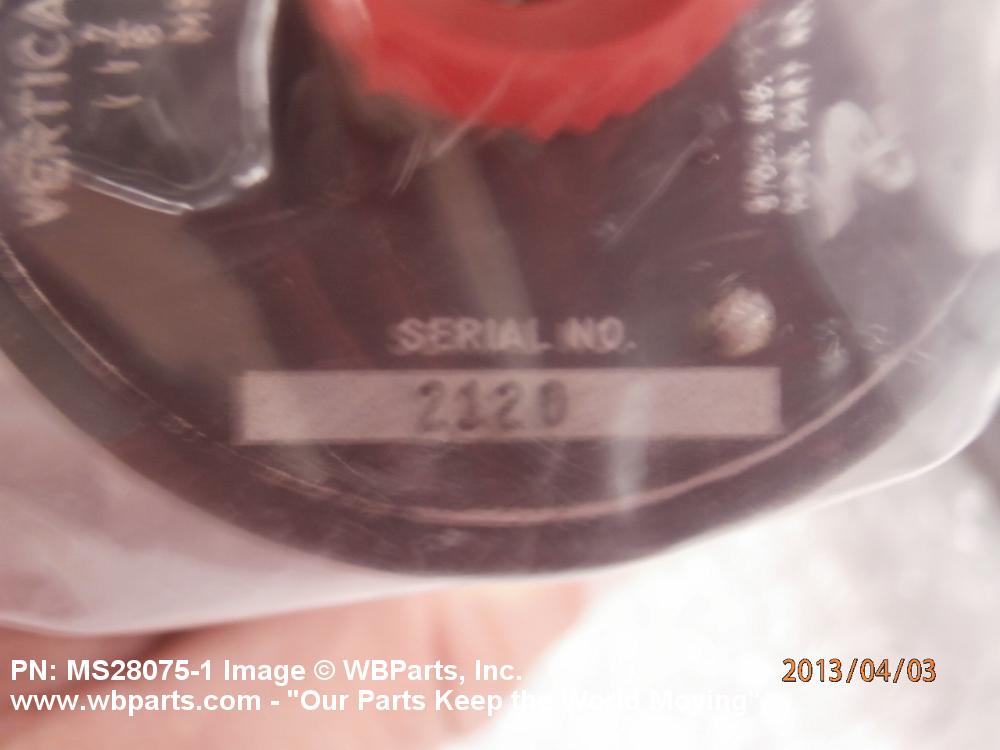

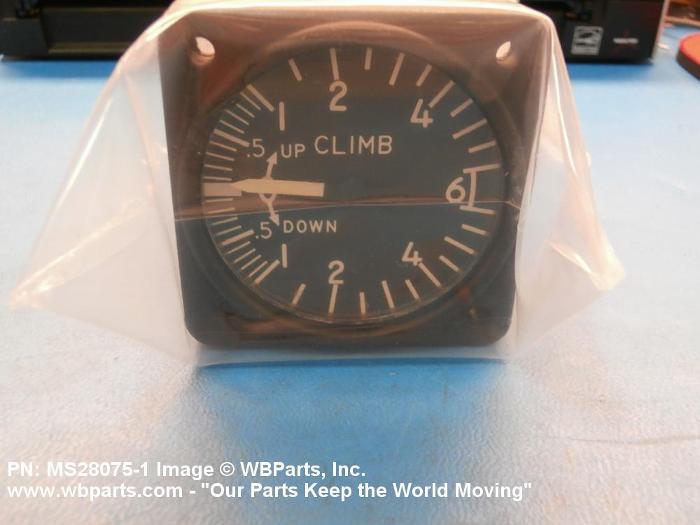

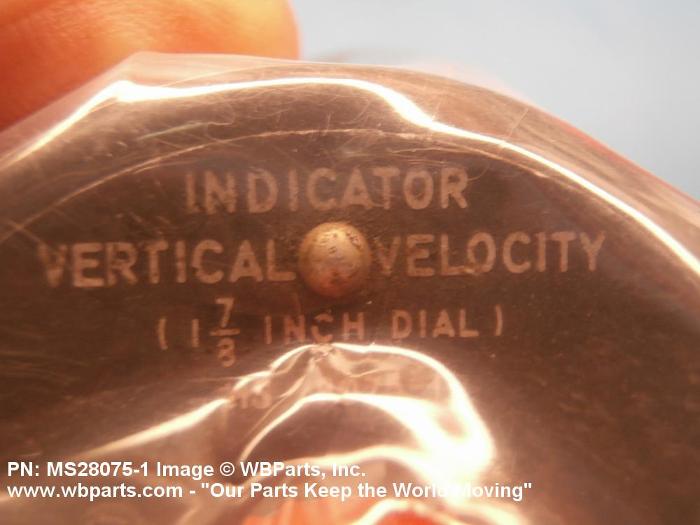

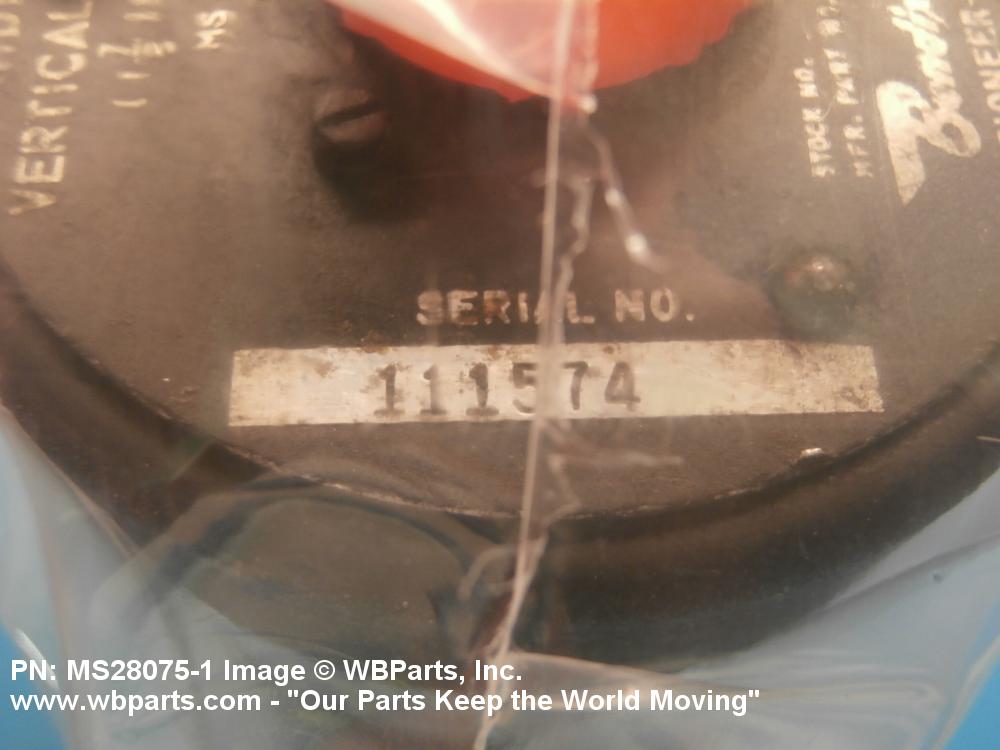

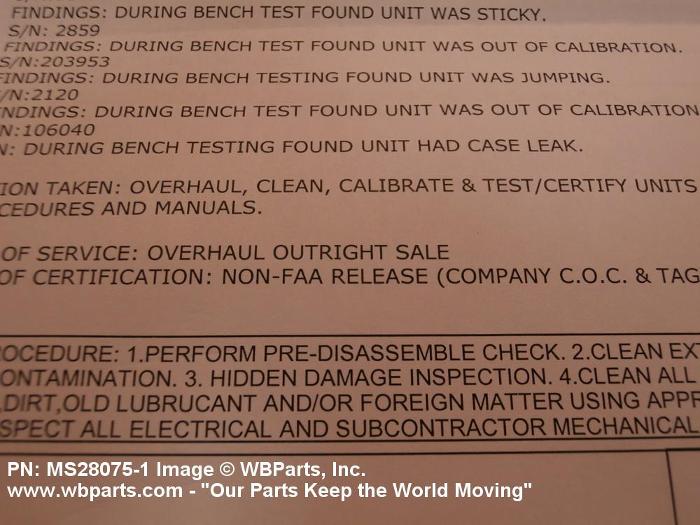

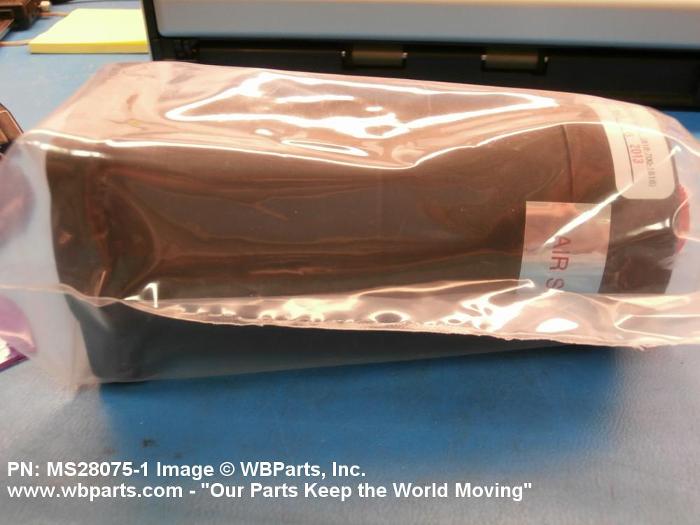

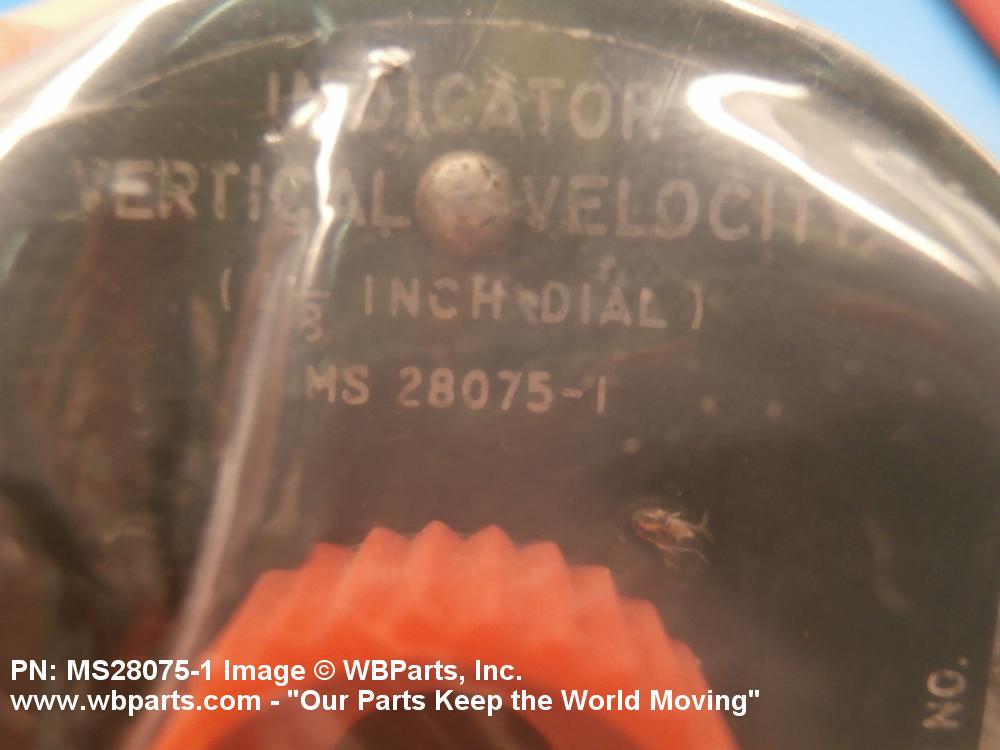

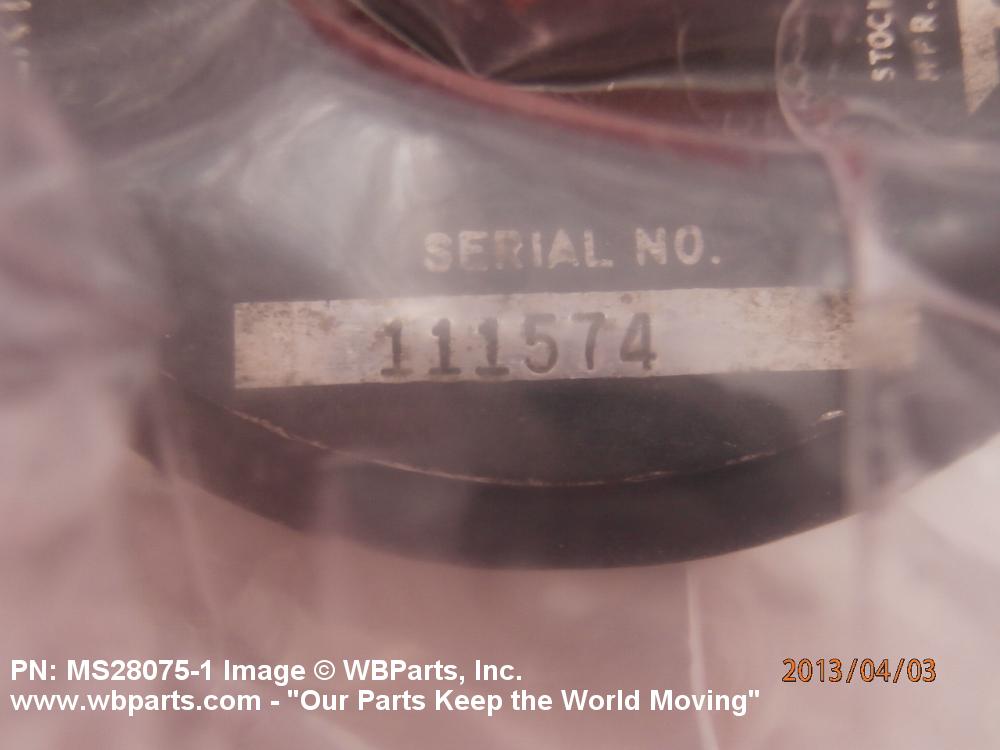

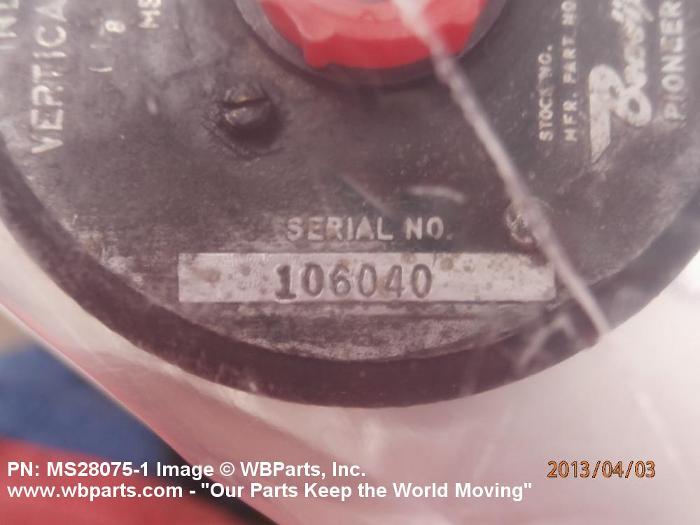

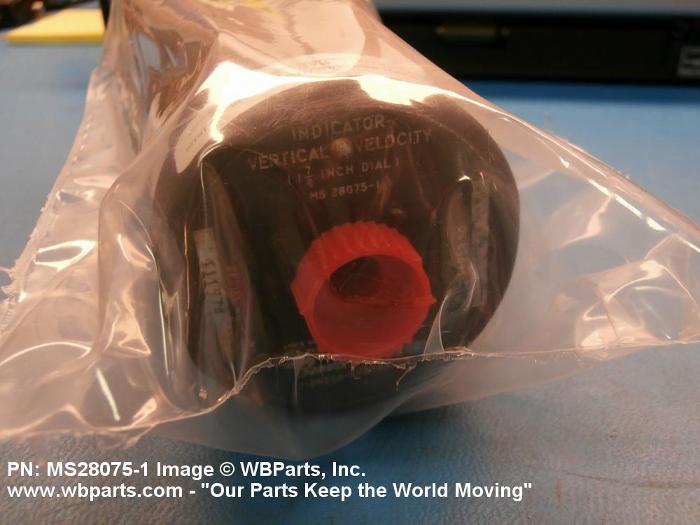

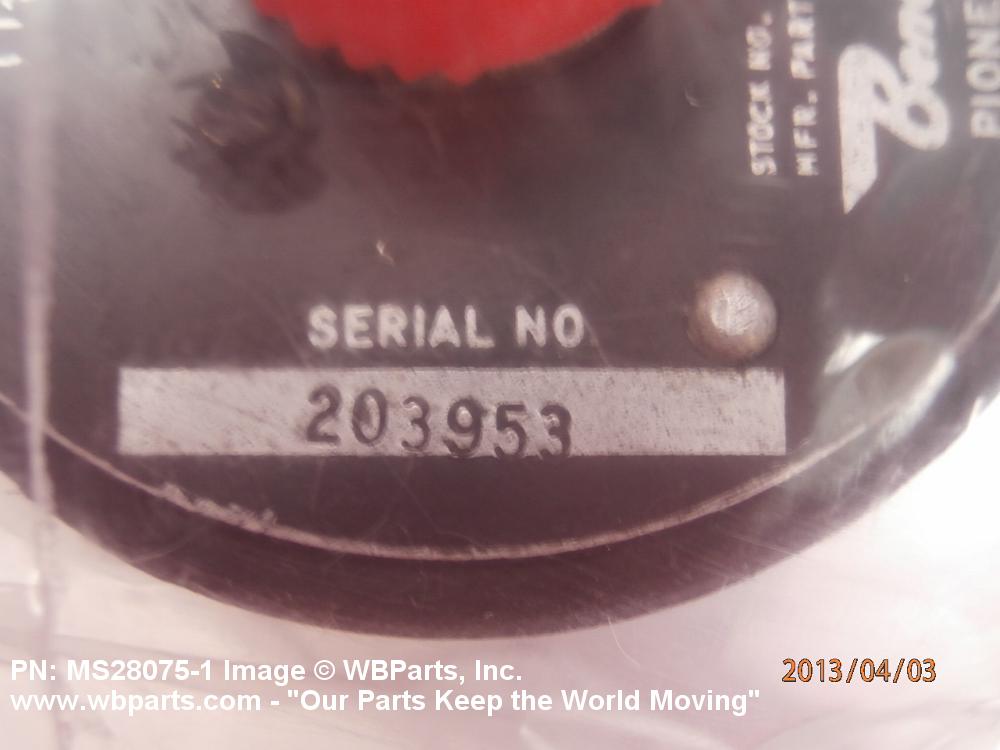

Drawings & Photos | NSN 6610-00-726-9421


Demand History | NSN 6610-00-726-9421

Part Number Request Date QTY Origin
MS280751 2018-10-296 1 Germany
MS280751 2015-02-55 1 Malaysia
MS280751 2014-12-336 1 Malaysia
6610-00-726-9421 2014-12-335 2 United States
MS28075-1 2013-05-148 1 MY
MS28075-1 2013-05-133 1 United States
MS28075-1 2013-02-49 1 MY
MS280751 2012-12-341 5 Indonesia
6610-00-726-9421 2012-07-205 1 PE
MS280751 2011-10-285 50 US
MS28075-1 2011-08-223 1 Hong Kong
MS280751 2009-08-236 1 Malaysia

Cross Reference | NSN 6610-00-726-9421

Part Number Cage Code Manufacturer
MS28075-1 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6610-00-726-9421

Technical Data | NSN 6610-00-726-9421

Characteristic Specifications
ACCURACY RATING 100.0 FEET PER MINUTE SINGLE INDICATOR SINGLE SCALE
COLOR WHITE POINTER OVERALL
POINTER FINISH NONLUMINOUS SINGLE POINTER
MOUNTING FACILITY TYPE AND QUANTITY 1 PANEL
WIDTH 2.375 INCHES NOMINAL
HEIGHT 2.375 INCHES NOMINAL
DEPTH 5.188 INCHES NOMINAL
MECHANICAL CONNECTION QUANTITY 1
MECHANICAL CONNECTION TYPE INTERNAL TUBE
MECHANICAL CONNECTION SIZE 7/16-20 UNF-3B THD SIZE PER AND10050-4
MANUFACTURERS CODE 96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS28075-1

Restrictions/Controls & Freight Information | NSN 6610-00-726-9421

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:BMunitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 061700 ELEC APPLIANCES/INSTRUMENTS NOI
Less than car load rating
Less than truck load rating J 100.2
Water commodity Code 72D unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6610-00-726-9421

Category Code Description
Materiel Category and Inventory ManagerH Aircraft, Air Materiel
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment1 REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
Specific Group/Generic CodeA Fixed Wing Aircraft
Weapons Systems/End Item or Homogeneous GroupAHOV-1
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplyB17US Army Aviation and Missile Command (Air)
ATTN: AMSMI-LC-MM-C
Redstone Arsenal, AL 35898-5230
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityDWhen repair is beyond lower level maintenance capability, evacuate the item to depot. Disposal is not authorized below wholesale level.
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes7RAeronautical Depot Level Repairable Spares
Naval Inventory Control Point, Philadelphia
Special Material IDFZSpecial Projects (GFE)
Issue Repair, or RequisitionARRepairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved.
Special Material Content9 Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of SupplyNRPNAVICP-ERP
700 Robbins Avenue
Philadelphia, PA 19111-5098
AgencyDNDepartment of the Navy
Service OrganizationLLead Service - 22 (Repairable)
ReparabilityE(1) IRAM Program Intensive Management Reparables (2) Material (expendable ordnance) Requiring Lot and Serial Number Control but which is Reported by Serial Number Only
Acquisition Advice CodesWRESTRICTED REQUISITIONING-SPECIAL INSTRUCTIONS APPLY (NON-STOCKED ITEMS) Indicates stock number has been assigned to a generic item for use in bid invitations, allowance lists, etc., against which no stocks are ever recorded. Requisitions will be submitted only in accordance with IMM/Service requisitioning procedures. (This code will be used, when applicable, in conjunction with Phrase Code S (Stock as NSN(s)). It is considered applicable for use when a procurement source(s) becomes available. The Phrase Code S and the applicable stock as? NSN(s) will then be applied for use in stock, store and issue actions.)
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
