NSN 6610-00-526-6083 671CPX4037D, 671CPX4-037D, 00-526-6083
Product Details | PRESSURE ALTIMETER

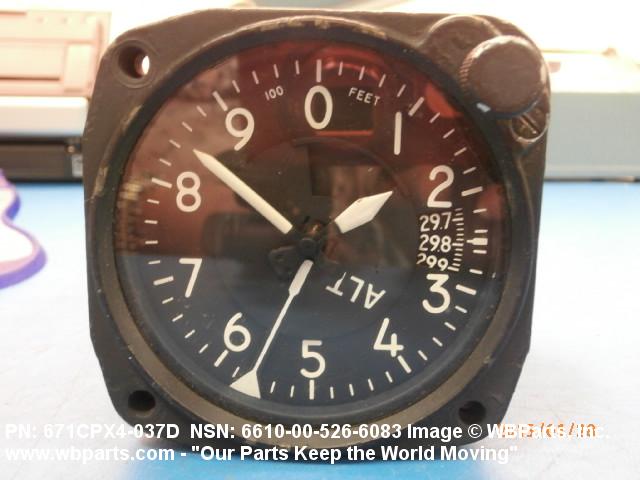

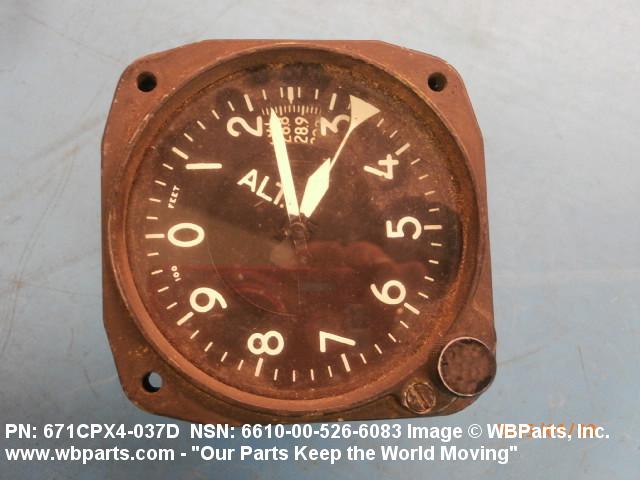

6610-00-526-6083 A barometric type instrument which measures altitude above a given datum plane when adjusted to the correct altimeter setting number. Excludes ALTIMETER, SURVEYING.
Part Alternates: 671CPX4037D, 671CPX4-037D, 6610-00-526-6083, 00-526-6083, 6610005266083, 005266083
Instruments and Laboratory Equipment | Flight Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-526-6083 | 03386 ( ALTIMETER, PRESSURE ) |

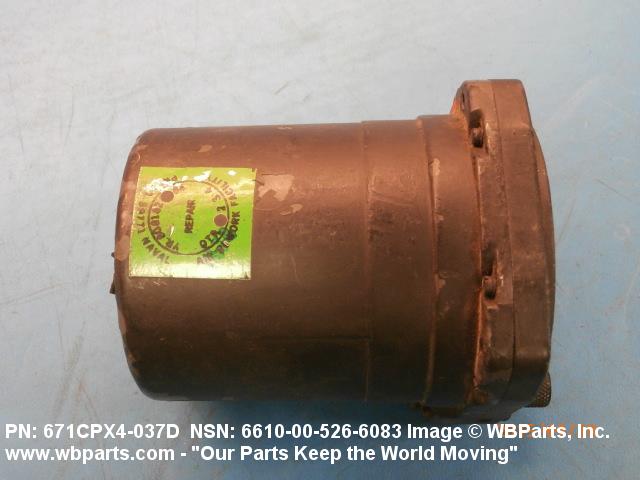

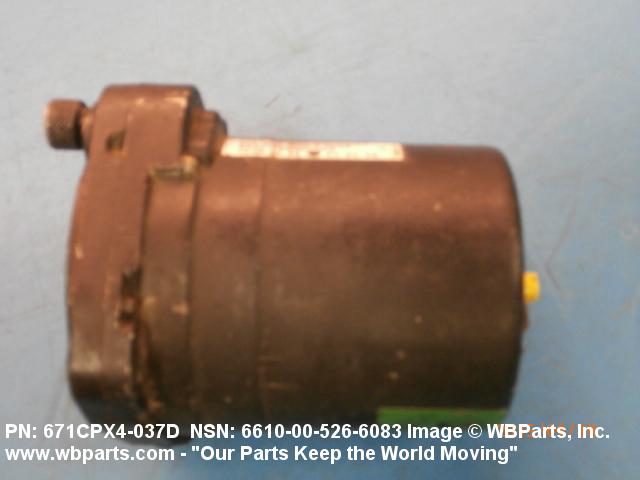

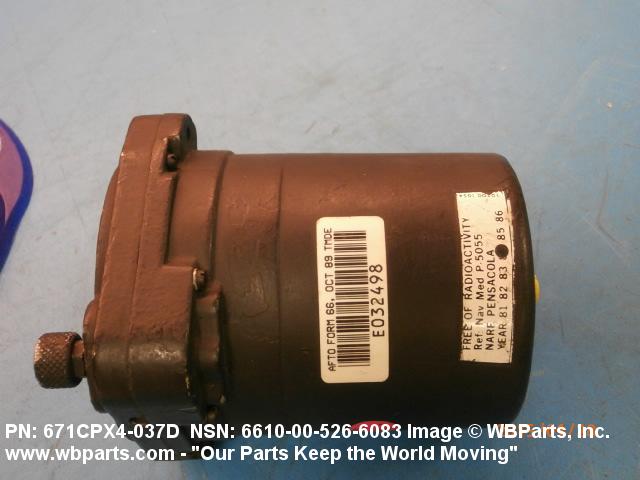

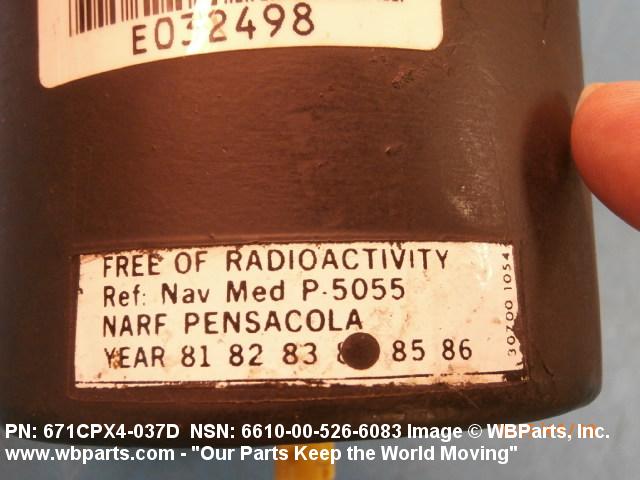

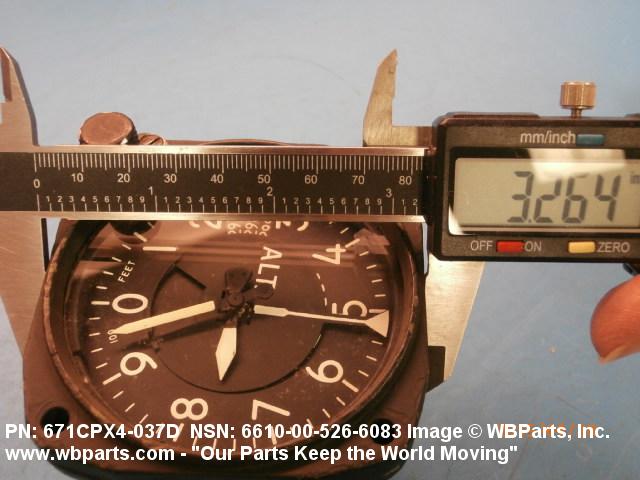

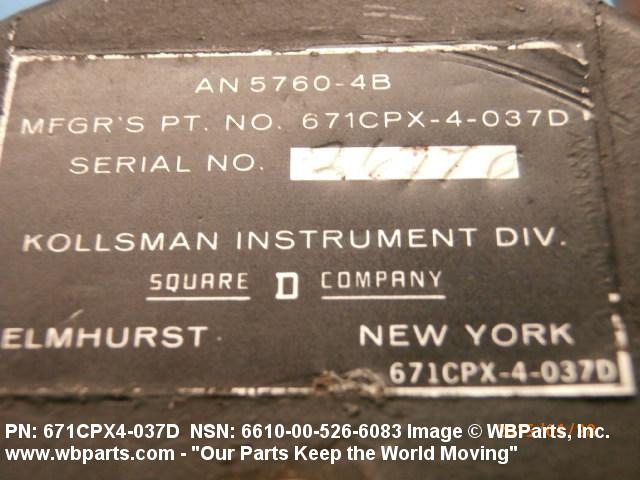

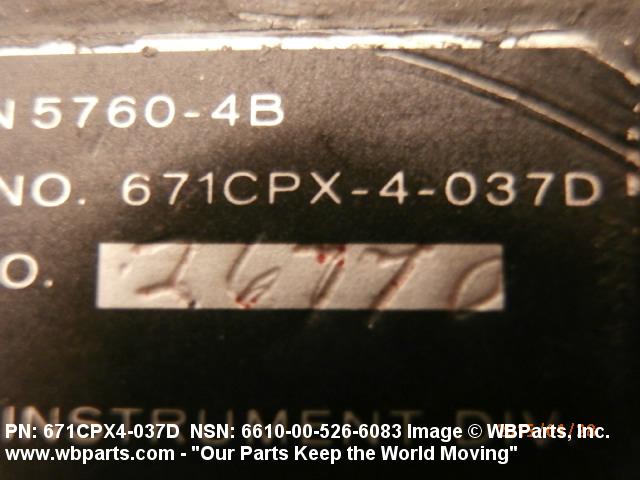

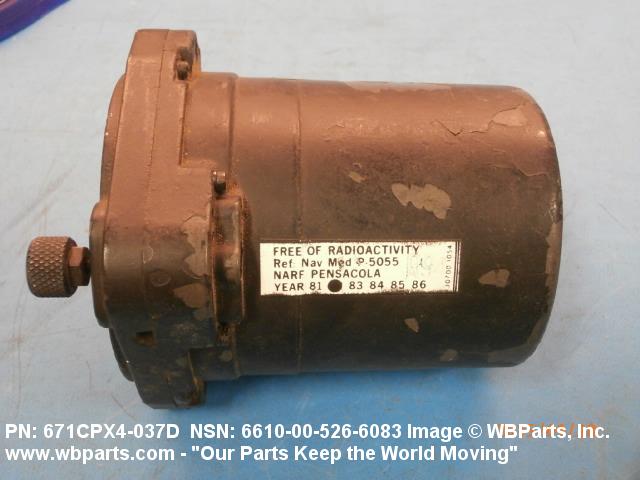

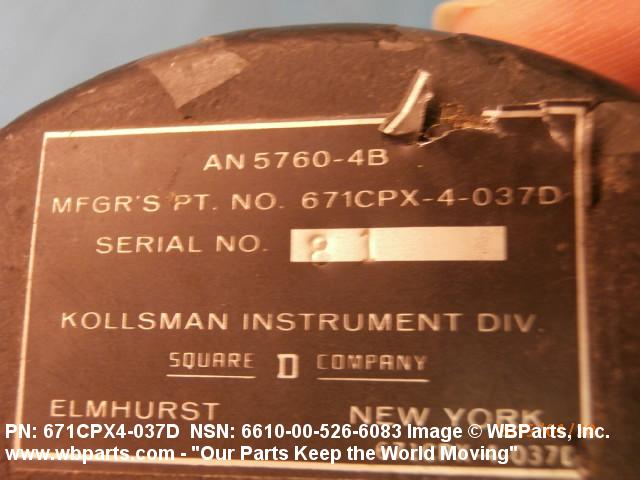

Drawings & Photos | NSN 6610-00-526-6083
Demand History | NSN 6610-00-526-6083
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6610-00-526-6083 | 2018-04-102 | 1 | US |
| 6610-00-526-6083 | 2014-12-356 | 3 | Taiwan |
| 6610-00-526-6083 | 2013-01-25 | 3 | Taiwan |
| 6610-00-526-6083 | 2012-05-122 | 1 | Taiwan |
| 6610-00-526-6083 | 2012-05-122 | 3 | Taiwan |
| 6610-00-526-6083 | 2012-04-104 | 1 | Taiwan |
| 6610-00-526-6083 | 2012-03-72 | 3 | Taiwan |
| 6610-00-526-6083 | 2007-11-309 | 5 | Turkey |
Cross Reference | NSN 6610-00-526-6083
| Part Number | Cage Code | Manufacturer |
|---|---|---|

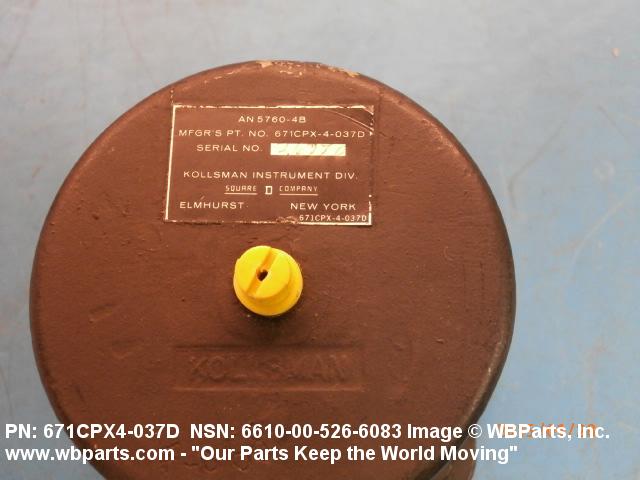

| 671CPX4-037D | 89944 | KOLLSMAN, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6610-00-526-6083
Related Products | NSN 6610-00-526-6083
Technical Data | NSN 6610-00-526-6083
| Characteristic | Specifications |
|---|---|
| SCALE QUANTITY | 1 AND 1 AND 1 AND 1 |
| SCALE NAME | ALTITUDE AND ALTITUDE AND ALTITUDE AND BAROMETRIC PRESSURE |
| SCALE RANGE | 0 TO 1000 FT,0 TO 10000 FT,0 TO 50000 FT,28.1 TO 31.0 IN. MERCURY |
| SCALE SMALLEST INCREMENT GRADUATION | 20 FT,200 FT,2000 FT,0.020 IN. |
| SCALE MARKING AND SURFACE FINISH | LETTERS FLUORESCENT NUMERALS FLUORESCENT LINED INCREMENTS FLUORESCENT LETTERS FLUORESCENT NUMERALS FLUORESCENT LINED INCREMENTS FLUORESCENT LETTERS FLUORESCENT NUMERALS FLUORESCENT LINED INCREMENTS FLUORESCENT NUMERALS FLUORESCENT LINED INCREMENTS FLUORESCENT |
| POINTER QUANTITY | 4 |
| POINTER FINISH | FLUORESCENT |
| KNOB QUANTITY | 1 |
| KNOB PURPOSE | FOR SETTING BAROMETRIC SCALE |

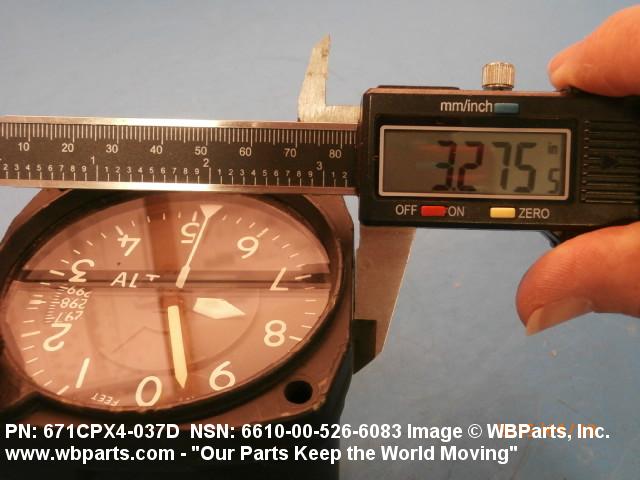

| OVERALL WIDTH | 3.250 INCHES NOMINAL |
| OVERALL HEIGHT | 3.250 INCHES NOMINAL |

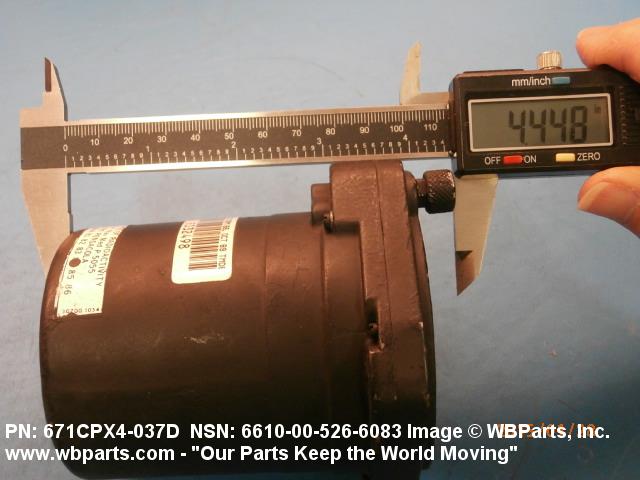

| OVERALL DEPTH | 4.500 INCHES NOMINAL |
| MOUNTING METHOD | PANEL |
| MECHANICAL CONNECTION QUANTITY | 1 |
| MECHANICAL CONNECTION SIZE | 1/8 IN. |
| MECHANICAL CONNECTION TYPE | INTERNAL PIPE |
| III NUCLEAR HARDNESS CRITICAL FEATURE | HARDENED |
| MANUFACTURERS CODE | 89944 |
| DESIGN CONTROL REFERENCE | 671CPX4-037D |
Restrictions/Controls & Freight Information | NSN 6610-00-526-6083
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Hazardous Control Code: | A2 | Radioactive, License Exempt RADIOACTIVE, EXEMPT |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011790 | AIRCRAFT PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6610-00-526-6083
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9J | Navy-owned stocks of material managed by the Air Force within the Oklahoma City Air Logistics Center Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
