NSN 6610-00-515-4704 8TJ9PAV, 8TJ9PAV40, 8TJ9PAV43
Product Details | POSITION TRANSMITTER
6610-00-515-4704 00020366100018Flight Instruments66200018Engine Instruments66950041Combination and Miscellaneous Instruments
Part Alternates: 8TJ9PAV, 8TJ9PAV40, 8TJ9PAV43, 6610-00-515-4704, 00-515-4704, 6610005154704, 005154704
Instruments and Laboratory Equipment | Flight Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-515-4704 | 13367 ( TRANSMITTER, POSITION ) |

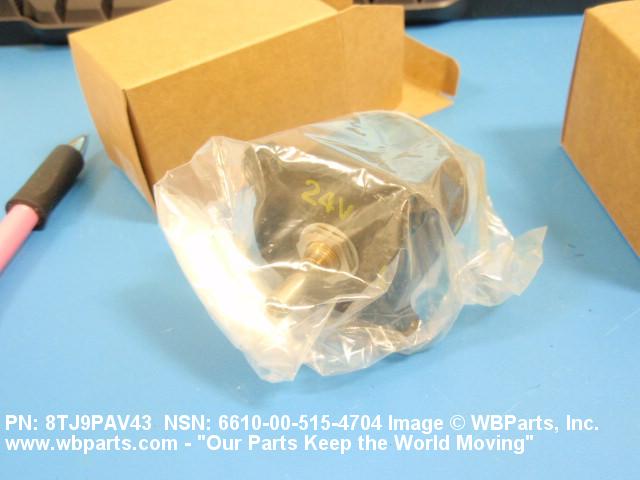

Drawings & Photos | NSN 6610-00-515-4704
Demand History | NSN 6610-00-515-4704
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6610-00-515-4704 | 2021-08-215 | 1 | Norway |
| 8TJ9PAV40 | 2010-08-234 | 1 | US |
| 6610-00-515-4704 | 2010-08-234 | 1 | US |
| 6610-00-515-4704 | 2010-08-234 | 1 | US |
| 6610-00-515-4704 | 2010-07-203 | 6 | Australia |
| 8TJ9PAV | 2010-07-189 | 1 | US |
| 6610-00-515-4704 | 2009-01-14 | 2 | Netherlands |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6610-00-515-4704
Related Products | NSN 6610-00-515-4704
Technical Data | NSN 6610-00-515-4704
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 1.844 INCHES NOMINAL |
| OVERALL WIDTH | 1.844 INCHES NOMINAL |
| OVERALL HEIGHT | 1.625 INCHES NOMINAL |
| MOUNTING METHOD | STOP NUTS |
| ELECTRICAL CONNECTION QUANTITY | 1 |
| CONTACT QUANTITY | 4 |
| CONTACT TYPE | PIN |
| ELECTRICAL CONNECTION CONTROLLING AGENCY | ANA |
| ELECTRICAL CONNECTION IDENTIFYING NUMBER | TYPE NO. AND10066-14S-2P |
| MECHANICAL CONNECTION QUANTITY | 1 |
| MECHANICAL CONNECTION SIZE | 0.250 |
| MECHANICAL CONNECTION TYPE | SHAFT |
| CURRENT TYPE | DC |
| VOLTAGE IN VOLTS | 24.0 |
| ACTUATION METHOD | MECHANICAL LINKAGE |
| III SUPPLEMENTARY FEATURES | CONTAINS LESS THAN 15 GRAMS OF SILVER |
Restrictions/Controls & Freight Information | NSN 6610-00-515-4704
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6610-00-515-4704
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9J | Navy-owned stocks of material managed by the Air Force within the Oklahoma City Air Logistics Center Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
