NSN 6610-00-131-8817 ARU-20/A, ARU20A, MILI27710
Product Details | ATTITUDE INDICATOR
6610-00-131-8817 An indicator which presents information showing the roll and pitch angles of an aircraft in relation to the earth.
Part Alternates: ARU-20/A, ARU20A, MILI27710, MIL-I-27710, 109090, 6610-00-131-8817, 00-131-8817, 6610001318817, 001318817
Instruments and Laboratory Equipment | Flight Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 18 DEC 1968 | 00-131-8817 | 03393 ( INDICATOR, ATTITUDE ) |

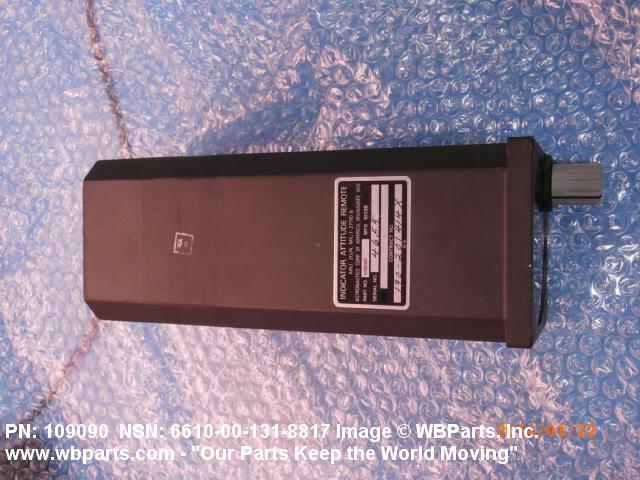

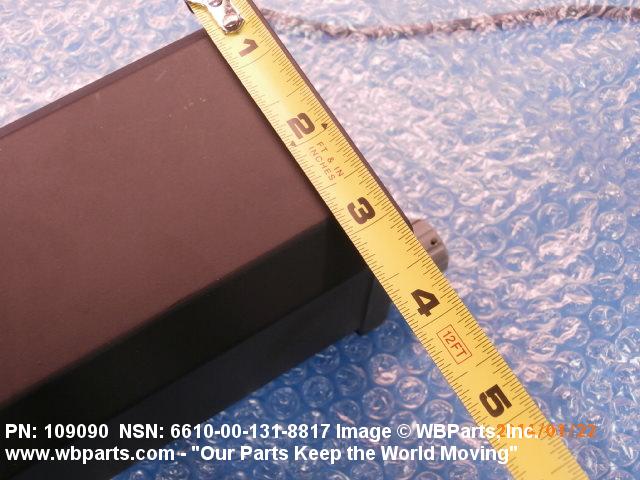

Drawings & Photos | NSN 6610-00-131-8817
Demand History | NSN 6610-00-131-8817
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6610-00-131-8817 | 2018-11-306 | 1 | US |
| 109090 | 2018-10-281 | 1 | TH |
| 6610-00-131-8817 | 2018-06-157 | 1 | Thailand |
| 6610-00-131-8817 | 2017-09-269 | 2 | US |
| 6610-00-131-8817 | 2017-04-109 | 1 | us |
| 6610-00-131-8817 | 2014-01-15 | 2 | United States |
| ARU20A | 2013-07-211 | 1 | MX |
| 6610-00-131-8817 | 2013-04-119 | 2 | United States |
| 6610-00-131-8817 | 2012-12-340 | 2 | United States |
| 6610-00-131-8817 | 2012-06-153 | 1 | MANUAL |
| 6610-00-131-8817 | 2009-07-191 | 1 | MX |
| ARU20A | 2009-06-162 | 1 | MX |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6610-00-131-8817
Related Products | NSN 6610-00-131-8817
Technical Data | NSN 6610-00-131-8817
| Characteristic | Specifications |
|---|---|
| ELECTRICAL CONNECTION QUANTITY | 1 |
| ELECTRICAL CONNECTION IDENTIFYING NUMBER | PART NO. PT02H-14-19P |
| POINTER PURPOSE | PITCH OF ACFT; ROLL OF ACFT |
| CURRENT TYPE | AC |
| AC VOLTAGE RATING | 115.0 VOLTS NOMINAL |
| PHASE | SINGLE |
| FREQUENCY RATING | 400.0 HERTZ NOMINAL |
| CONTACT QUANTITY | 14 |
| CONTACT TYPE | PIN |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 BEZEL |
| WIDTH | 3.260 INCHES NOMINAL |
| HEIGHT | 3.255 INCHES NOMINAL |
| DEPTH | 9.749 INCHES NOMINAL |
| SPECIAL FEATURES | 5 VDC LIGHTING; 1 KNOB; SPHERE SHOWS PITCH AND ROLL OF ACFT; MINIATURE AIRPLANE REFERENCE FOR PITCH AND BANK INDICATORS; BANK INDEX USED TO SHOW BANK ANGLE |
| III SUPPLEMENTARY FEATURES | DISPLAYS ATTITUDE INFORMATION FOR HIGH PERFORMANCE ACFT WHICH HAVE WHITE LIGHTED INSTRUMENT PANELS; THE INDICATOR IS CONTROLLED BY A VERTICAL REFERENCE CONTROL WHICH PROVIDES PITCH AND ROLL OUTPUT SIGNALS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | ARU-20/A |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-I-27710 |
Restrictions/Controls & Freight Information | NSN 6610-00-131-8817
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6610-00-131-8817
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | VF | FIGHTERAIRCRAFT(F5 E/F) |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
