NSN 6605-00-526-7252 AN57664, AN5766-4, 1630X403

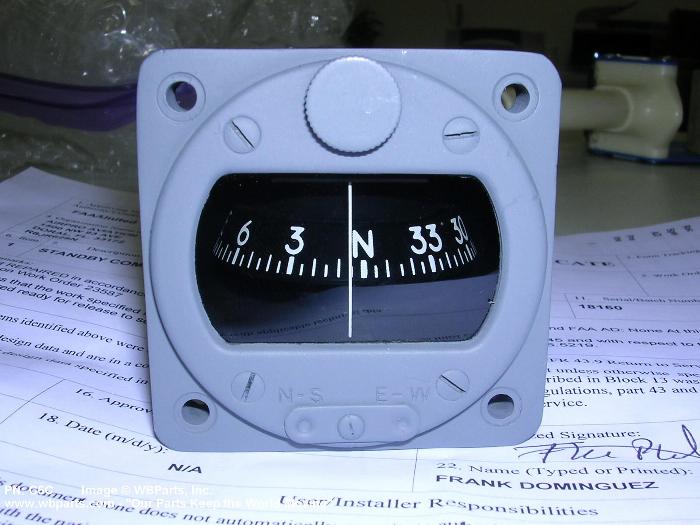

Product Details | MOUNTED MAGNETIC COMPASS
6605-00-526-7252 An instrument which utilizes a magnetic needle or indicator and a graduated dial or card to determine direction in relation to the magnetic north. It has provisions for mounting in a fixed position to insure proper alignment when in use.
Part Alternates: AN57664, AN5766-4, 1630X403, 1630X4-03, 6605-00-526-7252, 00-526-7252, 6605005267252, 005267252
Instruments and Laboratory Equipment | Navigational Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-526-7252 | 16206 ( COMPASS, MAGNETIC, MOUNTED ) |
Demand History | NSN 6605-00-526-7252
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN57664 | 2013-03-85 | 2 | Sweden |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare

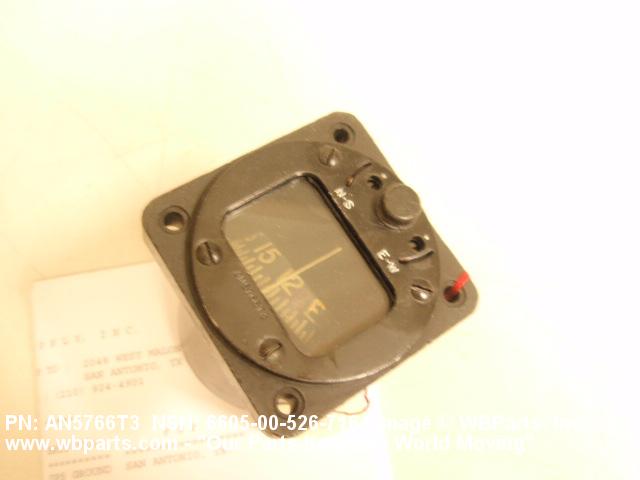

Related Products | NSN 6605-00-526-7252
Technical Data | NSN 6605-00-526-7252
| Characteristic | Specifications |
|---|---|
| INSTRUMENT TYPE | WET |
| FLUID TYPE | 0IL |
| BOWL SHAPE | FLAT |
| BOWL ELEMENT TYPE | CARD |
| CARD SIZE | 1.750 INCHES |
| DESIGN TYPE | SIDE READING |
| ILLUMINATED FEATURE | INCLUDED |
| ILLUMINATED LOCATION | OVER |
| MOUNTING METHOD | PANEL |
| COMPENSATING FEATURE | INCLUDED |
| COMPENSATOR TYPE | QUADRANTAL CYLINDERS |
| HEELING CORRECTORS | NOT PROVIDED |
| SMALLEST INCREMENT IN DEG | 5.0 CARD |
| OVERALL LENGTH | 2.550 INCHES NOMINAL |
| OVERALL WIDTH | 2.375 INCHES NOMINAL |
| OVERALL HEIGHT | 2.375 INCHES NOMINAL |
| MANUFACTURERS CODE | 88044 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN5766-4 |
| MANUFACTURERS CODE | 89944 |
| DESIGN CONTROL REFERENCE | 1630X4-03 |
Restrictions/Controls & Freight Information | NSN 6605-00-526-7252
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Hazardous Control Code: | A2 | Radioactive, License Exempt RADIOACTIVE, EXEMPT |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
