NSN 6540-01-096-4496 AF24799G, AF24799-G, NAF24799M
Product Details | SPECTACLE FRAME
6540-01-096-4496 00020265400047Ophthalmic Instruments, Equipment, and Supplies84150025Clothing, Special Purpose
Part Alternates: AF24799G, AF24799-G, NAF24799M, NAF24799-M, 52MMEYEX20MMBRIDGENOSEPADS, 6540-01-096-4496, 01-096-4496, 6540010964496, 010964496
Medical, Dental, and Veterinary Equipment and Supplies | Ophthalmic Instruments, Equipment, and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | 20 JUN 1980 | 01-096-4496 | 13688 ( FRAME, SPECTACLE ) |
Drawings & Photos | NSN 6540-01-096-4496
Demand History | NSN 6540-01-096-4496
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 52MM EYE X 20MM BRIDGE,NOSE PADS | 2024-08-214 | 24 | DIBBS |
| AF24799-G | 2024-08-214 | 24 | DIBBS |
| 52MM EYE X 20MM BRIDGE,NOSE PADS | 2021-11-306 | 1 | DIBBS |
| AF24799-G | 2021-11-306 | 1 | DIBBS |
| 52MM EYE X 20MM BRIDGE,NOSE PADS | 2019-01-29 | 24 | DIBBS |
| AF24799-G | 2019-01-29 | 24 | DIBBS |
| 52MM EYE X 20MM BRIDGE,NOSE PADS | 2019-01-23 | 24 | DIBBS |
| AF24799-G | 2019-01-23 | 24 | DIBBS |
| 6540-01-096-4496 | 2018-05-122 | 1 | DIBBS |
| 6540-01-096-4496 | 2010-01-25 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6540-01-096-4496
Related Products | NSN 6540-01-096-4496
Technical Data | NSN 6540-01-096-4496
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B5 DOUBLE BAR BRIDGE WITH ROCKER NOSE PADS |

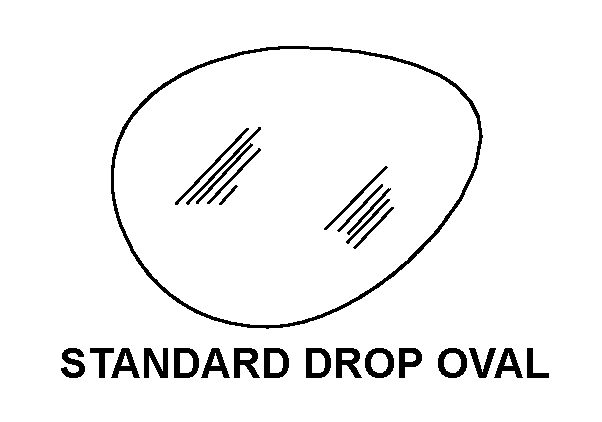

| LENS STYLE | A3 STANDARD DROP OVAL |
| LARGEST DIAMETER | 52.000 MILLIMETERS NOMINAL |
| SMALLEST DIAMETER | 42.000 MILLIMETERS NOMINAL |
| BRIDGE MATERIAL | NICKEL SILVER |
| BRIDGE SURFACE TREATMENT | NICKEL PLATED |
| LENS RIM MATERIAL | NICKEL SILVER |
| LENS RIM SURFACE TREATMENT | NICKEL PLATED |
| BRIDGE WIDTH | 20.0 MILLIMETERS |
| TEMPLE SECTION MATERIAL | NICKEL SILVER |
| TEMPLE SECTION SURFACE TREATMENT | NICKEL PLATED |
| TEMPLE CORE | INCLUDED |
| HEADBAND | NOT PROVIDED |
| CARRYING CASE | NOT PROVIDED |
| SPECIAL FEATURES | 42 BY 52 EYE; TEMPLES 6.500 IN. W/PLASTIC COVERS; TEMPLE SECTION ALTERNATE MATERIAL PHOSPHOR BRONZE; NOSE PADS SHALL BE CLEARCOLORLESS CELLULOSE ACETATE OR ACETATE BUTYRATE; TEMPLE COVERS SHALL BE VINYL ACETATE OR VINYL OR BUTYRATE; PAD INSERT SHALL BE NICKEL RHODIUM PLATED; PAD WASHER SHALL BE MONEL 400 MATERIAL; TEMPLE SCREWS SHALL BE LEADED NICKEL SLVER; PAD ARM SHALL BE NICKEL SILVER OVERPLATED WITH DULL NICKEL AND CHROMIUM ELECTROPLATE |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | FRAME SPECTACLE COMFORT CABLE TEMPLES 42 BY 52 EYE 20 BRIDGE |
Restrictions/Controls & Freight Information | NSN 6540-01-096-4496
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058110 | OPTICAL GOODS OR INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | D | 200.0 |
| Water commodity Code | 744 | unknown |
| Originating Activity Code | KX | Defense Supply Center Philadelphia Philiadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6540-01-096-4496
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | C | Medical/Dental Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 03 | Not-Potency-Dated |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
