NSN 6540-00-001-1198 M050ONM400CR39, 00-001-1198, 000011198
Product Details | COMPOUND OPHTHALMIC LENS
6540-00-001-1198 A transparent optical element having a spherical curve and a cylindrical curve used to correct vision defects of the eye.
Part Alternates: M050ONM400CR39, 6540-00-001-1198, 00-001-1198, 6540000011198, 000011198
Medical, Dental, and Veterinary Equipment and Supplies | Ophthalmic Instruments, Equipment, and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | 05-NOV-93 | 00-001-1198 | 04121 ( LENS, OPHTHALMIC, COMPOUND ) |
Drawings & Photos | NSN 6540-00-001-1198
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6540-00-001-1198
Technical Data | NSN 6540-00-001-1198
| Characteristic | Specifications |
|---|---|

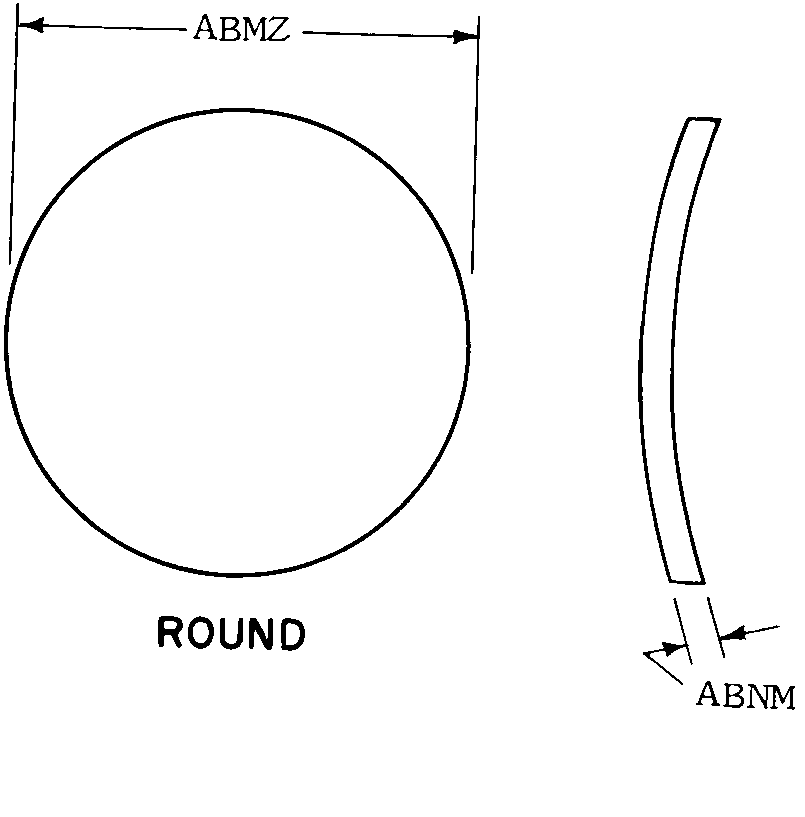

| STYLE DESIGNATOR | A3 ROUND |
| DIAMETER | 71.0 MILLIMETERS NOMINAL |
| THICKNESS | 1.8 MILLIMETERS NOMINAL |
| MATERIAL AND LOCATION | PLASTIC SINGLE VISION |
| LIGHT TRANSMISSION | UNTINTED |

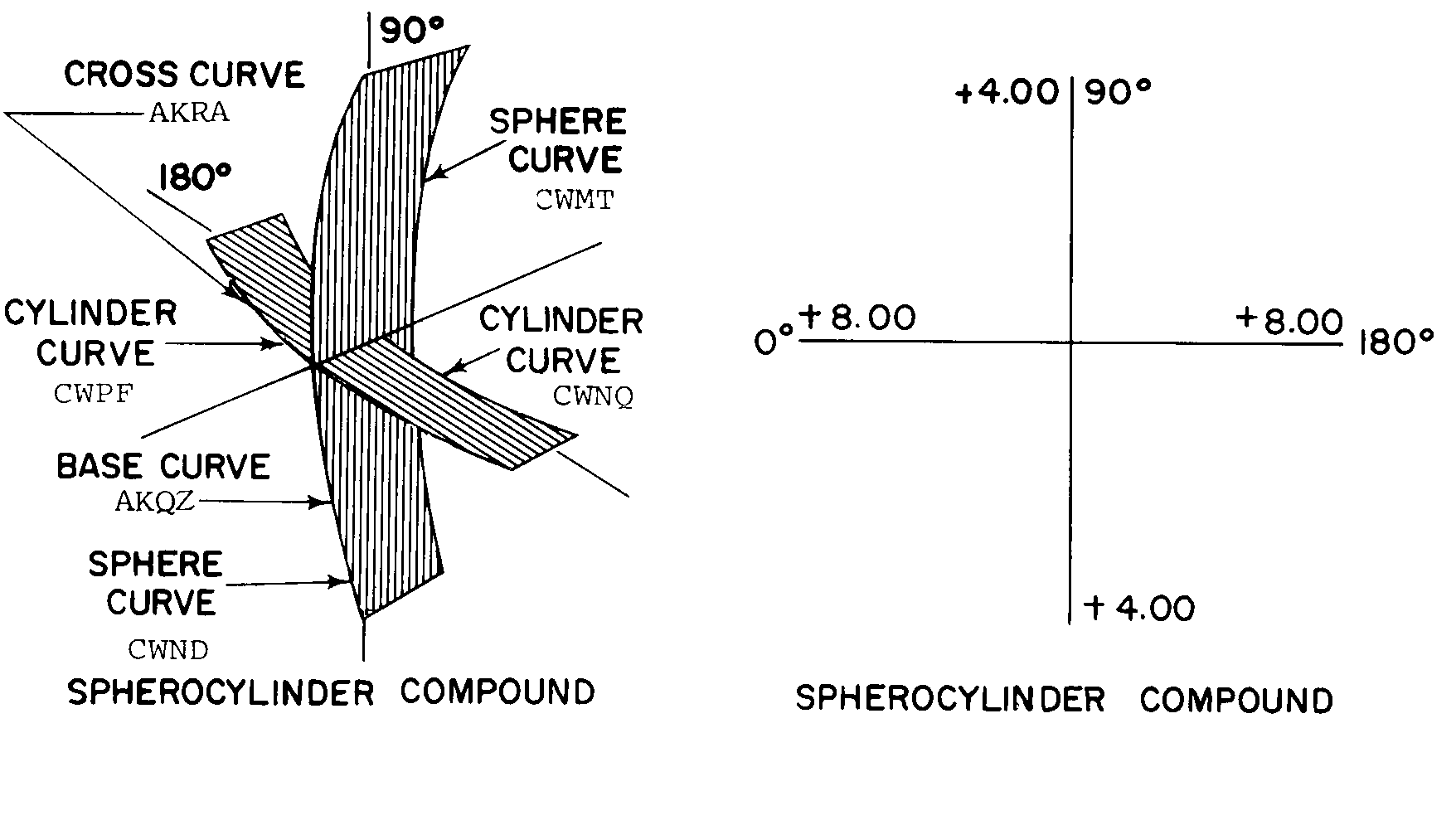

| CROSS-SECTIONAL SHAPE STYLE | D3 SPHEROCYLINDER COMPOUND |
| BASE CURVE DIOPTER | ANY ACCEPTABLE |
| CROSS CURVE DIOPTER | ANY ACCEPTABLE |
| SPHERE CURVE INSIDE DIOPTER | 0.50 MINUS NOMINAL |
| SPHERE CURVE OUTSIDE DIOPTER | ANY ACCEPTABLE |
| CYLINDER CURVE INSIDE DIOPTER | 4.00 MINUS NOMINAL |
| CYLINDER CURVE OUTSIDE DIOPTER | ANY ACCEPTABLE |
| SPECIAL FEATURES | WHITE,UNCUT, CR-39 |
| III INTERMEDIATE PACKAGE QUANTITY | 5 |
| III EXTERIOR CONTAINER QUANTITY | 180 |
| III UNIT OF ISSUE WEIGHT | 0.264 POUNDS |
| III EXTERIOR CONTAINER WEIGHT | 47.52 POUNDS |
| III UNIT OF ISSUE CUBE | 0.0062 CUBIC FEET |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | LENS OPHTHALMIC COMPOUND WHITE UNCUT CR-39 P0-265 |
| III EXTERIOR CONTAINER CUBIC MEASURE | 1.125 CUBIC FEET |
Restrictions/Controls & Freight Information | NSN 6540-00-001-1198
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
