NSN 6530-00-422-8120 DDP355TYPE1, WM535S, 00-422-8120
Product Details | DROPPING PIPET
6530-00-422-8120 A tubular item with a rubber bulb and a stem with a narrow tip, designed to deliver liquids drop by drop. It may be graduated.20265300053Hospital Furniture, Equipment, Utensils, and Supplies66400033Laboratory Equipment and Supplies
Part Alternates: DDP355TYPE1, WM535S, 6530-00-422-8120, 00-422-8120, 6530004228120, 004228120
Medical, Dental, and Veterinary Equipment and Supplies | Hospital Furniture, Equipment, Utensils, and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | 01 JAN 1961 | 00-422-8120 | 14623 ( PIPET, DROPPING ) |

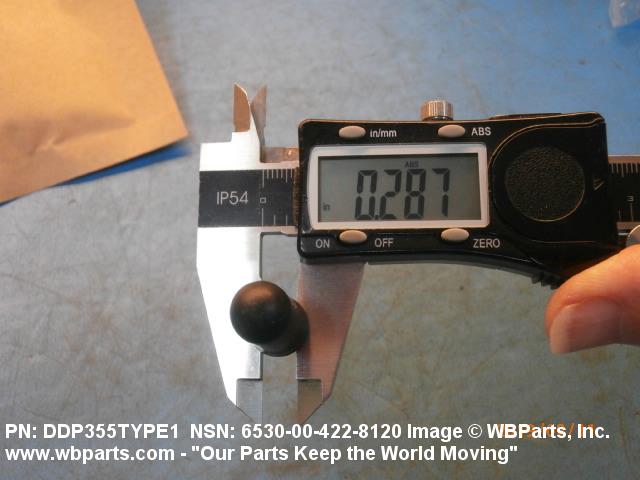

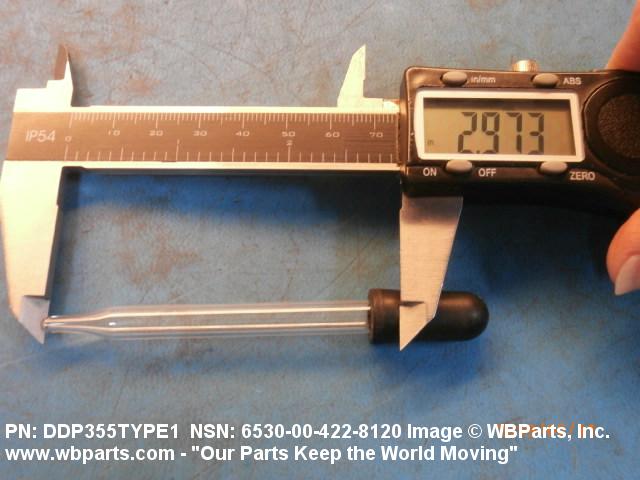

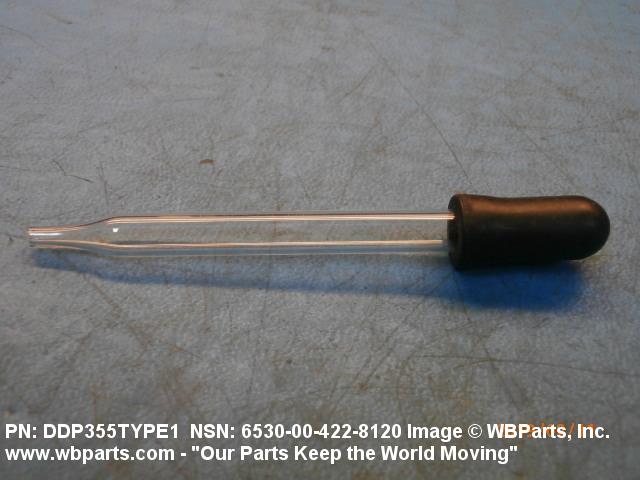

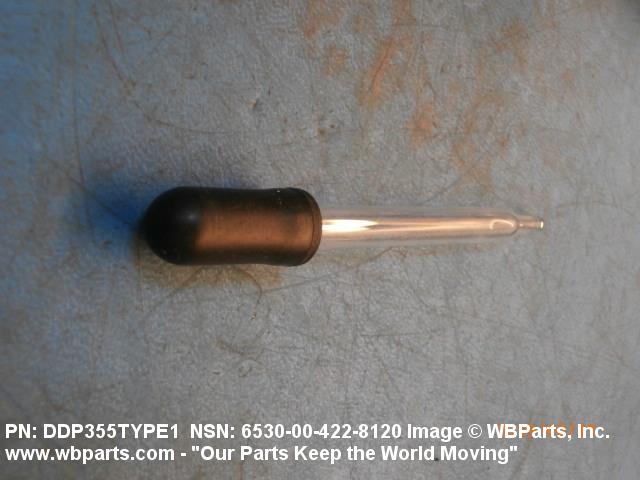

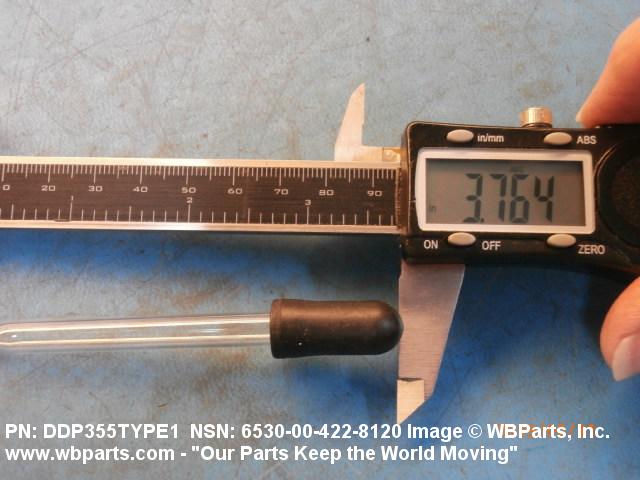

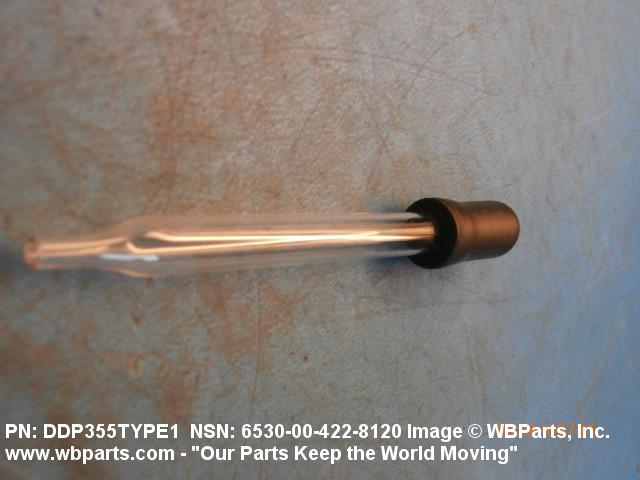

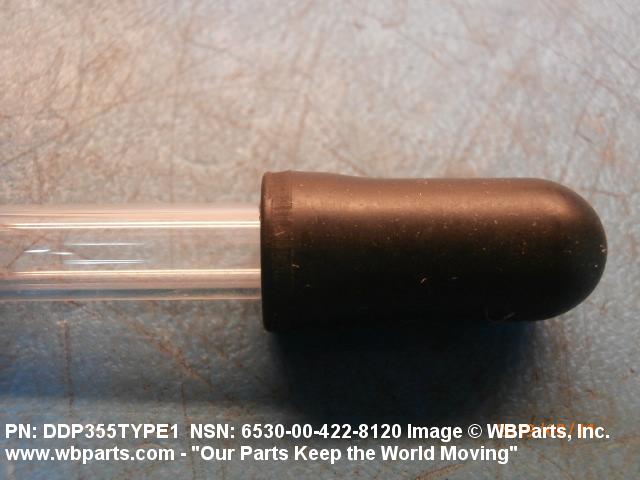

Drawings & Photos | NSN 6530-00-422-8120
Demand History | NSN 6530-00-422-8120
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6530-00-422-8120 | 2021-11-329 | 2 | US |
| 6530-00-422-8120 | 2021-11-328 | 2 | US |
| 6530-00-422-8120 | 2019-01-07 | 1 | United States |
| 6530-00-422-8120 | 2018-12-355 | 1 | United States |
| 6530-00-422-8120 | 2018-12-354 | 1 | United States |
| 6530-00-422-8120 | 2018-12-337 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6530-00-422-8120
Related Products | NSN 6530-00-422-8120
Technical Data | NSN 6530-00-422-8120
| Characteristic | Specifications |
|---|---|
| DESIGN DESIGNATION | USP |
| MATERIAL | GLASS |
| STYLE DESIGNATOR | M15 DROPPING STRAIGHT END PLAIN TIP |
| OVERALL LENGTH | 2.875 INCHES MINIMUM AND 3.125 INCHES MAXIMUM |
| BULB LENGTH | ANY ACCEPTABLE |
| OUTSIDE DIAMETER EXCLUDING COLLAR | 0.188 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| CAPACITY RATING | NOT RATED |
| CALIBRATION FUNCTION | TO DELIVER |
| PRIMARY CONTAINER TYPE | CARTON |
| PRIMARY CONTAINER UNIT QUANTITY | 12 |
| TOTAL PRIMARY CONTAINER QUANTITY | 1 |
| UNIT PACKAGE TYPE | CARTON |
| SPECIAL FEATURES | RUBBER BULB; (MEDICINE DROPPER); PLAIN TIP; UNGRADUATED; FOR REPLACEMENT BULB,ORDER 6640-00-409-7000 |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE |
| III INTERMEDIATE PACKAGE QUANTITY | 24 |
| III EXTERIOR CONTAINER QUANTITY | 288 |
| III UNIT OF ISSUE WEIGHT | 0.14 POUNDS |
| III EXTERIOR CONTAINER WEIGHT | 72.00 POUNDS |
| III UNIT OF ISSUE CUBE | 0.010 CUBIC FEET |
| III EXTERIOR CONTAINER CUBIC MEASURE | 3.900 CUBIC FEET |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | PIPET DROPPING GLASS 2.875/3.125" MIN/MAX LENGTH RUBBER BULB 12S |
| MANUFACTURERS CODE | 81348 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | DDP355TYPE1 |
Restrictions/Controls & Freight Information | NSN 6530-00-422-8120
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | J | PILFERAGE - PILFERAGE CONTROLS MAY BE DESIGNATED BY THE CODING ACTIVITY TO ITEMS CODED U (UNCLASSIFIED) BY RECORDING THE ITEM TO J./  |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 056680 | DENTAL/MEDICAL/SURG INST R MACHINE |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 651 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6530-00-422-8120
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | C | Medical/Dental Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 03 | Not-Potency-Dated |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | J | PILFERAGE - PILFERAGE CONTROLS MAY BE DESIGNATED BY THE CODING ACTIVITY TO ITEMS CODED U (UNCLASSIFIED) BY RECORDING THE ITEM TO J. |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | J | PILFERAGE - PILFERAGE CONTROLS MAY BE DESIGNATED BY THE CODING ACTIVITY TO ITEMS CODED U (UNCLASSIFIED) BY RECORDING THE ITEM TO J. |
| Shelf Life Code | 0 | Nondeteriorative |
