Product Details | INTRAVENOUS CATHETER

6515-01-485-8191 A component of a CATHETER AND NEEDLE UNIT, INTRAVENOUS. It is a flexible, homogenous, hollow, cylindrical item, having a funnel or luer end, suitable for introduction into a vein. It is nontoxic and free from tissue reaction, and capable of insertion through a hypodermic needle of specific size. For items without funnel or luer end, see TUBE, INTRAVENOUS.

Part Alternates: HASDC701LSCMPISCLMP, HASDC-701-LSC-MPIS-CLMP, 240275, 6515-01-485-8191, 01-485-8191, 6515014858191, 014858191

Medical, Dental, and Veterinary Equipment and Supplies | Medical and Surgical Instruments, Equipment, and Supplies

Supply Group (FSG) NSN Assign. NIIN
65 07 JUN 2001 01-485-8191

Drawings & Photos | NSN 6515-01-485-8191


Cross Reference | NSN 6515-01-485-8191

Part Number Cage Code Manufacturer
240275 29317 COOK INCORPORATED
HASDC-701-LSC-MPIS-CLMP 29317 COOK INCORPORATED

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6515-01-485-8191

Technical Data | NSN 6515-01-485-8191

Characteristic Specifications
DESIGN DESIGNATION INTRAVENOUS

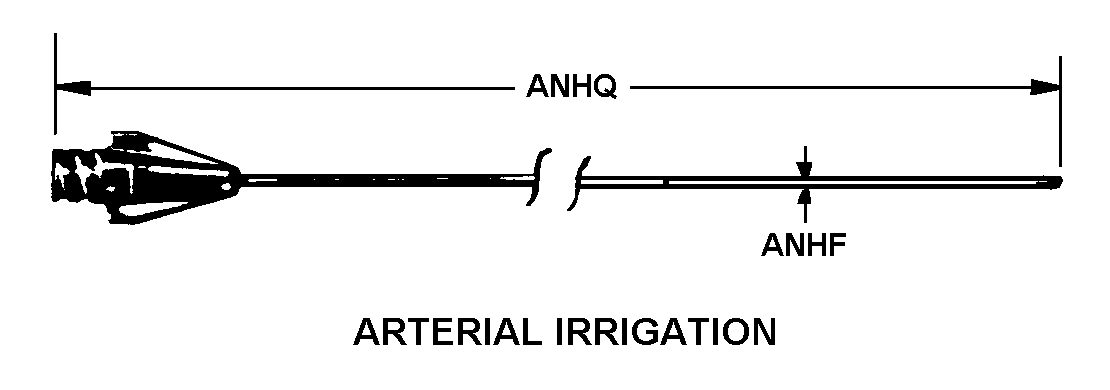

STYLE DESIGNATOR D29 ARTERIAL IRRIGATION
CATHETER NOMINAL LENGTH 25.0 MILLIMETERS
MATERIAL AND LOCATION SILICONE CATHETER
LUMEN PASSAGE QUANTITY 2
TIP TYPE DOUBLE LUER LOCK HUB
FEATURES PROVIDED STERILE AND CLAMP FLOW CONTROL DEVICE AND DISPOSABLE
SPECIAL FEATURES DOUBLE LUMEN, FRENCH SIZE 7; INTRODUCER LGTH 20 CM; CURVED MULTIPURPOSE PEELAWAY SHEATH; LGTH 9 CM; INTRODUCER FR SIZE 8; W/OPTIONAL SYNTHETIC FIBER CUFF AND CLAMP; RADIOPAQUE SILICON; USED FOR VENOUS PRESSURE MONITORING, BLOOD SAMPLING, ADMINISTRATION OF FLUIDS/DRUGS

Restrictions/Controls & Freight Information | NSN 6515-01-485-8191

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
