Product Details | ANGIOGRAPHY CATHETER

6515-01-465-2945 A sterile, radiopaque, multipurpose item for various types of cardiac angiographic studies. It may have an open tip with two sideports on the distal end and is able to accept a 0.045 inch guide wire. Excludes CATHETER, CARDIOVASCULAR.

Part Alternates: P7.1-38-65-P-6S-0, P7.1-38-65-P-6S-O, P713865P6S0, P713865P6SO, 6515-01-465-2945, 01-465-2945, 6515014652945, 014652945

Medical, Dental, and Veterinary Equipment and Supplies | Medical and Surgical Instruments, Equipment, and Supplies

Supply Group (FSG) NSN Assign. NIIN
65 28 MAY 1999 01-465-2945

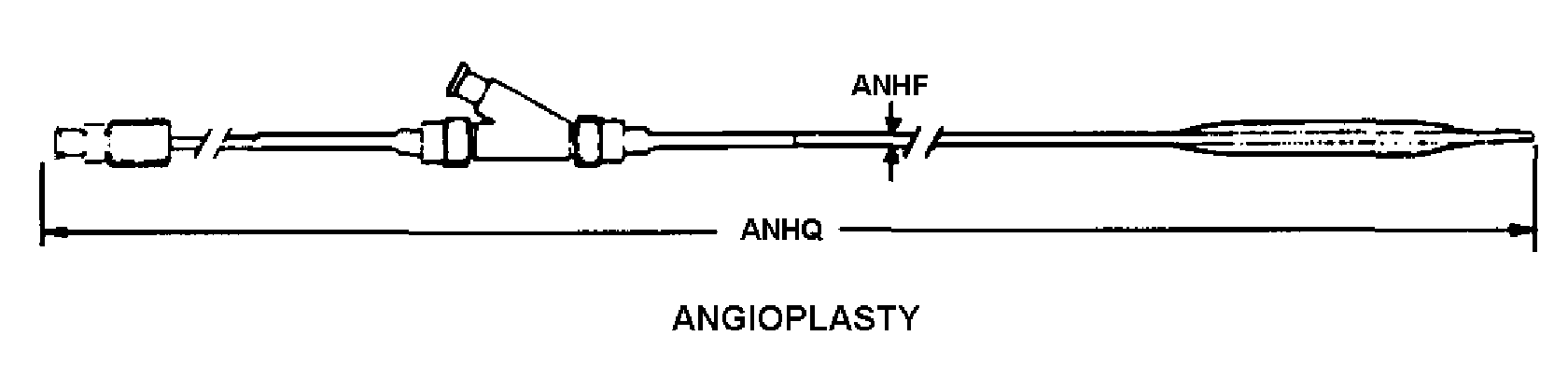

Drawings & Photos | NSN 6515-01-465-2945


Cross Reference | NSN 6515-01-465-2945

Part Number Cage Code Manufacturer
P7.1-38-65-P-6S-0 29317 COOK INCORPORATED
P7.1-38-65-P-6S-O K5F35 COOK UK LTD

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6515-01-465-2945

Technical Data | NSN 6515-01-465-2945

Characteristic Specifications
STYLE DESIGNATOR D23 ANGIOPLASTY
NOMINAL DIAMETER 2.360 MILLIMETERS
CATHETER NOMINAL LENGTH 65.000 CENTIMETERS
MATERIAL AND LOCATION PLASTIC, POLYETHYLENE TUBE
TIP TYPE TAPERED
CONNECTOR TYPE LUER LOCK HUB
CORE FABRICATION METHOD NOT WOVEN
FEATURES PROVIDED DISPOSABLE AND STERILE
SPECIAL FEATURES FRENCH SIZE 7.1; PLIABLE; MEDIUM FRICTION COEFF; CONTAINS BISMUTH SALTS FOR RADIOPACITY; FOR SELECTIVE/SUPERSELECTIVE ANGIOGRAMS IN VENA CAVA AND AORTA; PEEL OPEN PKG; LUMEN 1.57 MM; RED COLOR; WIRE GUIDE DIA 0.038 IN; 6 SIDEPORTS

Restrictions/Controls & Freight Information | NSN 6515-01-465-2945

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
