Product Details | URETHRAL CATHETER

6515-01-452-3114 An item designed for insertion through the urinary tract as far as the bladder to allow drainage, irrigation, observation, and application of medication. For items designed to drain the ureter, see CATHETER, URETERAL. For items designed to be inserted through an incision or wound, see DRAIN, SURGICAL; and TUBE, (as modified).

Part Alternates: 675182, 8887675182, 8887-675182, 6515-01-452-3114, 01-452-3114, 6515014523114, 014523114

Medical, Dental, and Veterinary Equipment and Supplies | Medical and Surgical Instruments, Equipment, and Supplies

Supply Group (FSG) NSN Assign. NIIN
65 22 JAN 1998 01-452-3114

Drawings & Photos | NSN 6515-01-452-3114


Cross Reference | NSN 6515-01-452-3114

Part Number Cage Code Manufacturer
675182 024B2 DOVER MEDICAL SALES
8887-675182 0B4J7 MG SCIENTIFIC INC
8887-675182 55194 SHERWOOD MEDICAL CO

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6515-01-452-3114

Technical Data | NSN 6515-01-452-3114

Characteristic Specifications
DESIGN DESIGNATION FOLEY

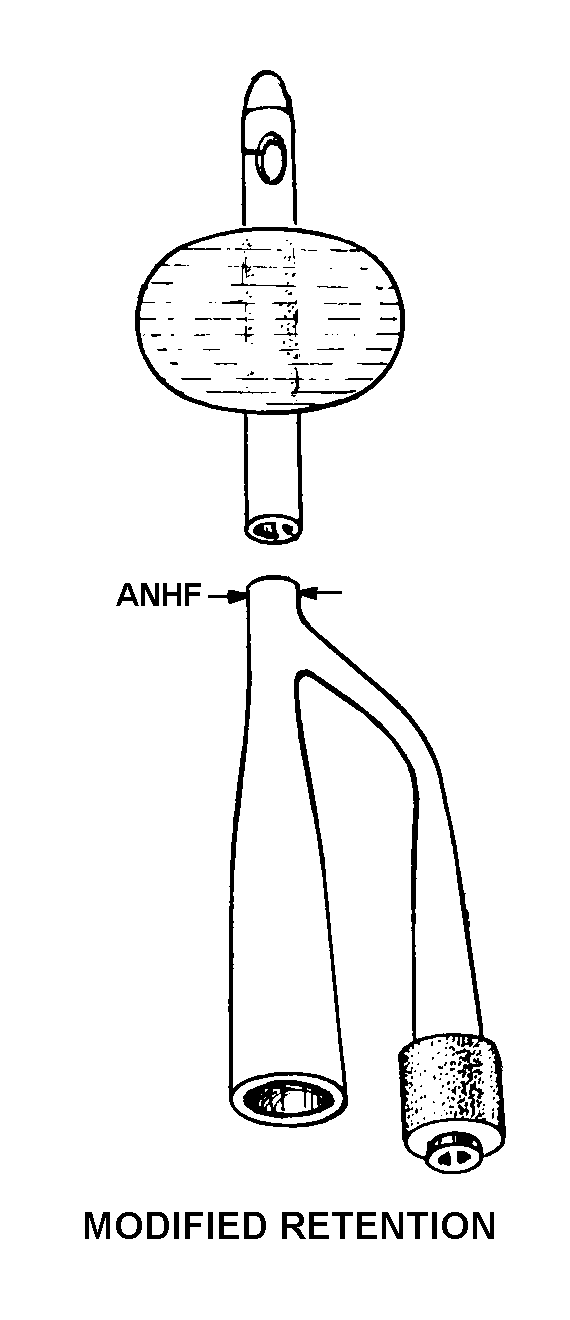

STYLE DESIGNATOR B10 MODIFIED RETENTION
NOMINAL DIAMETER 18.000 FRENCH
MATERIAL AND LOCATION RUBBER, LATEX OVERALL
SHAFT EYE QUANTITY 2
BALLOON CAPACITY 5.000 CUBIC CENTIMETERS
LUMEN PASSAGE QUANTITY 2
TIP TYPE REINFORCED AND ROUND AND SMOOTH
CORE FABRICATION METHOD ANY ACCEPTABLE
FEATURES PROVIDED DISPOSABLE AND STERILE
SPECIAL FEATURES NON-REACTIVE, NON-ADHERING BONDED SILICONE ELASTOMER COATED LATEX FOLEY CATHETER; SMOOTH, ROUNDED, REINFORCED TIP; STYLET POCKET; LARGE, BURNISHED EYES; REINFORCED RIBBED BALLOON; UNIVERSAL VALVE WITH COLOR-CODED RETAINER RING; PEEL-BACK POUCH

Restrictions/Controls & Freight Information | NSN 6515-01-452-3114

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
