NSN 6515-01-412-9506 SBD100, SBD-100, 01-412-9506
Product Details | SURGICAL DUODENAL TUBE
6515-01-412-9506 An elastic tube of small diameter approximately 4 feet to 10 feet (1200 millimeters to 3100 millimeters) long, with graduations. The inlet end may be funnel-shaped or designed to accommodate fittings. The outlet end may be closed (with side openings) or open to receive various perforated tips. It is used for gastric analysis, diagnosis, and treament; removal of duodenal contents; and treatment and diagnosis of obstructive lesions of the small intestine.
Part Alternates: SBD100, SBD-100, 6515-01-412-9506, 01-412-9506, 6515014129506, 014129506
Medical, Dental, and Veterinary Equipment and Supplies | Medical and Surgical Instruments, Equipment, and Supplies
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
65 | 02 MAY 1995 | 01-412-9506 | 13558 ( TUBE, DUODENAL, SURGICAL ) |
Cross Reference | NSN 6515-01-412-9506
Part Number | Cage Code | Manufacturer |
---|---|---|
SBD-100 | 29317 | COOK INCORPORATED |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 6515-01-412-9506
Related Products | NSN 6515-01-412-9506
Technical Data | NSN 6515-01-412-9506
Characteristic | Specifications |
---|---|

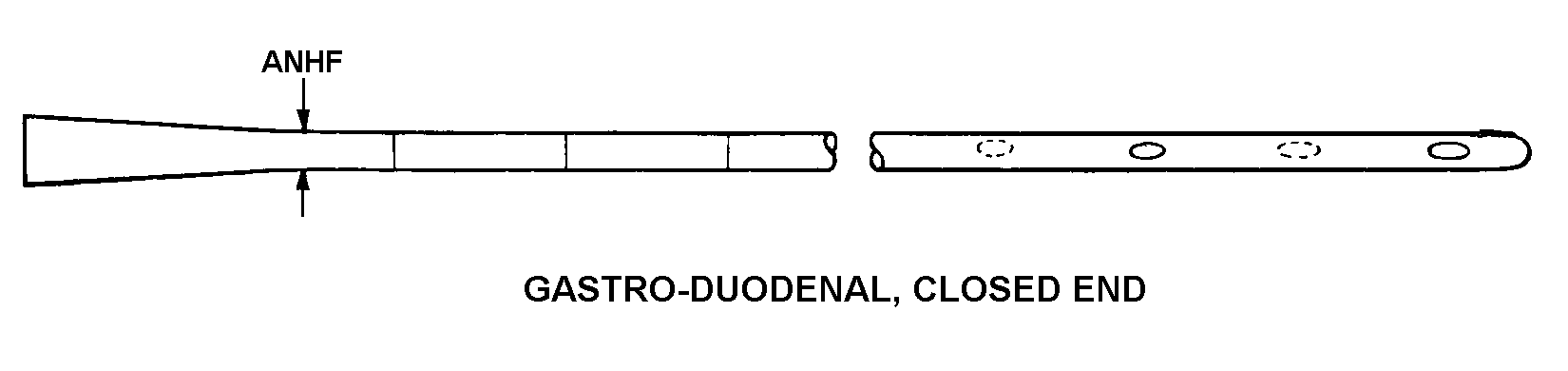

STYLE DESIGNATOR | E7 GASTRO-DUODENAL, CLOSED END |
NOMINAL DIAMETER | 14.000 FRENCH |
MATERIAL AND LOCATION | PLASTIC, POLYTETRAFLUOROETHYLENE OVERALL |
TIP TYPE | CLOSED |
FEATURES PROVIDED | STERILE AND DISPOSABLE |
SPECIAL FEATURES | CATHETER (125 CM. LONG) WITH SIX SIDEPORTS; TORQUE CABLE (.065 IN. DIA. AND 125 CM. LONG); HUB ACCEPTS STANDARD SYRINGE |
Restrictions/Controls & Freight Information | NSN 6515-01-412-9506
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
No Freight Information |
