NSN 6515-01-394-2659 F94G083, 94-7-15-47 MB-T, 9471547MBT
Product Details | BONE SCREW
6515-01-394-2659 A cylindrical rod incised with one or more helical or advancing spiral threads with smooth surfaces free from nicks, dents, burrs, and scratches suitable for use in orthopedic surgery and fabricated from implant-quality corrosion resisting material which is inert and biocompatible with human bones, tissues and internal chemistry.
Part Alternates: F94G083, 94-7-15-47 MB-T, 9471547MBT, 404.028, 404028, 6515-01-394-2659, 01-394-2659, 6515013942659, 013942659
Medical, Dental, and Veterinary Equipment and Supplies | Medical and Surgical Instruments, Equipment, and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | 05 AUG 1994 | 01-394-2659 | 06669 ( SCREW, BONE ) |
Drawings & Photos | NSN 6515-01-394-2659
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6515-01-394-2659
Technical Data | NSN 6515-01-394-2659
| Characteristic | Specifications |
|---|---|
| OUTSIDE THREAD DIAMETER | 3.5 MILLIMETERS NOMINAL |
| THREAD LENGTH | 28.0 MILLIMETERS |
| THREAD PITCH IN MILLIMETERS | 1.25 |
| MATERIAL AND LOCATION | TITANIUM OVERALL |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| SURFACE TREATMENT AND LOCATION | ANY ACCEPTABLE OVERALL |

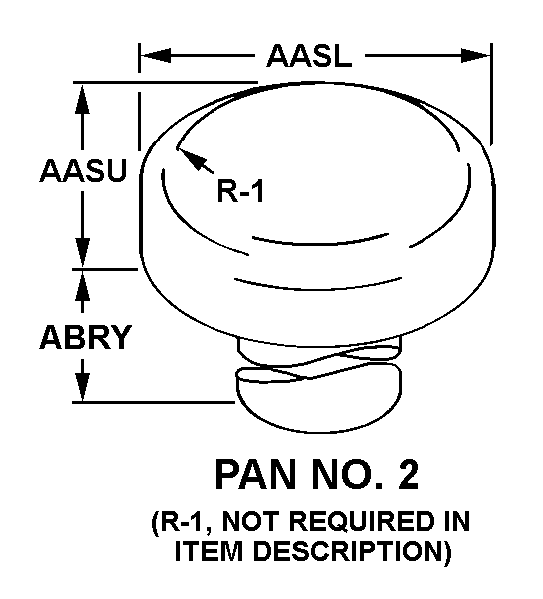

| HEAD STYLE | B21 PAN NO. 2 |
| HEAD DIAMETER | 6.0 MILLIMETERS NOMINAL |
| HEAD HEIGHT | 2.4 MILLIMETERS NOMINAL |
| LENGTH | 28.0 MILLIMETERS NOMINAL |
| RECESSED DRIVE STYLE | C5 SOCKET |
| SPECIAL FEATURES | 2.5 MM WIDTH ACROSS FLATS; CORTEX SCREW; CORE DIAMETER 2.4 MM |
Restrictions/Controls & Freight Information | NSN 6515-01-394-2659
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 056680 | DENTAL/MEDICAL/SURG INST R MACHINE |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 534 | unknown |
| Originating Activity Code | KX | Defense Supply Center Philadelphia Philiadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6515-01-394-2659
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9L | Navy-owned stocks of defense medical material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
