NSN 6515-01-382-8374 F93D215, 93-5-14-111 FR , 93514111FR
Product Details | SURGICAL DUODENAL TUBE

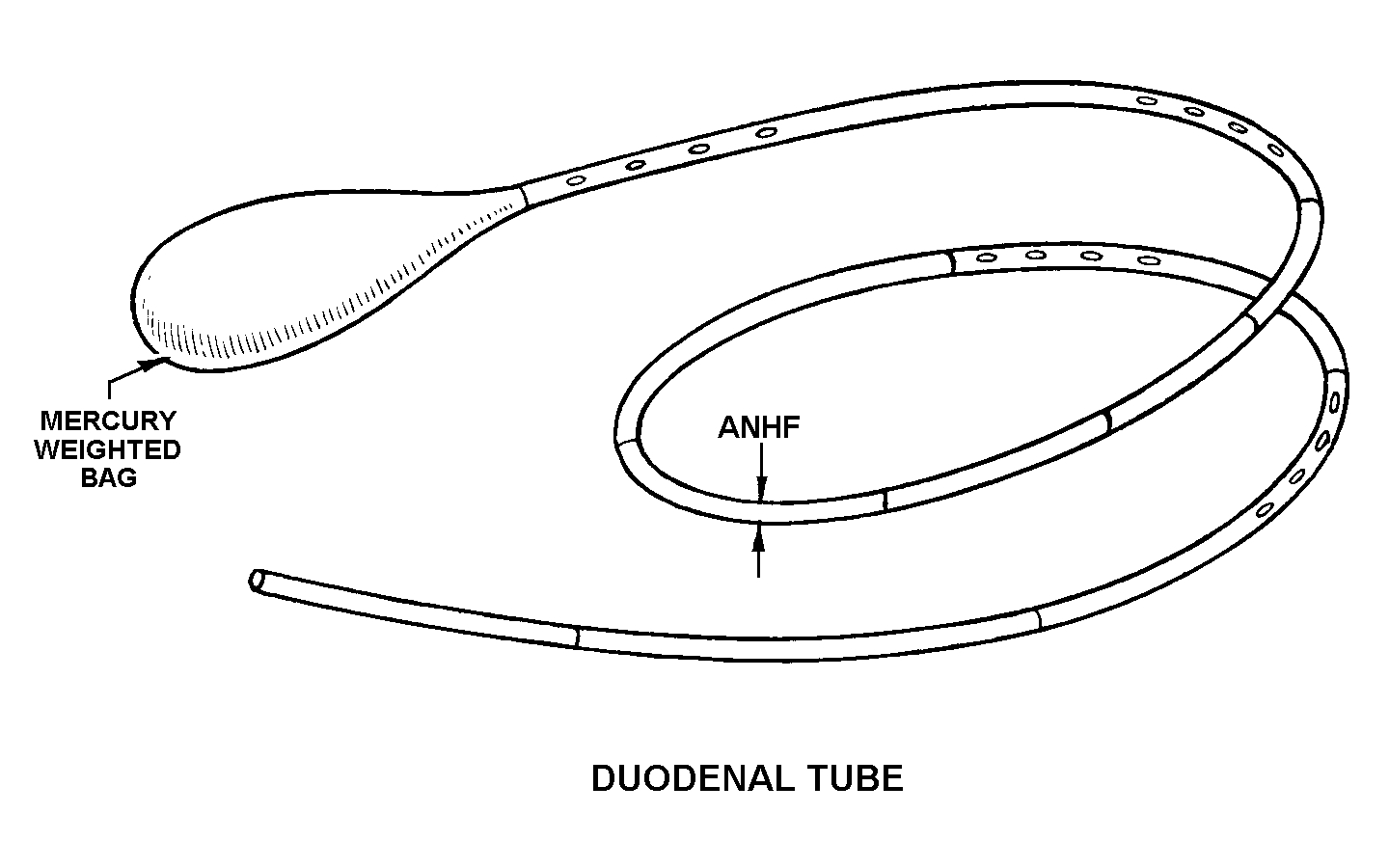

6515-01-382-8374 An elastic tube of small diameter approximately 4 feet to 10 feet (1200 millimeters to 3100 millimeters) long, with graduations. The inlet end may be funnel-shaped or designed to accommodate fittings. The outlet end may be closed (with side openings) or open to receive various perforated tips. It is used for gastric analysis, diagnosis, and treament; removal of duodenal contents; and treatment and diagnosis of obstructive lesions of the small intestine.
Part Alternates: F93D215, 93-5-14-111 FR , 93514111FR, 233016, 2330-16, 6515-01-382-8374, 01-382-8374, 6515013828374, 013828374
Medical, Dental, and Veterinary Equipment and Supplies | Medical and Surgical Instruments, Equipment, and Supplies
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
65 | 10 NOV 1993 | 01-382-8374 | 13558 ( TUBE, DUODENAL, SURGICAL ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 6515-01-382-8374
Related Products | NSN 6515-01-382-8374
Technical Data | NSN 6515-01-382-8374
Characteristic | Specifications |
---|---|
DESIGN DESIGNATION | CANTOR |
STYLE DESIGNATOR | E9 DUODENAL TUBE |
NOMINAL DIAMETER | 16.000 FRENCH |
MATERIAL AND LOCATION | PLASTIC, POLYVINYL CHLORIDE TUBE AND RUBBER, LATEX BALLOON |
TIP TYPE | OPEN END |
STOMACH TUBE BULB TYPE | MERCURY WEIGHTED |
CORE FABRICATION METHOD | NOT WOVEN |
FEATURES PROVIDED | STERILE AND DISPOSABLE |
SPECIAL FEATURES | WHITE; GRATUATED; 120 INS LG; RADIOPAQUE; PVC CONNECTOR; USED FOR INTESTINAL DECOMPRESSION; UNIT QTY 5 |
Restrictions/Controls & Freight Information | NSN 6515-01-382-8374
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
No Freight Information |
