Product Details | BONE SCREW

6515-01-367-1117 A cylindrical rod incised with one or more helical or advancing spiral threads with smooth surfaces free from nicks, dents, burrs, and scratches suitable for use in orthopedic surgery and fabricated from implant-quality corrosion resisting material which is inert and biocompatible with human bones, tissues and internal chemistry.

Part Alternates: FINE-THREAD CORTICAL SCREW, FINETHREADCORTICALSCREW, 23501235, 2350-12-35, 6515-01-367-1117, 01-367-1117, 6515013671117, 013671117

Medical, Dental, and Veterinary Equipment and Supplies | Medical and Surgical Instruments, Equipment, and Supplies

Supply Group (FSG) NSN Assign. NIIN
65 07-NOV-92 01-367-1117

Drawings & Photos | NSN 6515-01-367-1117


Cross Reference | NSN 6515-01-367-1117

Part Number Cage Code Manufacturer
2350-12-35 67239 ZIMMER, INC. DBA Z HOTEL
92-8-19-72 AH 66732 DEPARTMENT OF THE ARMY U S ARMY MEDICAL MATERIAL AGENCY
A92H009 66732 DEPARTMENT OF THE ARMY U S ARMY MEDICAL MATERIAL AGENCY
FINE-THREAD CORTICAL SCREW 67239 ZIMMER, INC. DBA Z HOTEL

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6515-01-367-1117

Technical Data | NSN 6515-01-367-1117

Characteristic Specifications
OUTSIDE THREAD DIAMETER 3.5 MILLIMETERS NOMINAL
MATERIAL AND LOCATION STEEL, CORROSION RESISTING OVERALL
HEAD STYLE B47 HEXAGON
LENGTH 12.0 MILLIMETERS NOMINAL

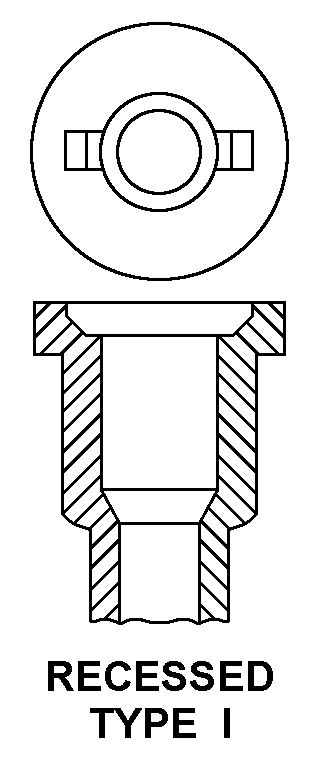

RECESSED DRIVE STYLE C6 RECESSED TYPE 1
SPECIAL FEATURES INTERFRAGMENTAL COMPRESSION IN CORTICAL BONE OR STRONG CANCELLOUS BONE; ALSO USED IN BONE PLATING; INSERTED USING 2305-24 HEXHEAD SCREWDRIVER SMALL; HEAD DIA. 6.0MM
III PART NAME ASSIGNED BY CONTROLLING AGENCY SCREW BONE B47 HEX C6 RECESSED 12MM LG INTERFRAGMENTAL CPRSN 6S

Restrictions/Controls & Freight Information | NSN 6515-01-367-1117

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
