Product Details | CARDIOVASCULAR CATHETER CONNECTING TUBE

6515-01-341-8704 A tubular item having metal or plastic end connectors for connecting to a CATHETER, CARDIOVASCULAR.

Part Alternates: DPT9.5-180-P-FM, DPT95180PFM, F91E165, 91-5-21-261 DE , 91521261DE, 6515-01-341-8704, 01-341-8704, 6515013418704, 013418704

Medical, Dental, and Veterinary Equipment and Supplies | Medical and Surgical Instruments, Equipment, and Supplies

Supply Group (FSG) NSN Assign. NIIN
65 11 JUL 1991 01-341-8704

Drawings & Photos | NSN 6515-01-341-8704


Cross Reference | NSN 6515-01-341-8704

Part Number Cage Code Manufacturer
91-5-21-261 DE 66735 AIR FORCE MEDICAL LOGISTICS OFFICE
DPT9.5-180-P-FM 29317 COOK INCORPORATED
F91E165 66735 AIR FORCE MEDICAL LOGISTICS OFFICE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6515-01-341-8704

Technical Data | NSN 6515-01-341-8704

Characteristic Specifications
DESIGN DESIGNATION AORTIC

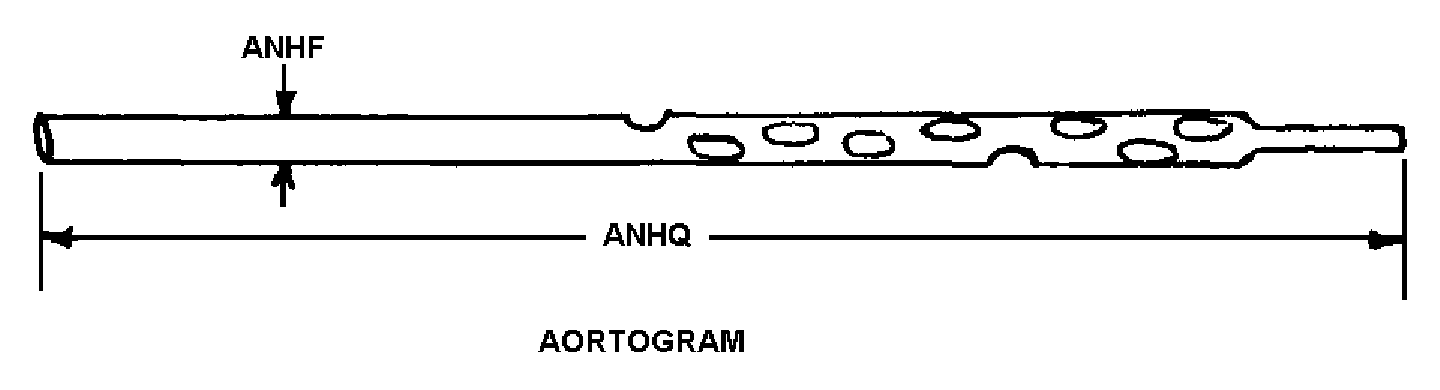

STYLE DESIGNATOR D22 AORTOGRAM
NOMINAL DIAMETER 9.500 FRENCH
CATHETER NOMINAL LENGTH 180.0 CENTIMETERS
INSIDE DIAMETER 1.700 INCHES NOMINAL
OUTSIDE DIAMETER ANY ACCEPTABLE
MATERIAL AND LOCATION PLASTIC, POLYETHYLENE OVERALL
TIP TYPE OPEN HEAD
CONNECTOR TYPE FEMALE TO MALE LUER LOCK
CORE FABRICATION METHOD ANY ACCEPTABLE
SPECIAL FEATURES 800PSI MAXIMUM INJECTION PRESSURE; PLASTIC FITTINGS; PEEL OPEN PACKAGE

Restrictions/Controls & Freight Information | NSN 6515-01-341-8704

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information

Management | NSN 6515-01-341-8704

Category Code Description
Materiel Category and Inventory ManagerC Medical/Dental Materiel
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group03Not-Potency-Dated
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
Acquisition Advice CodesLLOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesLLOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
