Product Details | CARDIOVASCULAR CATHETER

6515-01-325-2353 A disposable item designed to be used either intra-arterially and/or intravenously for delivering radiopaque media to selected sites in the vascular system as in angiography.

Part Alternates: PROFLO, PRO-FLO, 010306, 6515-01-325-2353, 01-325-2353, 6515013252353, 013252353

Medical, Dental, and Veterinary Equipment and Supplies | Medical and Surgical Instruments, Equipment, and Supplies

Supply Group (FSG) NSN Assign. NIIN
65 31 AUG 1990 01-325-2353

Drawings & Photos | NSN 6515-01-325-2353


Cross Reference | NSN 6515-01-325-2353

Part Number Cage Code Manufacturer
010306 5T522 BARD C R INC USCI SURGICAL PRODUCTS DIV
PRO-FLO 5T522 BARD C R INC USCI SURGICAL PRODUCTS DIV

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6515-01-325-2353

Technical Data | NSN 6515-01-325-2353

Characteristic Specifications
DESIGN DESIGNATION JUDKINS AND LEFT VENTRICLE

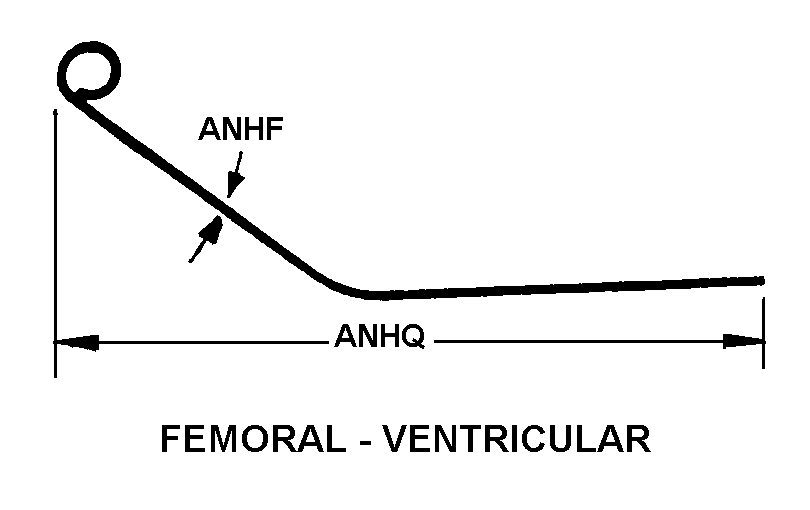

STYLE DESIGNATOR D27 FEMORAL-VENTRICULAR
NOMINAL DIAMETER 7.000 FRENCH
CATHETER NOMINAL LENGTH 110.000 CENTIMETERS
INSIDE DIAMETER 0.060 INCHES NOMINAL
MATERIAL AND LOCATION PLASTIC, POLYURETHANE OVERALL
TIP TYPE PIGTAIL AND TAPERED
CORE FABRICATION METHOD WOVEN
PATIENT SIZE DESIGNATION UNIVERSAL
UNIT PACKAGE QUANTITY 10
UNIT PACKAGE TYPE PACKAGE
SPECIAL FEATURES UNIQUE CONSTRUCTION ALLOWS SMOOTH PASSAGE ACROSS THE AORTIC VALVE; ARRANGEMENT OF DISTAL SIDE HOLES PERMITS DELIVERY OF LARGE BOLUSES OF DYE WITHOUT JETTING OR CATHETER RECOIL; 12 SIDE HOLES,OPEN END; 47CC PER SECOND MAXIUM FLOW RATE EQUIVALENT TO 1200 PSI; MAXIUM GUIDE WIRE ACCEPTED: 0.038 INCH (1.00MM)

Restrictions/Controls & Freight Information | NSN 6515-01-325-2353

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
