NSN 6515-01-322-3063 BF405148, F90D106 , 90-4-26-55 FS
Product Details | HYPODERMIC NEEDLE
6515-01-322-3063 A cannulated item used for aspirating or injecting fluids into body tissue.
Part Alternates: BF405148, F90D106 , 90-4-26-55 FS , 9042655FS, 405148, 6515-01-322-3063, 01-322-3063, 6515013223063, 013223063
Medical, Dental, and Veterinary Equipment and Supplies | Medical and Surgical Instruments, Equipment, and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | 03 JUL 1990 | 01-322-3063 | 07252 ( NEEDLE, HYPODERMIC ) |

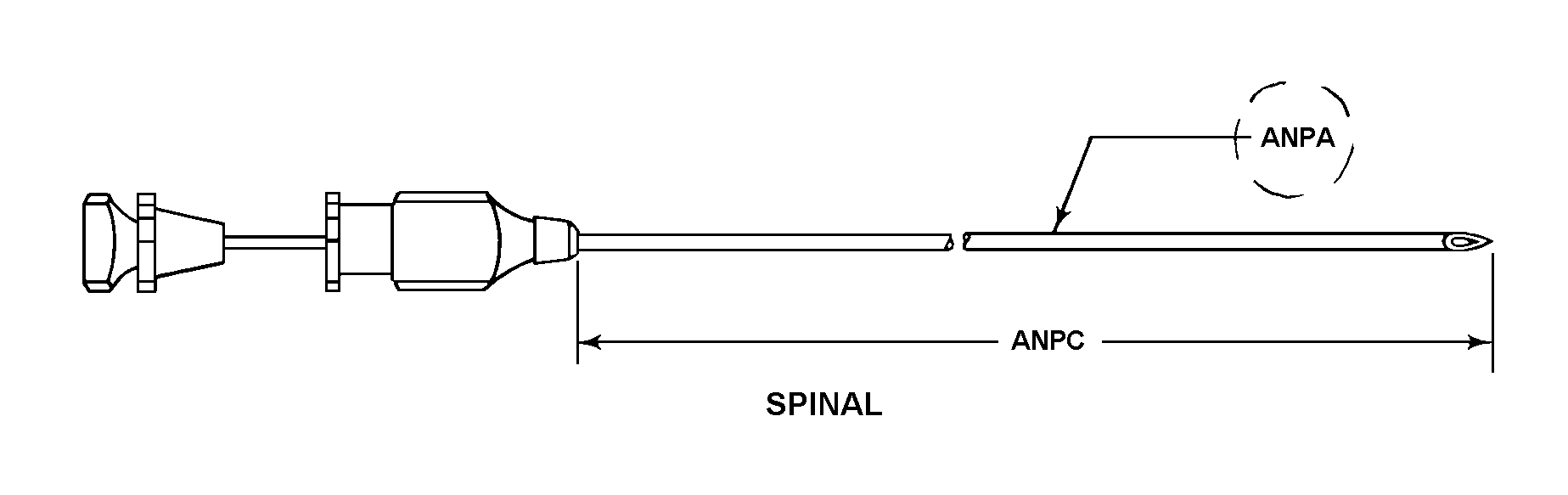

Drawings & Photos | NSN 6515-01-322-3063
Cross Reference | NSN 6515-01-322-3063
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 405148 | 06531 | BECTON, DICKINSON AND COMPANY |
| 405148 | 67826 | BECTON-DICKINSON DIV BECTON DICKINSON AND CO |
| 405148 | FAAC6 | BECTON DICKINSON FRANCE |
| 90-4-26-55 FS | 66735 | AIR FORCE MEDICAL LOGISTICS OFFICE |
| BF405148 | 07TA6 | CARDINAL HEALTH 200, LLC |
| F90D106 | 66735 | AIR FORCE MEDICAL LOGISTICS OFFICE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6515-01-322-3063
Related Products | NSN 6515-01-322-3063
Technical Data | NSN 6515-01-322-3063
| Characteristic | Specifications |
|---|---|
| DESIGN DESIGNATION | SPINAL |
| STYLE DESIGNATOR | C20 SPINAL |
| CANNULA OUTSIDE DIAMETER | 0.712 MILLIMETERS NOMINAL |
| CANNULA LENGTH | 5.000 INCHES NOMINAL |
| MATERIAL AND LOCATION | STEEL, STAINLESS OVERALL |
| NEEDLE CANNULA GAGE DESIGNATION AND LOCATION | 22 GAGE OVERALL |
| HUB TYPE | LUER LOCK |
| CANNULA WALL THICKNESS DESIGNATION | REGULAR |
| UNIT PACKAGE QUANTITY | 10 |
| UNIT PACKAGE TYPE | PACKAGE |
| SPECIAL FEATURES | TINTED TRANSLUCENT HUB; QUINCKE POINT SPREADS RATHER THEN CUTS LONGITUDINAL DURAL FIBERS |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | NEEDLE HYPODERMIC C20 SPINAL 22 GAGE X 5" LUER LOCK HUB STER DISP 10S |
Restrictions/Controls & Freight Information | NSN 6515-01-322-3063
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 139640 | NEEDLES NOI IN BBLS/BXS |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 534 | unknown |
| Originating Activity Code | KX | Defense Supply Center Philadelphia Philiadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6515-01-322-3063
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | C | Medical/Dental Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 03 | Not-Potency-Dated |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PG : Package |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PG : Package |
