NSN 6515-01-262-7426 214.054, 214.54, 214054
Product Details | BONE SCREW
6515-01-262-7426 A cylindrical rod incised with one or more helical or advancing spiral threads with smooth surfaces free from nicks, dents, burrs, and scratches suitable for use in orthopedic surgery and fabricated from implant-quality corrosion resisting material which is inert and biocompatible with human bones, tissues and internal chemistry.
Part Alternates: 214.054, 214.54, 214054, 21454, 6515-01-262-7426, 01-262-7426, 6515012627426, 012627426
Medical, Dental, and Veterinary Equipment and Supplies | Medical and Surgical Instruments, Equipment, and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | 03 SEP 1987 | 01-262-7426 | 06669 ( SCREW, BONE ) |
Drawings & Photos | NSN 6515-01-262-7426
Demand History | NSN 6515-01-262-7426
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6515-01-262-7426 | 2017-08-31 | 2 | DIBBS |
| 6515-01-262-7426 | 2017-08-07 | 1 | DIBBS |
| 6515-01-262-7426 | 2017-08-03 | 1 | DIBBS |
| 6515-01-262-7426 | 2017-07-23 | 1 | DIBBS |
| 21454 | 2016-05-03 | 1 | Canada |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6515-01-262-7426
Related Products | NSN 6515-01-262-7426
Technical Data | NSN 6515-01-262-7426
| Characteristic | Specifications |
|---|---|
| OUTSIDE THREAD DIAMETER | 4.5 MILLIMETERS NOMINAL |
| MATERIAL AND LOCATION | STEEL, CORROSION RESISTING OVERALL |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |

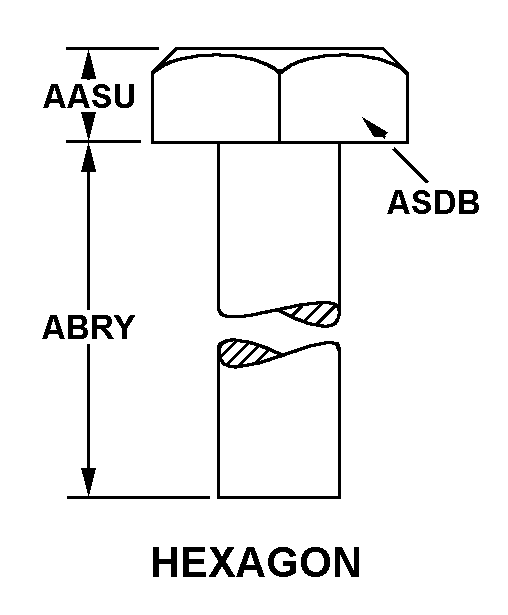

| HEAD STYLE | B47 HEXAGON |
| LENGTH | 54.0 MILLIMETERS NOMINAL |
| WIDTH ACROSS FLATS | 3.5 MILLIMETERS NOMINAL |

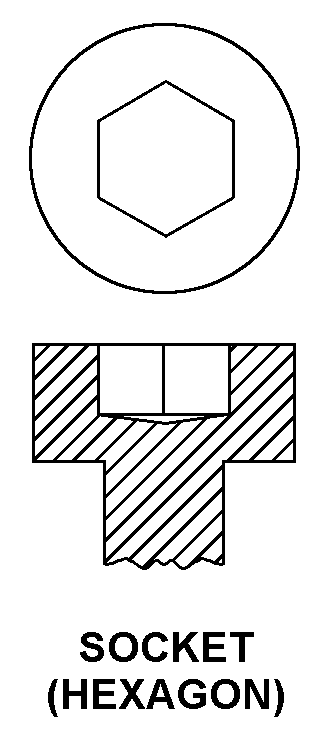

| RECESSED DRIVE STYLE | C5 SOCKET |
| POINT TYPE | TWIST DRILL |
| SPECIAL FEATURES | LARGE FRAGMENT; DIA. CORE 3.0MM; DIA. HEAD 8.0MM; CORRECT DRILL BIT FOR THREADED HOLE 3.2MM; GLIDING HOLE 4.5MM; 4.5MM CORTEX TYPE |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SCREW BONE 54MM L 4.5MM OD B47 HEXAGON NOT CASEHARD CRS |
Restrictions/Controls & Freight Information | NSN 6515-01-262-7426
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 056680 | DENTAL/MEDICAL/SURG INST R MACHINE |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 534 | unknown |
| Originating Activity Code | KX | Defense Supply Center Philadelphia Philiadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6515-01-262-7426
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | C | Medical/Dental Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 03 | Not-Potency-Dated |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
