NSN 6515-01-174-2345 GU1801105, GU1801-105, 01-174-2345
Product Details | URETERAL CATHETER
6515-01-174-2345 An item designed for insertion through the urinary tract into the section between the bladder and the kidney to allow drainage, irrigation, observation, and application of medication. For items designed to permit drainage of the bladder, or the tract leading up to the bladder, see CATHETER, URETHRAL. For items designed to be inserted through an incision or wound, see DRAIN, SURGICAL and TUBE, (as modified).
Part Alternates: GU1801105, GU1801-105, 6515-01-174-2345, 01-174-2345, 6515011742345, 011742345
Medical, Dental, and Veterinary Equipment and Supplies | Medical and Surgical Instruments, Equipment, and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | 16-MAR-84 | 01-174-2345 | 08478 ( CATHETER, URETERAL ) |

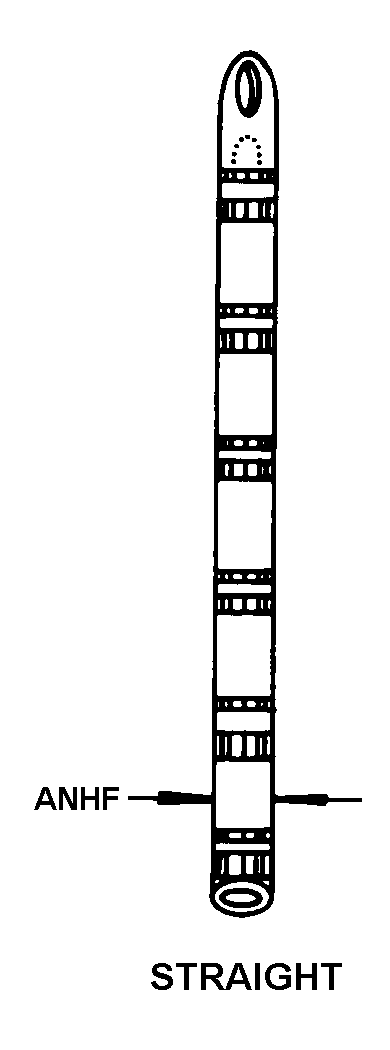

Drawings & Photos | NSN 6515-01-174-2345
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6515-01-174-2345
Technical Data | NSN 6515-01-174-2345
| Characteristic | Specifications |
|---|---|
| DESIGN DESIGNATION | URINARY DRAINAGE |
| STYLE DESIGNATOR | A6 STRAIGHT |
| NOMINAL DIAMETER | 5.000 FRENCH |
| MATERIAL AND LOCATION | PLASTIC, POLYETHYLENE OVERALL OR PLASTIC, POLYURETHANE OVERALL OR NYLON OVERALL |
| TIP TYPE | WHISTLE |
| CORE FABRICATION METHOD | ANY ACCEPTABLE |
| FEATURES PROVIDED | DEPTH GRADUATION MARKINGS AND DISPOSABLE AND STERILE AND X-RAY OPACITY |
| SPECIAL FEATURES | DOUBLE-EYED; 27-1/2 IN. LG.; LEFT SIDE CODED GREEN; RIGHT SIDE RED; UNIT QUANTITY 12 PAIR; LEFT CATHETER IS INDIVIDUALLY WRAPPED; RIGHT CATHETER IS INDIVIDUALLY WRAPPED; THE PAIR IS IN A SINGLE PACKAGE |
| III SUPPLEMENTARY FEATURES | D-DAY ITEM FOR DOD |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | CATHETER URETERAL A6 STR 5FR LEFT GREEN RIGHT RED STER DISP 12PR |
Restrictions/Controls & Freight Information | NSN 6515-01-174-2345
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
