NSN 6515-01-054-1130 CATHLON IV PLACEMENT UNIT, CATHLONIVPLACEMENTUNIT, 4402
Product Details | INTRAVENOUS CATHETER AND NEEDLE UNIT
6515-01-054-1130 An item consisting of a cannulated needle with an intravenous catheter, and it may contain additional components, such as a hypodermic syringe, needle guard, flow control plug, and the like. The catheter is inserted into the vein by way of the needle's puncture, and is left in position for continued intravenous administration after the needle is withdrawn. A syringe, when supplied, is used to better control insertion of the catheter needle unit or for blood aspiration.
Part Alternates: CATHLON IV PLACEMENT UNIT, CATHLONIVPLACEMENTUNIT, 4402, 4452, 6515-01-054-1130, 01-054-1130, 6515010541130, 010541130
Medical, Dental, and Veterinary Equipment and Supplies | Medical and Surgical Instruments, Equipment, and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | 14-JAN-78 | 01-054-1130 | 29491 ( CATHETER AND NEEDLE UNIT, INTRAVENOUS ) |

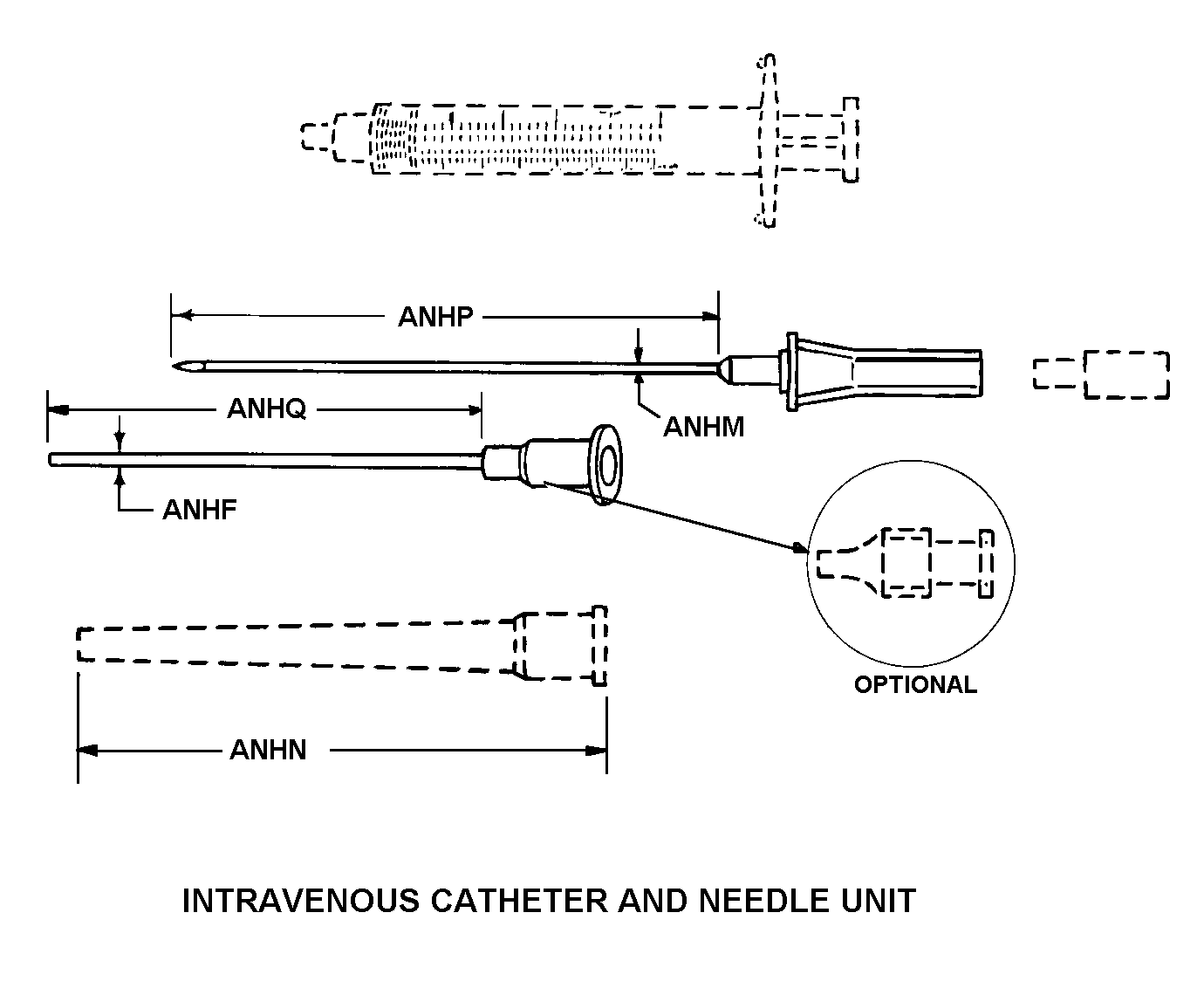

Drawings & Photos | NSN 6515-01-054-1130
Demand History | NSN 6515-01-054-1130
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4452 | 2012-06-166 | 200 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6515-01-054-1130
Technical Data | NSN 6515-01-054-1130
| Characteristic | Specifications |
|---|---|
| DESIGN DESIGNATION | INTRAVENOUS |
| STYLE DESIGNATOR | D12 INTRAVENOUS CATHETER AND NEEDLE UNIT |
| NOMINAL DIAMETER | 16.000 GAGE |
| NEEDLE NOMINAL DIAMETER | 16.000 GAGE |
| NEEDLE NOMINAL LENGTH | 2.625 INCHES |
| CATHETER NOMINAL LENGTH | 2.500 INCHES |
| MATERIAL AND LOCATION | METAL HUB AND PLASTIC, POLYTETRAFLUOROETHYLENE CATHETER STEEL, CORROSION RESISTING NEEDLE |
| TIP TYPE | BEVELED |
| CONNECTOR TYPE | LUER LOCK HUB |
| CORE FABRICATION METHOD | ANY ACCEPTABLE |
| SPECIAL FEATURES | MICRO-VENTED PLUG,FLASK CHAMBER,COLOR CODED; UNIT PKG QTY 200 |
| III UNIT OF ISSUE WEIGHT | 2.00 POUNDS |
| III UNIT OF ISSUE CUBE | 0.340 CUBIC FEET |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | CATHETER & NDL UNIT D12 IV 16GAX2.50" CATH 16GAX2.625" NDL 200S |
Restrictions/Controls & Freight Information | NSN 6515-01-054-1130
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | J | PILFERAGE - PILFERAGE CONTROLS MAY BE DESIGNATED BY THE CODING ACTIVITY TO ITEMS CODED U (UNCLASSIFIED) BY RECORDING THE ITEM TO J./  |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
