Product Details | SUTURE NEEDLE

6515-00-680-2154 A surgical item designed for use with a suture to transfix and stitch tissue of wounds and blood vessels.

Part Alternates: GGN211, 6515-00-680-2154, 00-680-2154, 6515006802154, 006802154

Medical, Dental, and Veterinary Equipment and Supplies | Medical and Surgical Instruments, Equipment, and Supplies

Supply Group (FSG) NSN Assign. NIIN
65 01 JAN 1963 00-680-2154

Drawings & Photos | NSN 6515-00-680-2154


Cross Reference | NSN 6515-00-680-2154

Part Number Cage Code Manufacturer
GGN211 81348 FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6515-00-680-2154

Technical Data | NSN 6515-00-680-2154

Characteristic Specifications
NEEDLE DESIGN DESIGNATION FERGUSON

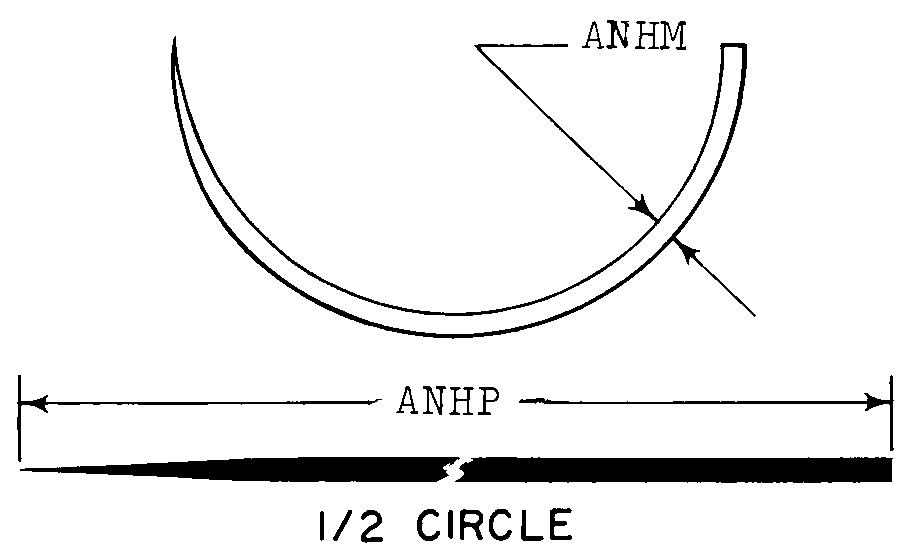

STYLE DESIGNATOR B3 1/2 CIRCLE
NEEDLE NOMINAL DIAMETER ANY ACCEPTABLE
NEEDLE NOMINAL LENGTH ANY ACCEPTABLE

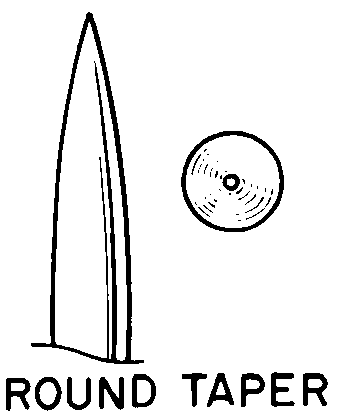

POINT STYLE C7 ROUND TAPER

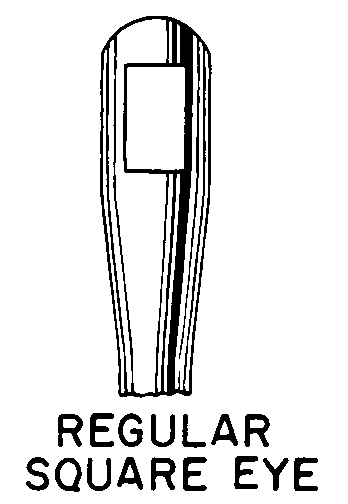

EYE STYLE A2 REGULAR SQUARE EYE
MATERIAL AND LOCATION STEEL, CORROSION RESISTING OVERALL
SURFACE TREATMENT AND LOCATION PASSIVATED OVERALL
STERILITY NONSTERILE
UNIT PACKAGE TYPE ENVELOPE
UNIT PACKAGE QUANTITY 6
SPECIAL FEATURES SIZE 14
NONDEFINITIVE SPEC/STD DATA XIII TYPE AND B CLASS AND POINT 3
DEPARTURE FROM CITED DOCUMENT AS MODIFIED BY SIZE
MANUFACTURERS CODE 81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE GGN211

Restrictions/Controls & Freight Information | NSN 6515-00-680-2154

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
