NSN 6515-00-350-3300 GGN196, 00-350-3300, 003503300
Product Details | HYPODERMIC NEEDLE
6515-00-350-3300 A cannulated item used for aspirating or injecting fluids into body tissue.
Part Alternates: GGN196, 6515-00-350-3300, 00-350-3300, 6515003503300, 003503300
Medical, Dental, and Veterinary Equipment and Supplies | Medical and Surgical Instruments, Equipment, and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | 01 JAN 1963 | 00-350-3300 | 07252 ( NEEDLE, HYPODERMIC ) |

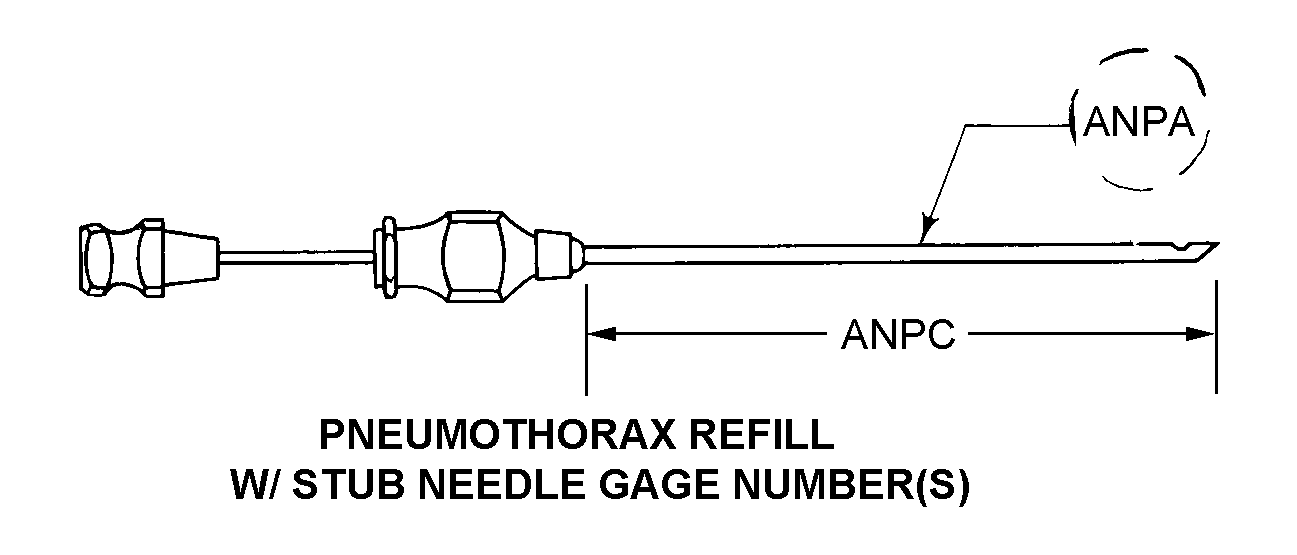

Drawings & Photos | NSN 6515-00-350-3300
Cross Reference | NSN 6515-00-350-3300
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGN196 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6515-00-350-3300
Related Products | NSN 6515-00-350-3300
Technical Data | NSN 6515-00-350-3300
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | C19A PNEUMOTHORAX REFILL |
| CANNULA LENGTH | 2.172 INCHES MINIMUM AND 2.328 INCHES MAXIMUM |
| MATERIAL AND LOCATION | STEEL, GG-I-526, CLASS 3, TYPE 304 CANNULA AND STEEL, GG-N-196, TYPE 1 CANNULA BRASS HUB BRASS STYLET KNOB AND STEEL, HIGH SILICON STYLET KNOB STEEL, GG-I-526, CLASS 3, TYPE 304 STYLET WIRE |
| SURFACE TREATMENT AND LOCATION | CHROMIUM PLATED HUB AND NICKEL PLATED HUB CHROMIUM-NICKEL PLATED, GG-I-526, CLASS 8 STYLET KNOB AND NICKEL, QQ-N-290, CLASS 1, TYPE 6 STYLET KNOB |
| NEEDLE CANNULA GAGE DESIGNATION AND LOCATION | 18 GAGE CANNULA |
| HUB TYPE | LUER LOCK |
| CANNULA WALL THICKNESS DESIGNATION | HEAVY |
| CANNULA BEVEL DESIGNATION | VERY SHORT |
| IMMEDIATE CONTAINER TYPE | RACK, CARDBOARD OR RACK, METAL OR RACK, PLASTIC |
| IMMEDIATE CONTAINER QUANTITY | 1 |
| QUANTITY WITHIN EACH IMMEDIATE CONTAINER | 1 |
| UNIT PACKAGE QUANTITY | 1 |
| UNIT PACKAGE TYPE | BAG |
| SPECIAL FEATURES | W/PLUGGED BEVEL END AND SIDE OPENING ON POINT |
| NONDEFINITIVE SPEC/STD DATA | 2 STYLE |
| DEPARTURE FROM CITED DOCUMENT | AS MODIFIED BY QUANTITY WITHIN EACH IMMEDIATE CONTAINER,AS MODIFIED BY UNIT PACKAGE TYPE,AS MODIFIED BY UNIT PACKAGE QUANTITY,AS MODIFIED BY SPECIAL FEATURES |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY CANNULA LENGTH,AS MODIFIED BY MATERIAL AND LOCATION,AS MODIFIED BY SURFACE TREATMENT AND LOCATION,AS MODIFIED BY CANNULA BEVEL DESIGNATION |
| III INTERMEDIATE PACKAGE QUANTITY | 12 |
| III EXTERIOR CONTAINER QUANTITY | 1728 |
| III UNIT OF ISSUE WEIGHT | 0.06 POUNDS |
| III EXTERIOR CONTAINER WEIGHT | 89.00 POUNDS |
| III UNIT OF ISSUE CUBE | 0.009 CUBIC FEET |
| III EXTERIOR CONTAINER CUBIC MEASURE | 6.00 CUBIC FEET |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | NEEDLE HYPODERMIC C19A PNEUMOTHORAX REFILL 2.172-2.328" NONSTER |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | GGN196 |
Restrictions/Controls & Freight Information | NSN 6515-00-350-3300
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 139640 | NEEDLES NOI IN BBLS/BXS |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 651 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6515-00-350-3300
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | C | Medical/Dental Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 03 | Not-Potency-Dated |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | J | PILFERAGE - PILFERAGE CONTROLS MAY BE DESIGNATED BY THE CODING ACTIVITY TO ITEMS CODED U (UNCLASSIFIED) BY RECORDING THE ITEM TO J. |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | J | PILFERAGE - PILFERAGE CONTROLS MAY BE DESIGNATED BY THE CODING ACTIVITY TO ITEMS CODED U (UNCLASSIFIED) BY RECORDING THE ITEM TO J. |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
