Product Details | SURGICAL STOMACH TUBE

6515-00-227-7687 An elastic, hollow cylinder, approximately 60 inches long, having a relatively heavy and smoothly finished wall. The item has end and side openings at the outlet end and a funnel at the opposite end. The tube may have a rubber bulb attached at the medial section. The item is used for feeding and evacuating the contents of the stomach.

Part Alternates: 1712, 6515-00-227-7687, 00-227-7687, 6515002277687, 002277687

Medical, Dental, and Veterinary Equipment and Supplies | Medical and Surgical Instruments, Equipment, and Supplies

Supply Group (FSG) NSN Assign. NIIN
65 20 MAY 1973 00-227-7687

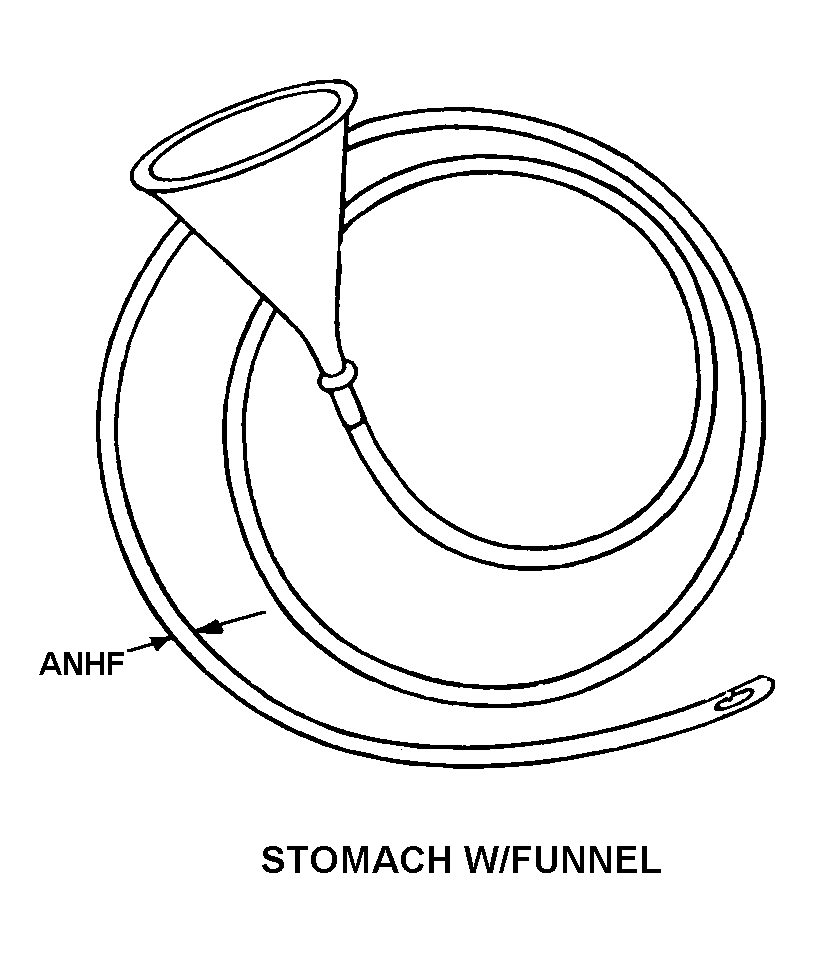

Drawings & Photos | NSN 6515-00-227-7687


Cross Reference | NSN 6515-00-227-7687

Part Number Cage Code Manufacturer
1712 13120 C. R. BARD, INC. DIV C.R. BARD, INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6515-00-227-7687

Technical Data | NSN 6515-00-227-7687

Characteristic Specifications
DESIGN DESIGNATION LEVIN
STYLE DESIGNATOR E19 STOMACH WITH FUNNEL
NOMINAL DIAMETER 14.000 FRENCH
MATERIAL AND LOCATION PLASTIC OVERALL
SHAFT EYE QUANTITY 4
TIP TYPE CLOSED
CORE FABRICATION METHOD NOT WOVEN
SPECIAL FEATURES CASE OF 50

Restrictions/Controls & Freight Information | NSN 6515-00-227-7687

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
